M80-4C10405FC-02-PF5-00-000

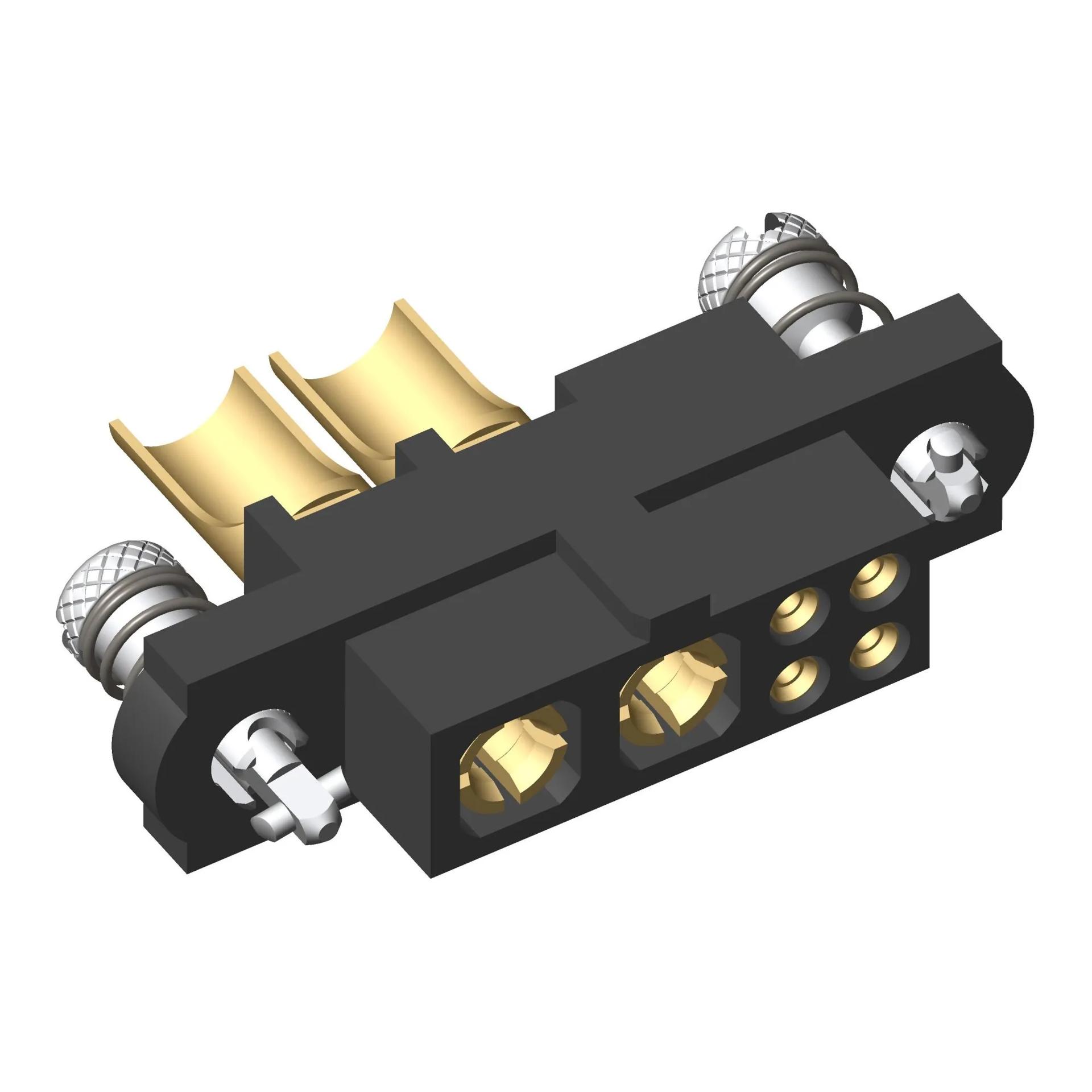

4+2 Pos. Female 24-28AWG+10AWG Cable Conn. Kit, 101Lok

2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek

  • Complete kit: housing with slotted head 101Lok bayonet-style fixings fitted, 4 x signal and 2 x power contacts loose.
  • Rated to 40A nominal, Power solder contact suitable for 10AWG. Small Bore signal contact suitable for 24 to 28AWG cable (Ø1.1mm max insulation). Gold finish on contact area and termination.
  • For complete pin numbering or pin out information, see Component Specification C005XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm/4.00mm (0.079"/0.157")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Solder + Crimp)

Cable Conductor Size:

24-28AWG + 10AWG

Mating Pin Size:

Ø0.5mm (signal)

Current Rating:

Signal = 3.3A max individual contact, 3A max simultaneous; Power = 40A max per contact

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

101Lok Bayonet Fixing with Slotted Head

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

Mixed

Number of Signal Contacts:

4

Number of Special (Power or Coax) Contacts:

2

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip + Brass shell (signal), Beryllium Copper (power)

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Single Pack

Dimensions

Individual Part Weight:

2.05g

Overall Dimensions (L x W x D) in mm:

22.00 x 5.50 x 13.70

Availability

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Currently made to order*

* Please request minimum quantities, lead times and pricing from an authorized distributor.

Questions & Answers Ask a Question

When I crimp this terminal, the conductor crimp is over the inspection hole – isn’t this a defect per IPC/WHMA-A-620?

We have a support article relating to this question, but essentially the hole you see is not designed to be an inspection hole. It is a plating hole, to allow the finish materials to reach the bottom of the crimp bore and help ensure performance. As such it is not relevant to IPC-A-620. Applying a crimp using the correct tools will indeed overlap the plating hole by 25 to 50%, but this is intended and expected. The design of the Datamate connector is so compact, there is no room to move the crimp area away from this hole without making the whole connector design larger.

Can I use a Metal Backshell (M80-945 or M80-946) with this connector?

Sorry no, I’m afraid the metal backshells are not compatible with Datamate Mix-Tek connectors fitted with 10AWG High Power contacts. You will need to specify an alternative contact from the standard power contacts (32x or M80-32x), one that uses 12 to 20AWG cable. Do please contact our Experts if you need assistance specifying an alternative.
