Home > M80-4C10405F1-02-325-00-000
Active

M80-4C10405F1-02-325-00-000

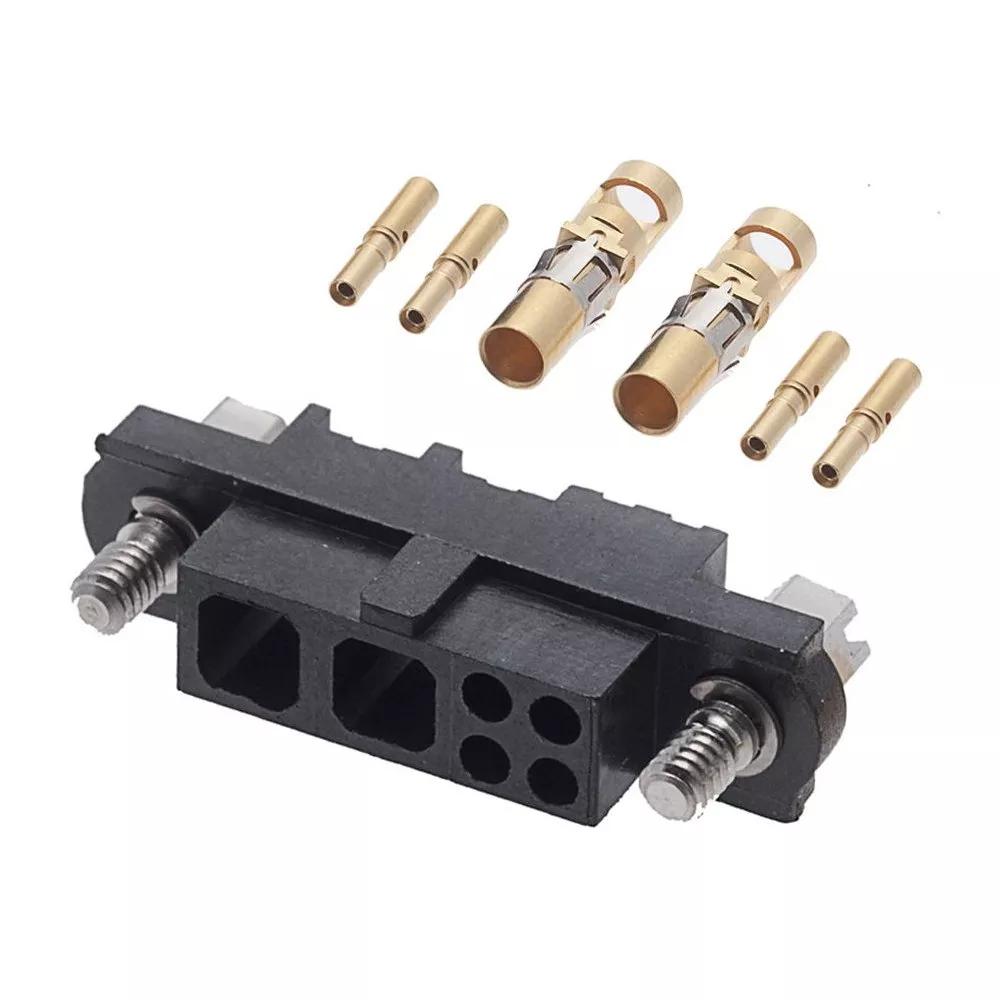

4+2 Pos. Female 24-28AWG+12AWG Cable Conn. Kit, Jackscrews

2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek

Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm/4.00mm (0.079"/0.157")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Solder + Crimp)

Cable Conductor Size:

24-28AWG + 12AWG

Mating Pin Size:

Ø0.5mm (signal)

Current Rating:

Signal = 3.3A max individual contact, 3A max simultaneous; Power = 20A max per contact

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Hex Slotted

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

Mixed

Number of Signal Contacts:

4

Number of Special (Power or Coax) Contacts:

2

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip + Brass shell (signal), Brass (power)

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Single Pack

Dimensions

Individual Part Weight:

2.109g

Overall Dimensions (L x W x D) in mm:

22.00 x 5.50 x 13.00

Thread Size:

M2

Availability

262 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 173
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 86
Distributor Farnell
Location Europe
Quantity (Updated Daily) 3

Questions & Answers Ask a Question

What torque value should be used for these jackscrews?

The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M80-4C10405F1-02-325-00-000.pdf

ZIP

M80-4C10405F1-02-325-00-000 CAD Model (ZIP file containing STP)

Download
PDF

C005XX Component Specification - Datamate M80 and M83 Series (2.00mm, 4.00mm pitch High-Reliability)

TEST REPORTS

PDF

Test Report HT001 - Datamate Mechanical Endurance - number of cycles, up to 10,000

PDF

Test Report HT002 - Datamate Voltage Proof, Voltage Flashover, and Insulation Resistance

PDF

Test Report HT004 - Datamate J-Tek Environmental - Vibration, Shock, Bump, Acceleration and other tests

PDF

Test Report HT005 - Datamate L-Tek Female Crimp Retention and Integrity (Pull-Off Force)

PDF

Test Report HT015 - Datamate Environmental (Vibration, Shock, Bump) - J-Tek and 101Lok

PDF

Test Report HT016 - Datamate L-Tek Female Crimp detailed Mechanical Forces and Contact Resistance

PDF

Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging

PDF

Test Report HT019 - Datamate Frequency Testing to EIA-364-108-2000(2007), USB2.0

PDF

Test Report HT020 - Datamate Mix-Tek Special Contacts - Environmental, Mechanical and Electrical

PDF

Test Report HT025 - Datamate L-Tek Environmental - Detailed Vibration, Shock and Bump

PDF

Test Report HT035 - Datamate Mix-Tek Power Connectors - Mechanical and Electrical

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (16-Oct-2019) - includes all material legislations

PDF

Material composition for M80-4C10405F1-02-325-00-000 product

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Datamate range, 2 & 4mm pitch High-Reliability

PDF

Product Training Module - Guide to Datamate Latches (L-Tek), Jackscrews (J-Tek) and 101Lok

PDF

Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

PDF

Product Training Module - Cable Products from Harwin

PDF

IS-01 - M22520/2-01 Hand Crimp Tool Instruction Sheet

PDF

IS-25 - Z80-280 Assembly Tool Instruction Sheet

OTHER DOWNLOADS

PDF

Catalog page - Datamate Power/Signal Female Cable Kit

PDF

Catalog page - Datamate Power/Signal Standard products

PDF

Catalog page - Datamate Mix-Tek Specification

PDF

Catalog page - Datamate Mix-Tek Pin Numbering, Mating Profiles

PDF

Catalog page - Datamate Introduction

XLSX

Distributor part numbers for suitable cables for Datamate, Gecko, M300 & Kona

PDF

Product Summary - Datamate Mix-Tek Off-The-Shelf Connectors
