Home > M80-4C10205F1-04-325-00-000
Active Product

M80-4C10205F1-04-325-00-000

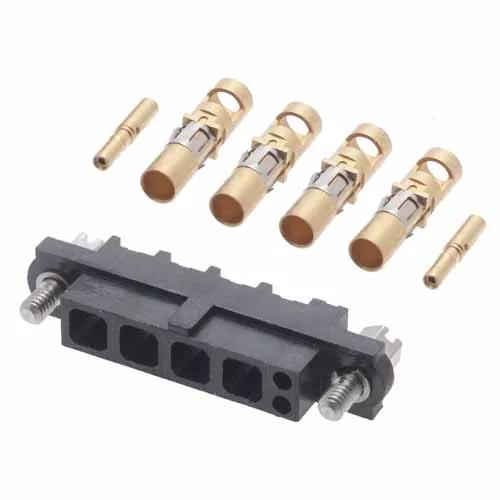

2+4 Pos. Female 24-28 AWG+12 AWG Cable Conn. Kit, Jackscrews

2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek

Add to Favorites

Loading…   Check availability

2 similar products View products

Traceparts account required

Product Description

Technical Details

Specification

Contact Pitch:

2.00mm/4.00mm (0.079"/0.157")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Solder + Crimp)

Cable Conductor Size:

24-28 AWG + 12 AWG

Mating Pin Size:

Ø0.5mm (signal)

Current Rating:

Signal = 3.3A max individual contact, 3A max simultaneous; Power = 20A max per contact

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Floating Jackscrew with Hex Slotted Head (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

Mixed

Number of Signal Contacts:

2

Number of Special (Power or Coax) Contacts:

4

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip + Brass shell (signal), Brass (power)

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Single Pack

Dimensions

Individual Part Weight:

2.91g

Overall Dimensions (L x W x D) in mm:

28.00 x 5.50 x 13.00

Thread Size:

M2

Frequently Asked Questions Ask a Question

When I crimp this terminal, the conductor crimp is over the inspection hole – isn’t this a defect per IPC/WHMA-A-620?

We have a support article relating to this question, but essentially the hole you see is not designed to be an inspection hole. It is a plating hole, to allow the finish materials to reach the bottom of the crimp bore and help ensure performance. As such it is not relevant to IPC-A-620. Applying a crimp using the correct tools will indeed overlap the plating hole by 25 to 50%, but this is intended and expected. The design of the Datamate connector is so compact, there is no room to move the crimp area away from this hole without making the whole connector design larger.

Was this answer useful?

What torque value should be used for these jackscrews?

The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF Download

INSTRUCTION SHEETS

OTHER DOWNLOADS
