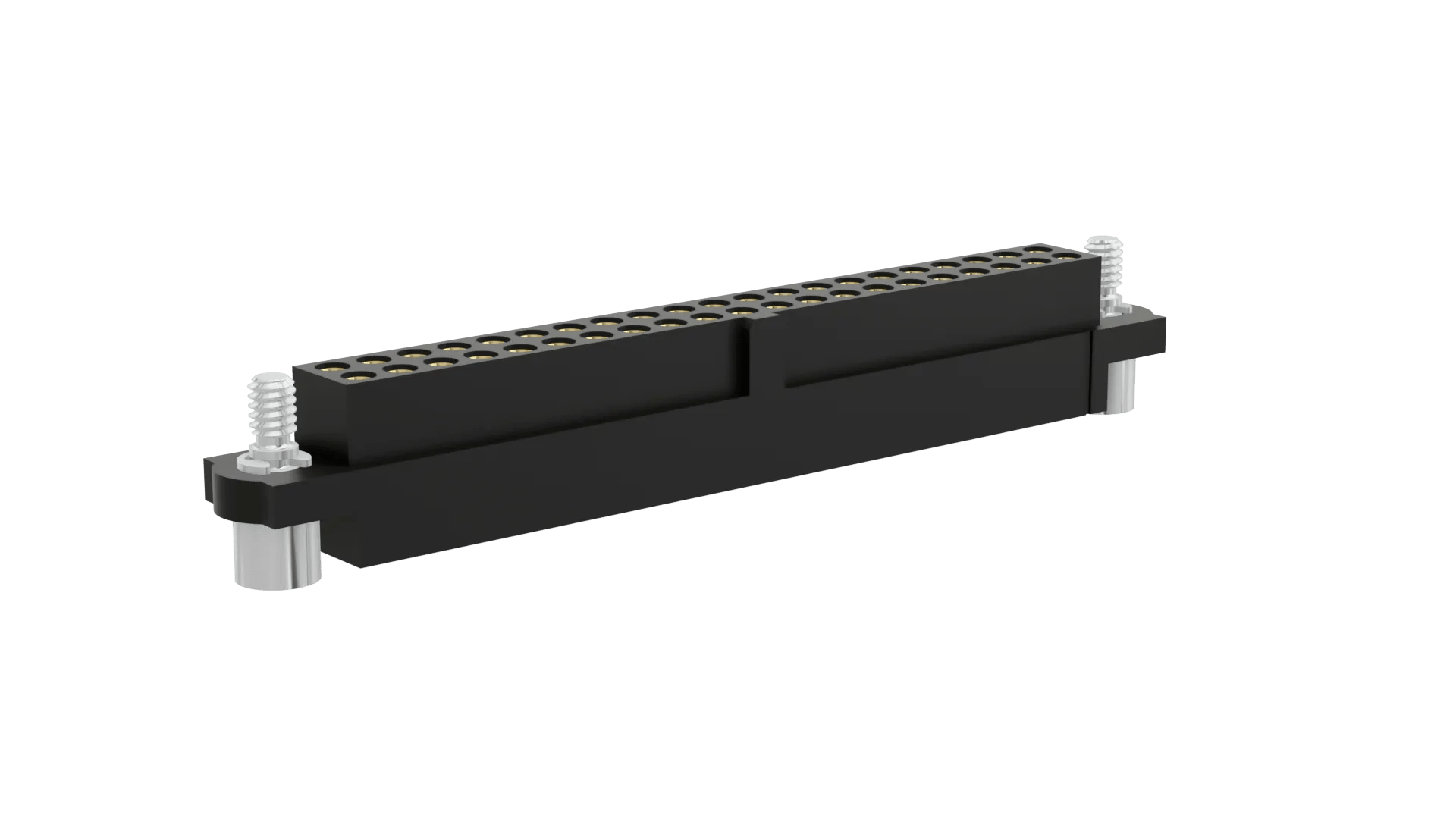

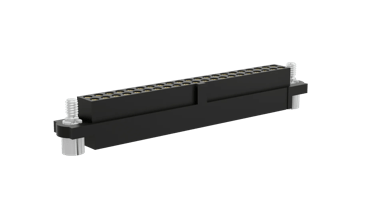

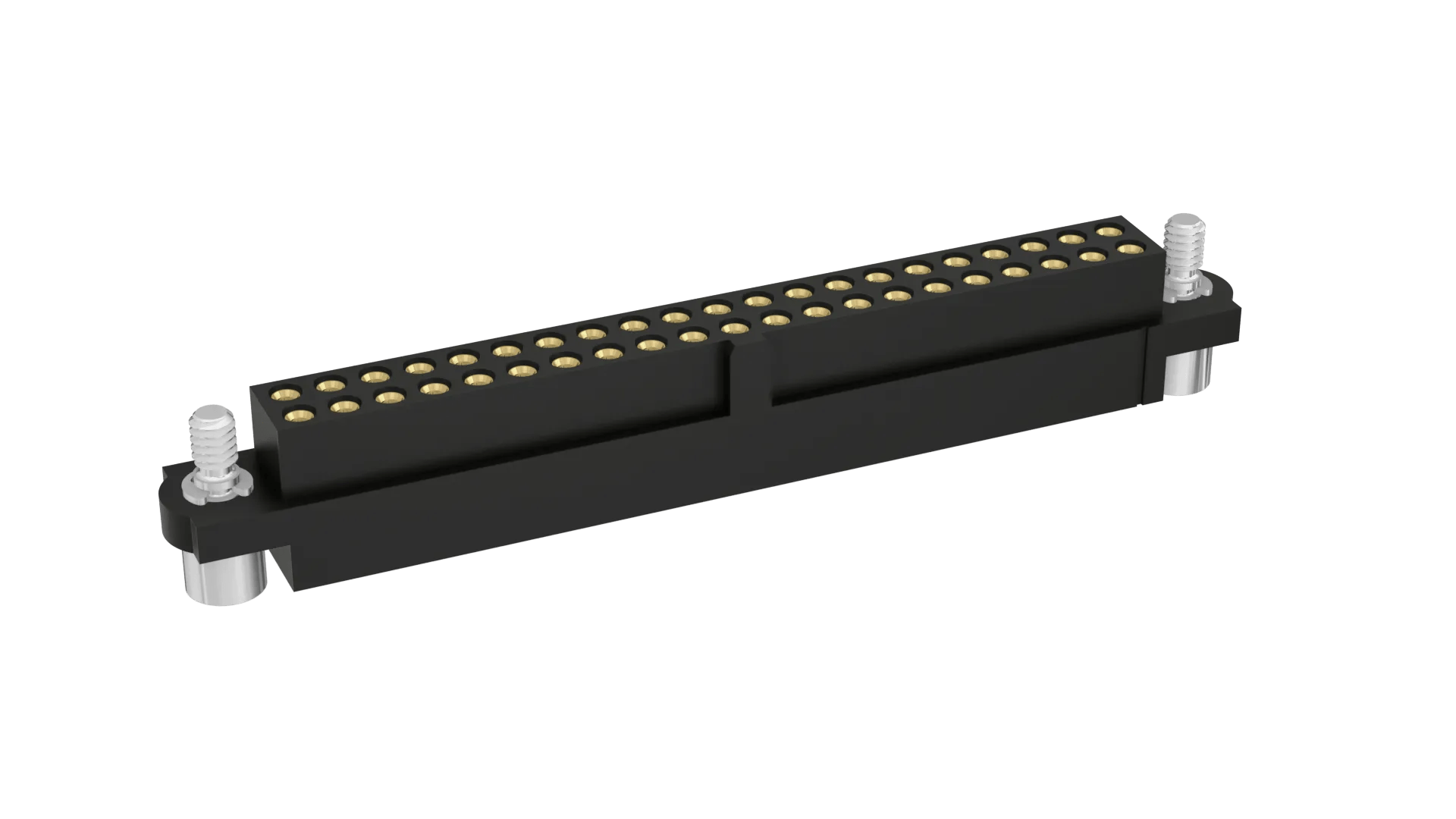

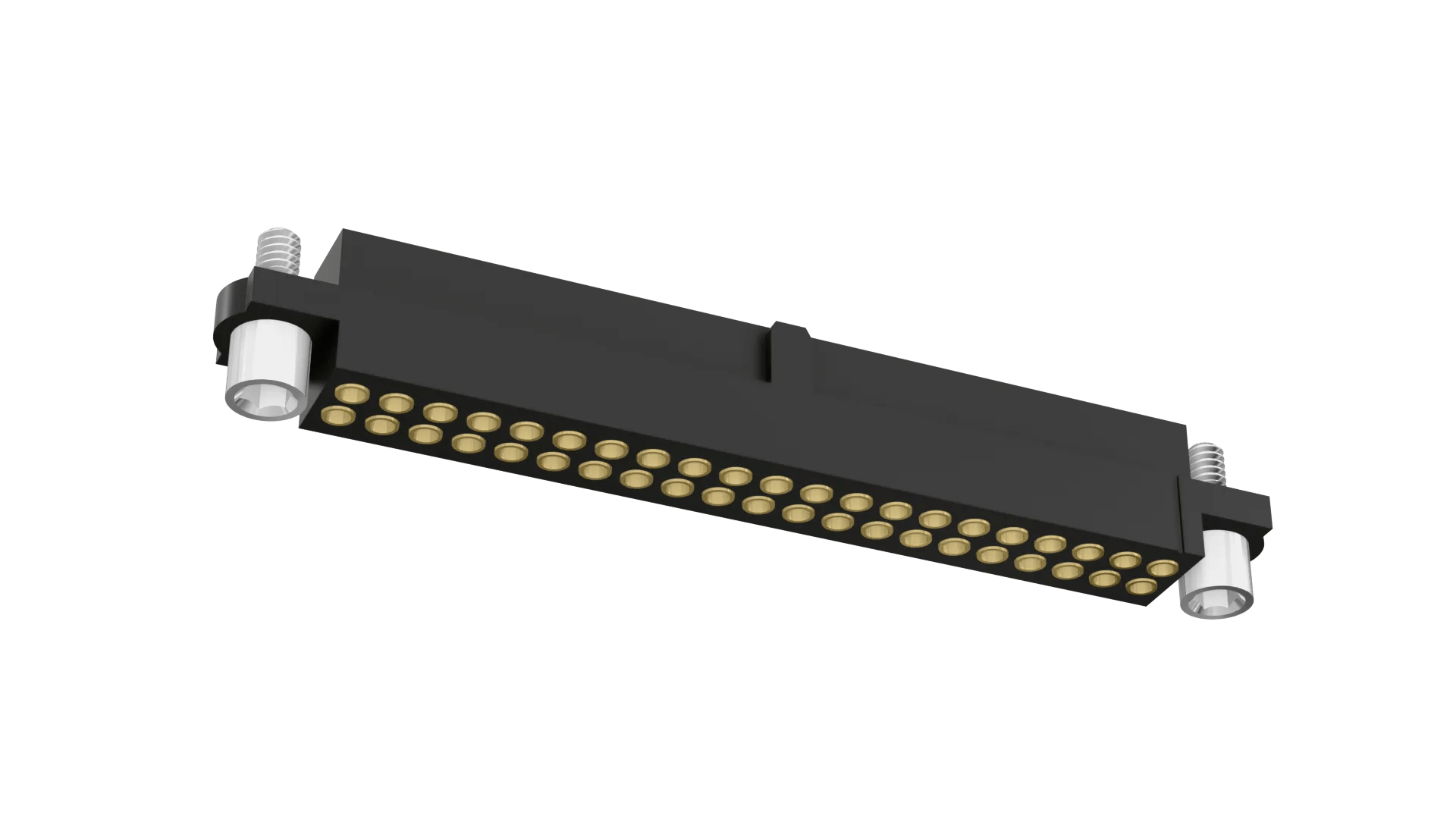

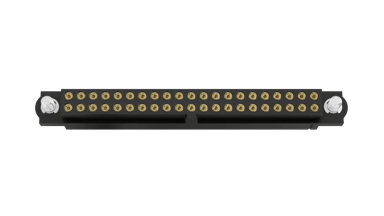

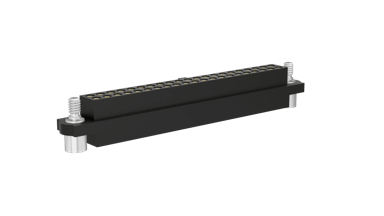

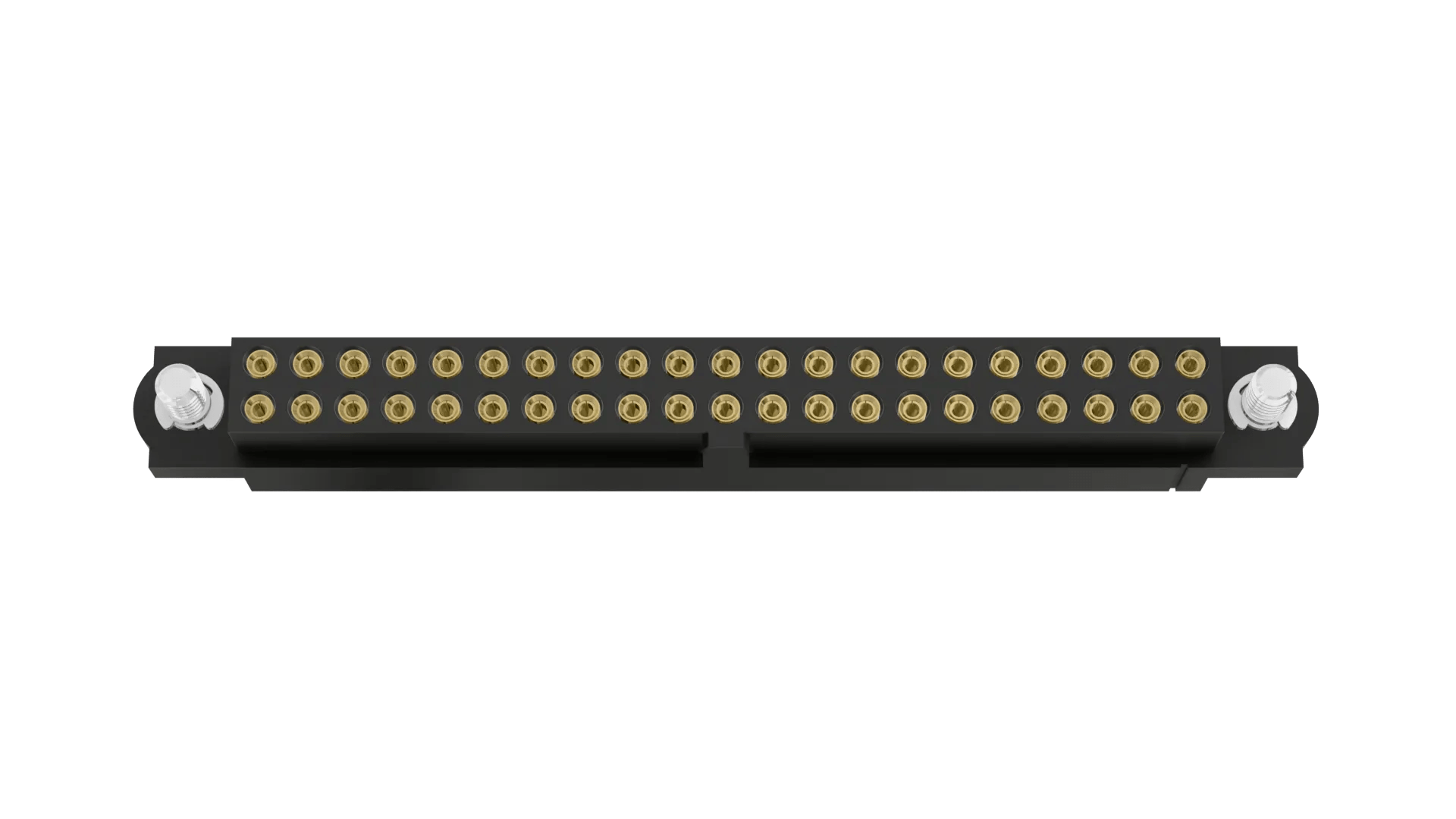

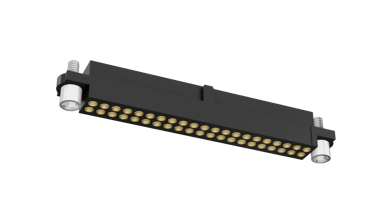

21+21 Pos. Female DIL 24-28AWG Cable Conn. Kit, Jackscrews
2.00mm Pitch High-Reliability Connector - Datamate J-Tek
- Complete kit: housing with hex socket head (Allen) jackscrews fitted, 42 x barrel crimp contacts loose – Gold finish on contact area and termination.
- Small Bore – suitable for 24 to 28AWG cable (Ø1.1mm max insulation). Spare contacts = M80-0130005.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
Cable Conductor Size:
Mating Pin Size:
3.3A max individual contact, 3A max simultaneous (25°C)
-55°C to +125°C
Style of Jackscrews:
Floating Jackscrew with Hex Socket Head (Standard Gender)
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
52.00 x 5.50 x 8.50
491 in stock
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
Questions & Answers Ask a Question
When I crimp this terminal, the conductor crimp is over the inspection hole – isn’t this a defect per IPC/WHMA-A-620?
We have a support article relating to this question, but essentially the hole you see is not designed to be an inspection hole. It is a plating hole, to allow the finish materials to reach the bottom of the crimp bore and help ensure performance. As such it is not relevant to IPC-A-620. Applying a crimp using the correct tools will indeed overlap the plating hole by 25 to 50%, but this is intended and expected. The design of the Datamate connector is so compact, there is no room to move the crimp area away from this hole without making the whole connector design larger.
What torque value should be used for these jackscrews?
The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).
