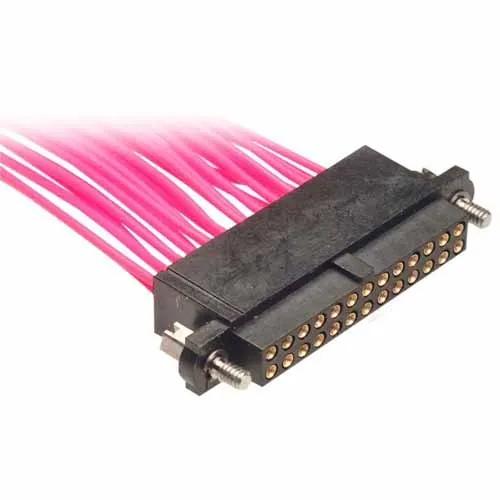

10+10 Pos. Female DIL 22AWG Cable Conn. Kit, Extended Wall, Jackscrews
2.00mm Pitch High-Reliability Connector - Datamate J-Tek
- Complete kit: housing with Hexagonal slotted jackscrews fitted, 20 x barrel crimp contacts loose – Gold finish on contact area and termination.
- Large Bore – suitable for 22AWG cable (Ø1.1mm max insulation). Spare contacts = M80-0110005. Extended rear wall (1mm depth) for backpotting.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
Cable Conductor Size:
Mating Pin Size:
3.3A max individual contact, 3A max simultaneous (25°C)
-55°C to +125°C
Style of Jackscrews:
Floating Jackscrew with Hex Slotted Head (Standard Gender)
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
30.00 x 6.50 x 8.90
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
* Please request minimum quantities, lead times and pricing from an authorized distributor.
Questions & Answers Ask a Question
When I crimp this terminal, the conductor crimp is over the inspection hole – isn’t this a defect per IPC/WHMA-A-620?
We have a support article relating to this question, but essentially the hole you see is not designed to be an inspection hole. It is a plating hole, to allow the finish materials to reach the bottom of the crimp bore and help ensure performance. As such it is not relevant to IPC-A-620. Applying a crimp using the correct tools will indeed overlap the plating hole by 25 to 50%, but this is intended and expected. The design of the Datamate connector is so compact, there is no room to move the crimp area away from this hole without making the whole connector design larger.
What potting material do you recommend using for backpotting this connector?
We currently recommend 3 materials that we have tried – although it’s very likely that many others are entirely suitable. Our primary recommendation, that we use on our complete cable assemblies, is Stycast 2651MM with Catalyst 9. We have also used Robnor Resins PX439XS/BK/250 and Epoxies Innovative Bonding Solutions 50-3122RBK. You can find more information on backpotting our connectors and links to the epoxy suppliers on our blog post What is Backpotting?
What torque value should be used for these jackscrews?
The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).
