M80-4610405

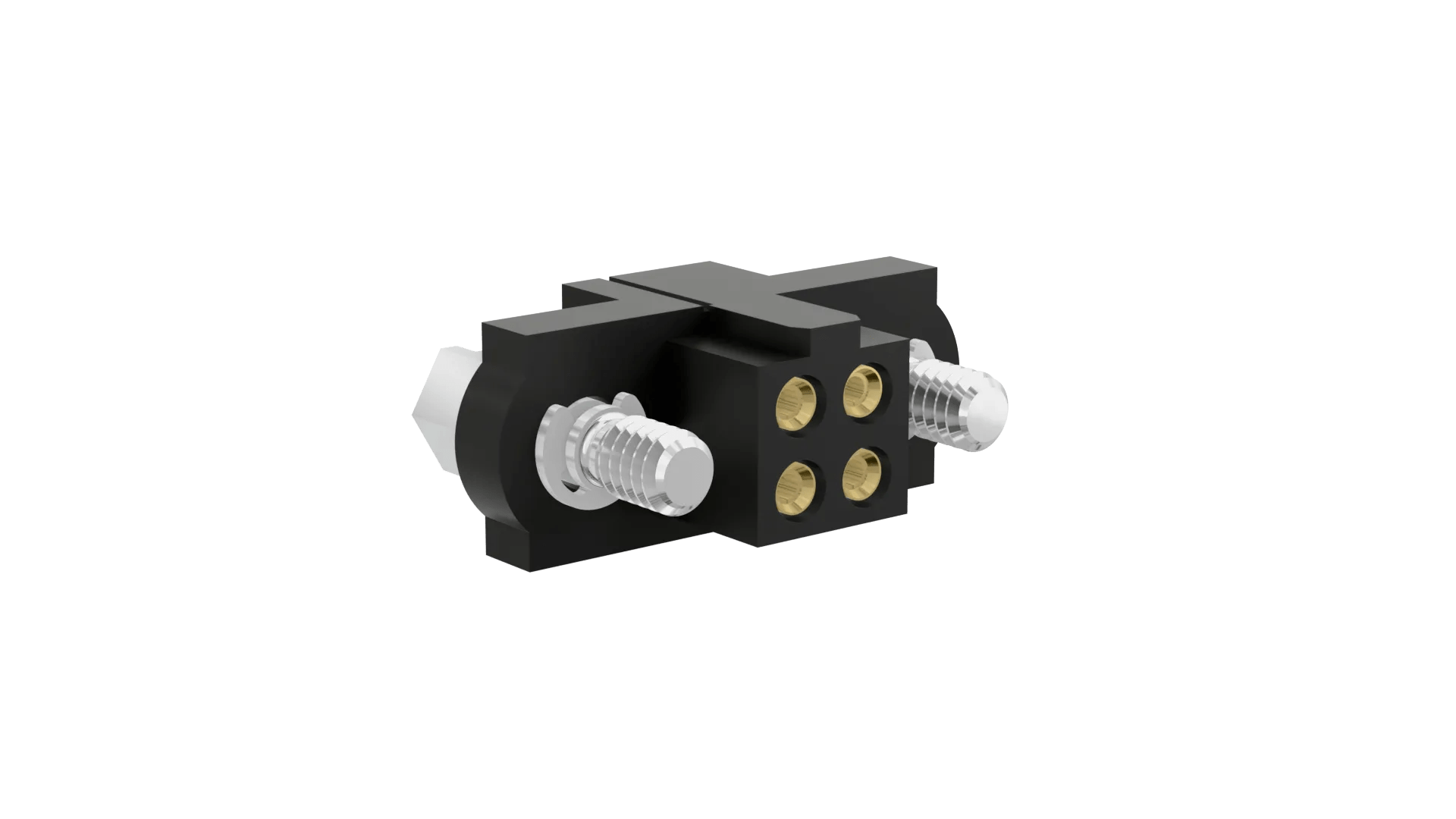

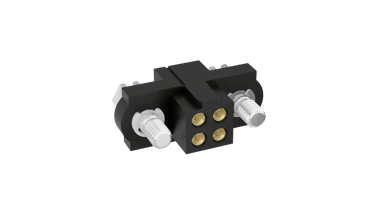

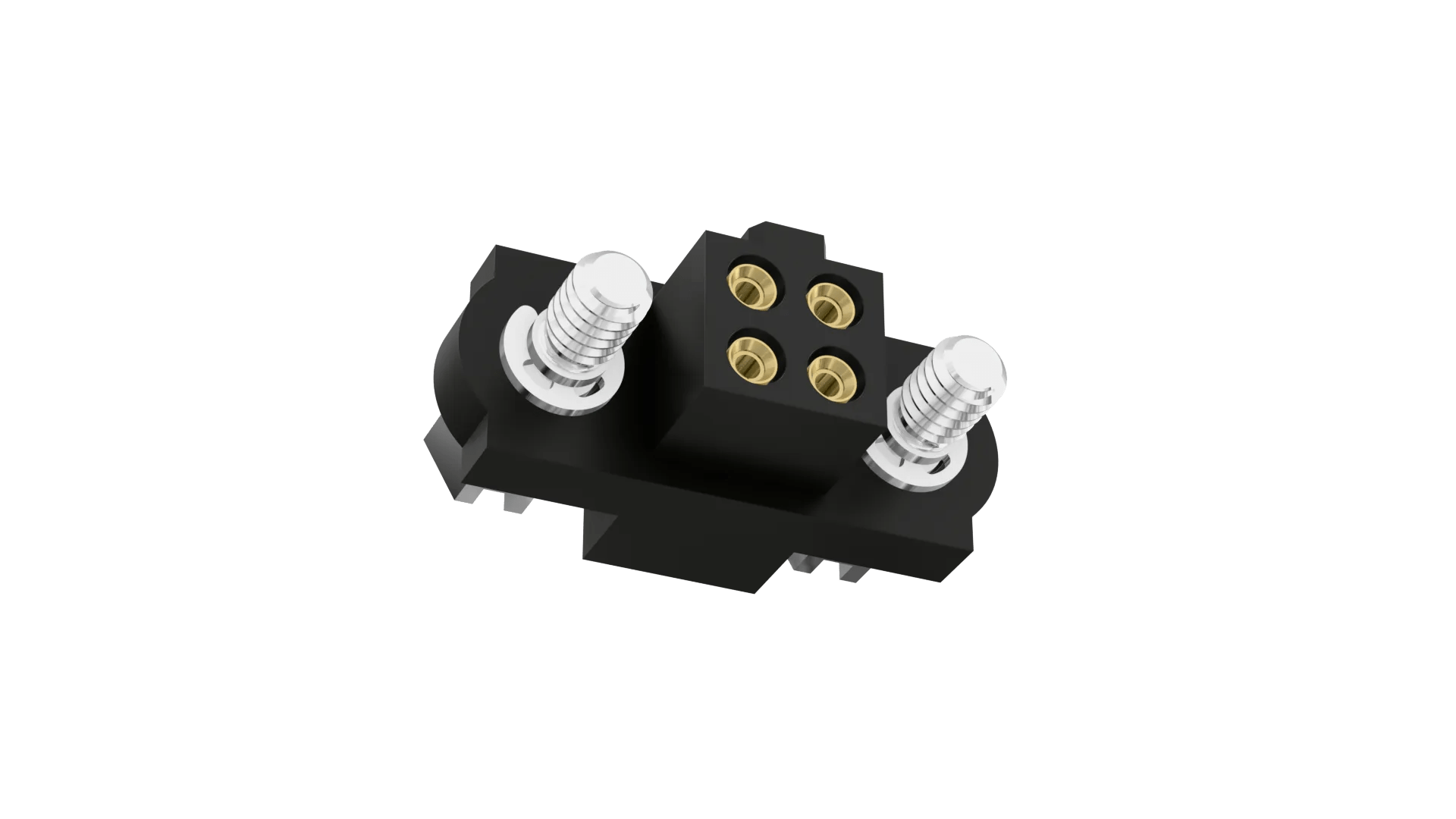

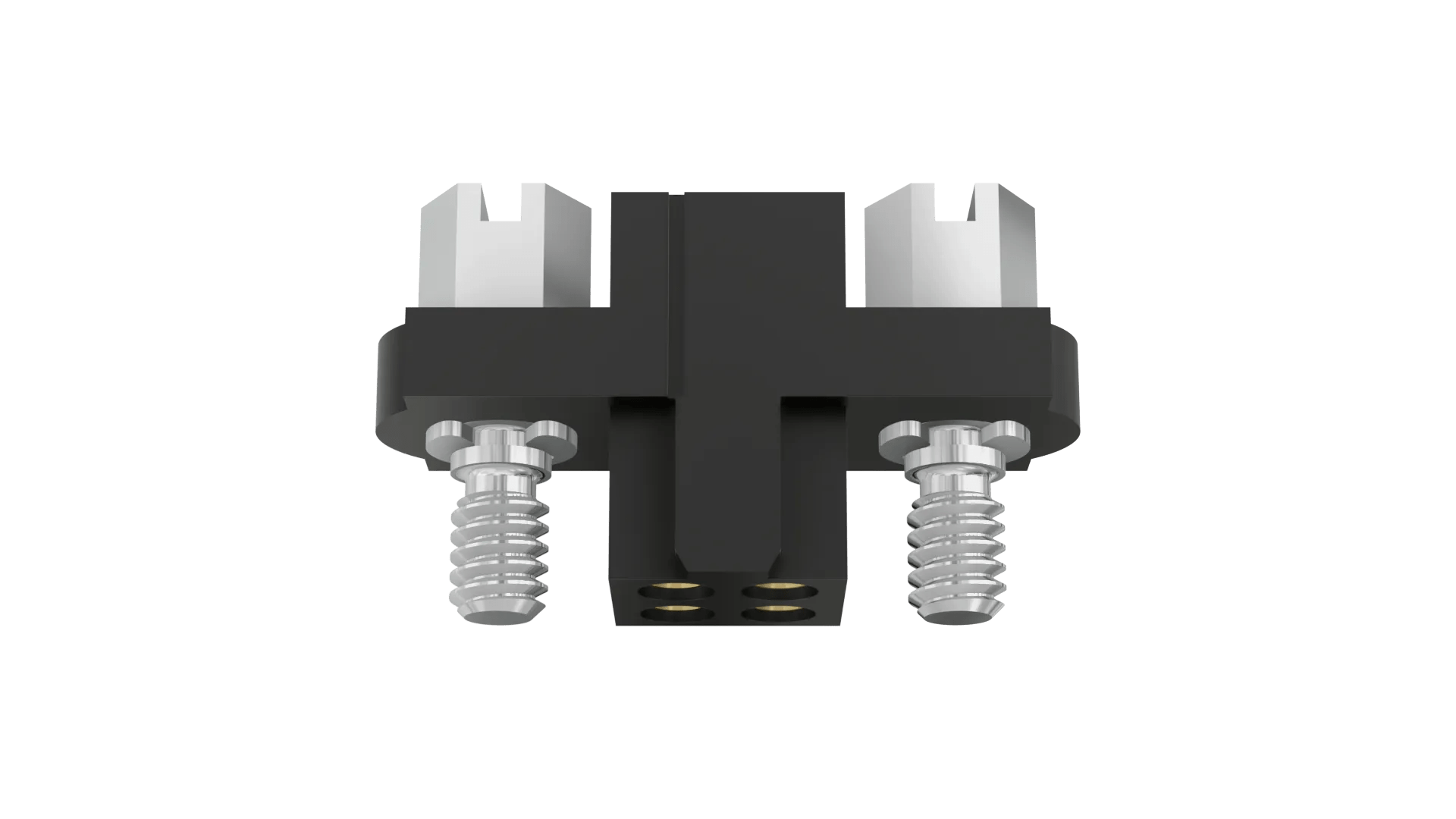

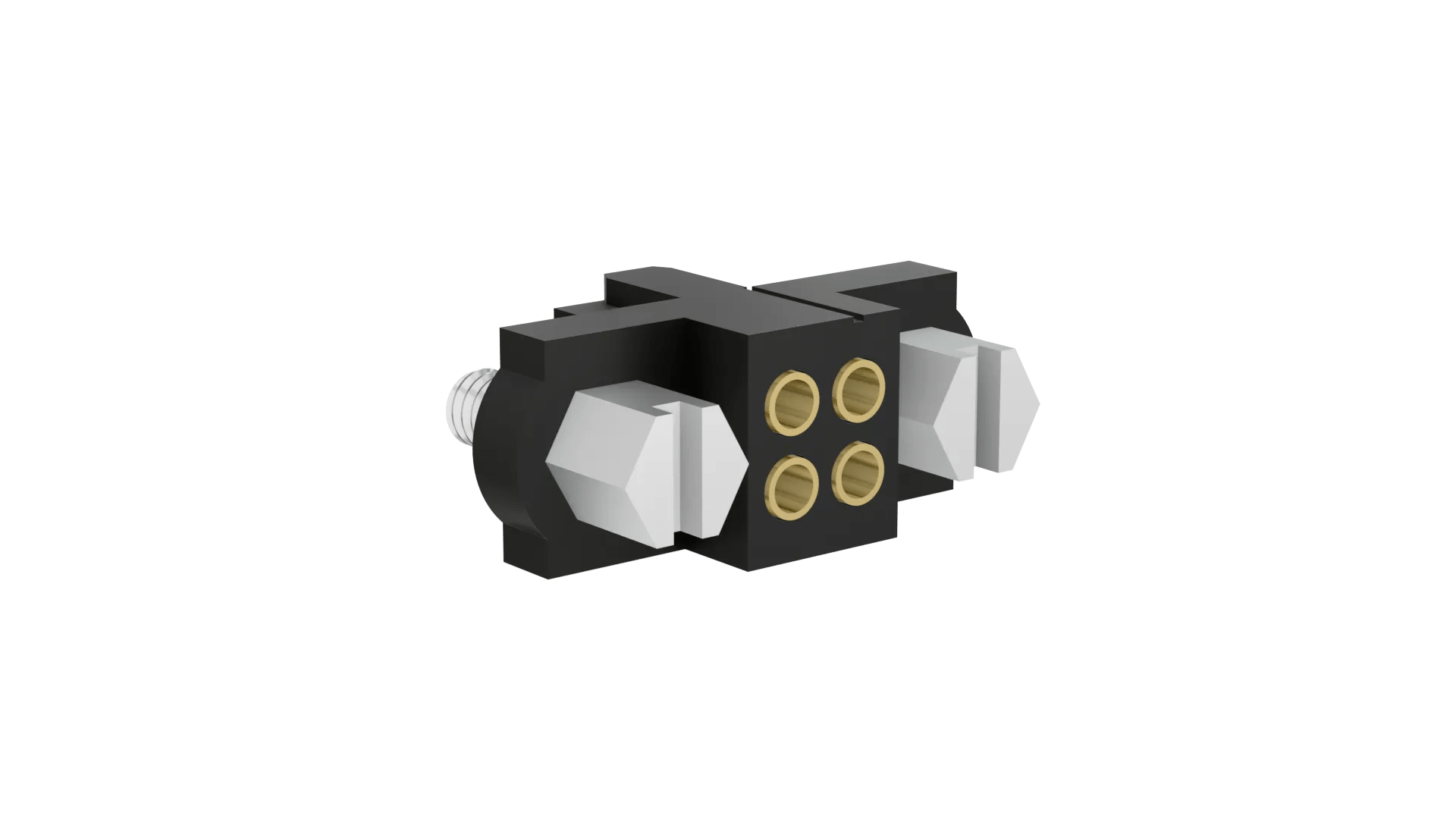

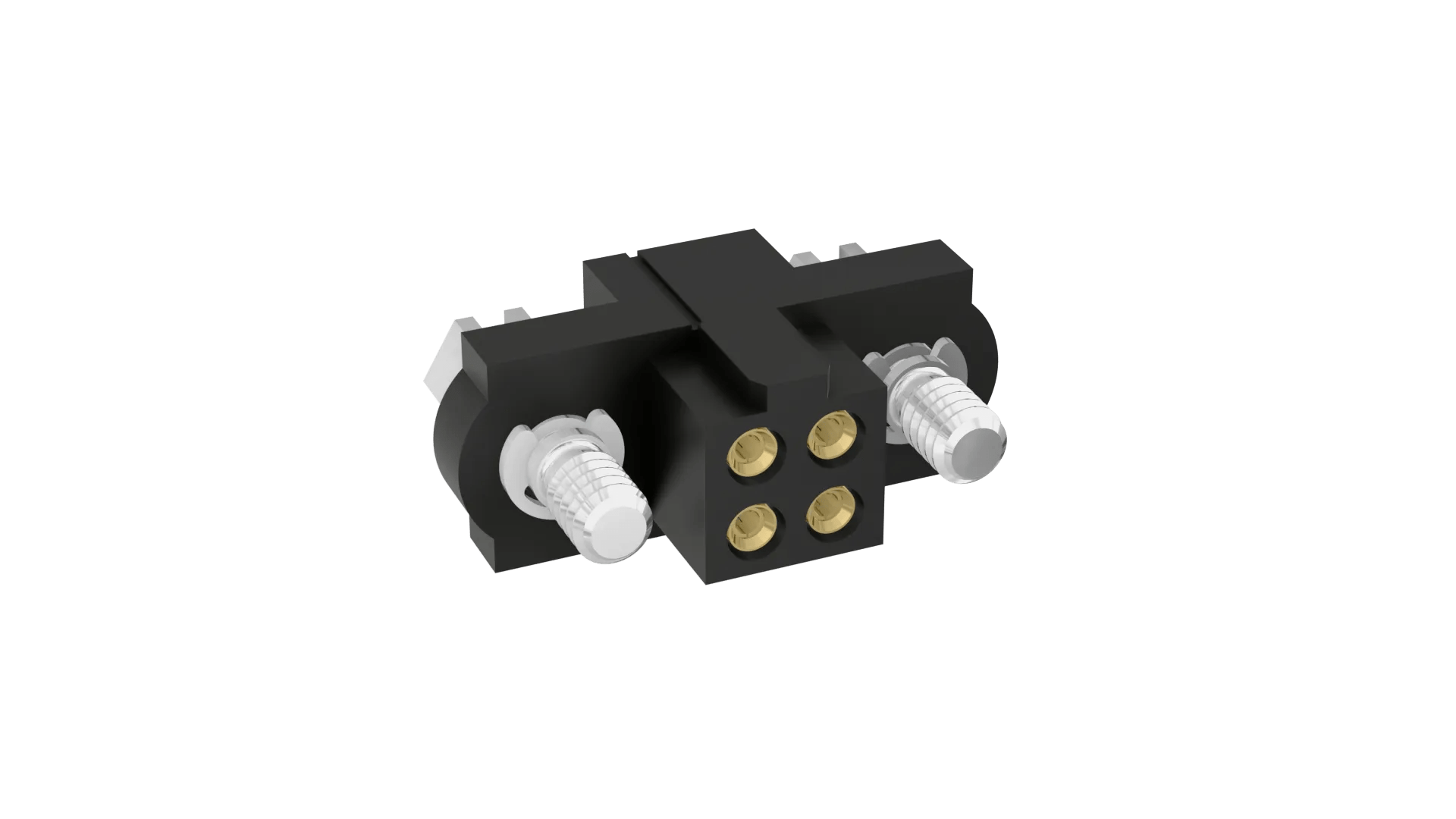

2+2 Pos. Female DIL 24-28AWG Cable Conn. Kit, Jackscrews

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

  • Complete kit: housing with Hexagonal slotted jackscrews fitted, 4 x barrel crimp contacts loose – Gold finish on contact area and termination.
  • Small Bore – suitable for 24 to 28AWG cable (Ø1.1mm max insulation). Spare contacts = M80-0130005.
  • For complete pin numbering or pin out information, see Component Specification C005XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

24-28AWG

Mating Pin Size:

Ø0.5mm

Current Rating:

3.3A max individual contact, 3A max simultaneous (25°C)

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Floating Jackscrew with Hex Slotted Head (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

4

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip, Brass shell

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

1.122g

Overall Dimensions (L x W x D) in mm:

14.00 x 5.50 x 8.50

Thread Size:

M2

Availability

813 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 286
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 156
Distributor Farnell
Location Europe
Quantity (Updated Daily) 119
Distributor Newark
Location USA
Quantity (Updated Daily) 118
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 116
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 18

Questions & Answers Ask a Question

When I crimp this terminal, the conductor crimp is over the inspection hole – isn’t this a defect per IPC/WHMA-A-620?

We have a support article relating to this question, but essentially the hole you see is not designed to be an inspection hole. It is a plating hole, to allow the finish materials to reach the bottom of the crimp bore and help ensure performance. As such it is not relevant to IPC-A-620. Applying a crimp using the correct tools will indeed overlap the plating hole by 25 to 50%, but this is intended and expected. The design of the Datamate connector is so compact, there is no room to move the crimp area away from this hole without making the whole connector design larger.

What is the max number of matings?

We can confirm that the durability is 500 mating cycles, which is a minimum number of mating cycles over which the performance of the connector will be maintained. The maximum number of matings that an individual connector may achieve will vary from connector to connector.

The durability is stated on the Technical Drawing and the Component Specification – these are both listed under Downloads.

What torque value should be used for these jackscrews?

The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).
