M80-4181498

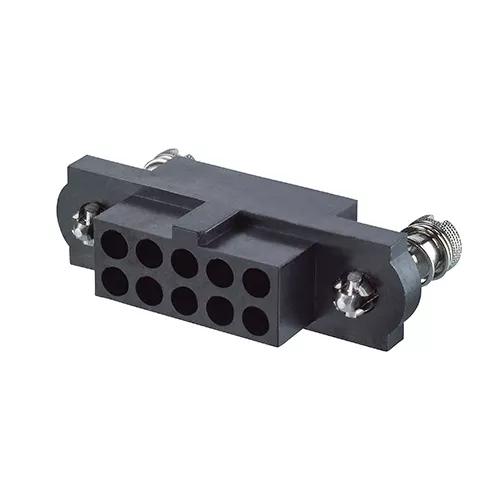

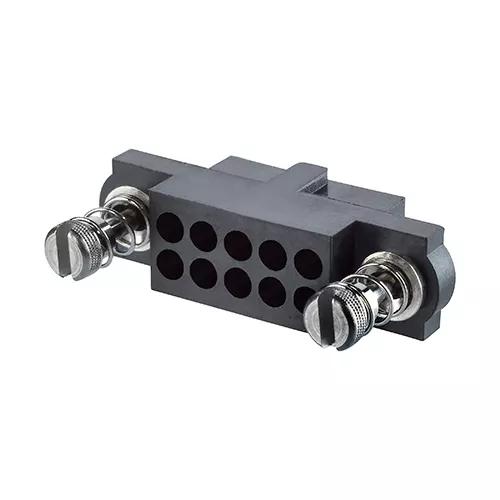

7+7 Pos. Female DIL Cable Housing, 101Lok

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

  • J-Tek Female cable housing fitted with slotted head 101Lok bayonet-style fixings. Accommodates 14 (7+7) signal contacts.
  • Ideal for use with M80-2060005 T-Contact (22AWG), but can also be used with other female signal crimp contacts from the Datamate range.
  • For complete pin numbering or pin out information, see Component Specification C005XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Current Rating:

Dependent on assembled contacts

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

101Lok

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

14

Materials

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

1.181g

Overall Dimensions (L x W x D) in mm:

24.00 x 5.50 x 10.90

Availability

187 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 100
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 87
