M80-4181098

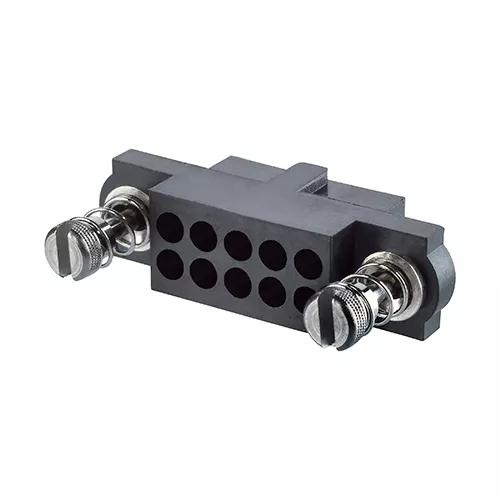

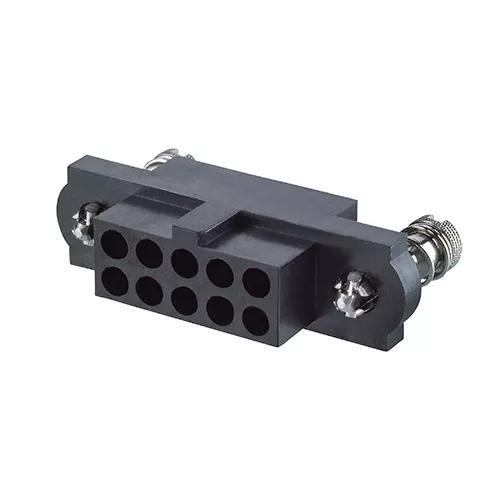

Datamate J-Tek DIL Female Crimp Connector Housing, with 101Lok fixings, accepts 5+5 contacts


2.00mm Pitch High-Reliability Connector - Datamate J-Tek

  • J-Tek Female cable housing fitted with slotted head 101Lok bayonet-style fixings. Accommodates 10 (5+5) signal contacts.

  • Ideal for use with M80-2060005 T-Contact (22 AWG), but can also be used with other female signal crimp contacts from the Datamate range.

  • For complete pin numbering or pin out information, see Component Specification C005XX.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Test Reports

Product Information

Technical Details

Specifications

  • Contact Pitch:

    2.00mm (0.079")

  • Contact Gender:

    Female/Socket/Jack

  • Connector Orientation:

    Straight

  • PCB Mounting:

    Cable (Crimp)

  • Style of Jackscrews:

    101Lok Bayonet Fixing with Slotted Head

  • End Stackable:

    No

  • Side Stackable:

    No

  • Number of Rows:

    2

  • Number of Signal Contacts:

    10

  • Housing Material:

    PPS

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Bulk/Loose

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Connection Type:

    Cable (Crimp)

  • Current Rating:

    Dependent on assembled contacts

  • Weight:

    1.027g

  • Dimensions:

    20.00 x 5.50 x 10.90

  • Operating Temperature:

    -55°C to +125°C

  • Country of Origin:

    GB

  • Polarised:

    Yes

  • Cuttable:

    No

  • Housing Colour:

    Black
