Home > M80-4172898
Active Product

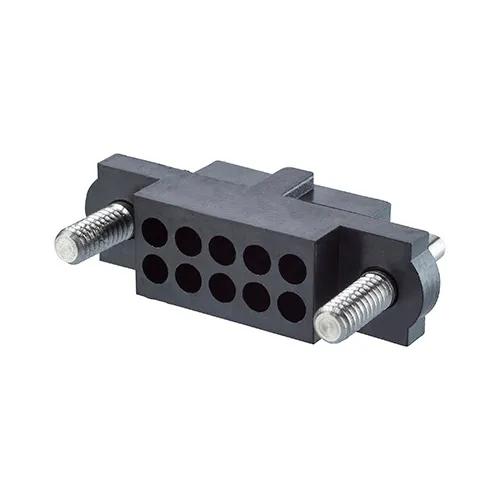

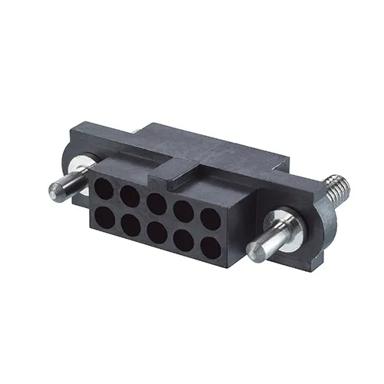

M80-4172898

14+14 Pos. Female DIL Cable Housing, Guide Pin Panel Mount

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

Add to Favorites

148 in stock   Check availability

5 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • J-Tek Female cable housing fitted with Guide pin jackscrews with 5mm panel mount threaded stud. Accommodates 28 (14+14) signal contacts. Nuts available separately: M80-2130000B round slotted nut or M80-2430000B hexagonal nut.
  • Ideal for use with M80-2060005 T-Contact (22AWG), but can also be used with other female signal crimp contacts from the Datamate range.
  • For complete pin numbering or pin out information, see Component Specification C005XX.

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Current Rating:

Dependent on assembled contacts

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Guide Pin with Front Panel Mount Stud (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

28

Materials

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

1.625g

Overall Dimensions (L x W x D) in mm:

38.00 x 5.50 x 11.00

Thread Size:

M2

Frequently Asked Questions Ask a Question

Are the board/panel mount nuts supplied with this connector, or do I have to order them separately?

No, these connectors are not supplied with the board/panel mount nuts – you will need to order them separately. You have a choice of M80-2130000B (slotted circular nut), or M80-2430000B (hexagonal nut).

Was this answer useful?

What torque value should be used for these jackscrews?

The torque value for board or panel mounting is 21±2cmN. This value is given in the Component Specification C005xx (page 14).

Was this answer useful?
