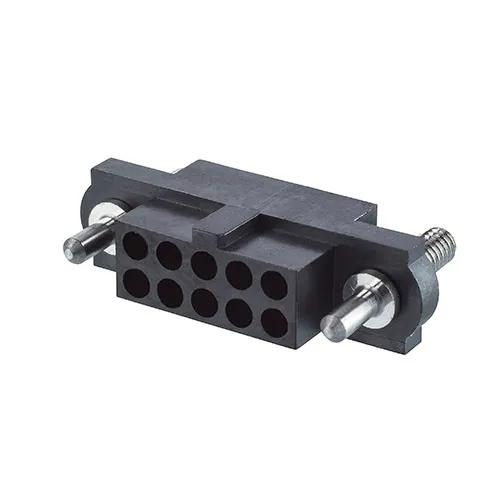

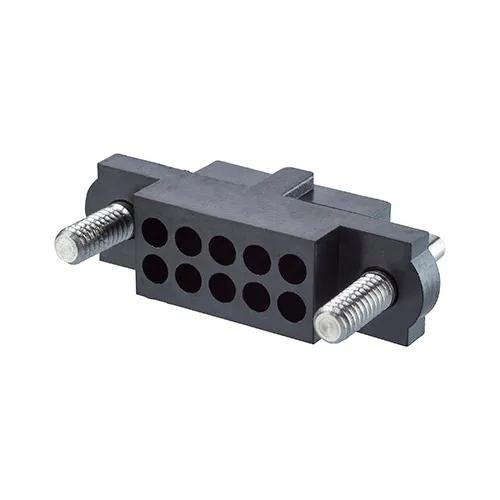

9+9 Pos. Female DIL Cable Housing, Guide Pin
2.00mm Pitch High-Reliability Connector - Datamate J-Tek
- J-Tek Female cable housing fitted with Guide pin jackscrews with 5mm panel mount threaded stud. Accommodates 18 (9+9) signal contacts. Nuts available separately: M80-2130000B round slotted nut or M80-2430000B hexagonal nut.
- Ideal for use with M80-2060005 T-Contact (22AWG), but can also be used with other female signal crimp contacts from the Datamate range.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
Dependent on assembled contacts
-55°C to +125°C
Style of Jackscrews:
Guide Pin with Board Mount
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
28.00 x 5.50 x 11.00
421 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
Questions & Answers Ask a Question
Are the board/panel mount nuts supplied with this connector, or do I have to order them separately?
What torque value should be used for these jackscrews?
The torque value for board or panel mounting is 21±2cmN. This value is given in the Component Specification C005xx (page 14).
M80-4171898 CAD Model (ZIP file containing STP and IGES)Download
Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews
