2.00mm Pitch High-Reliability Connector - Datamate J-Tek

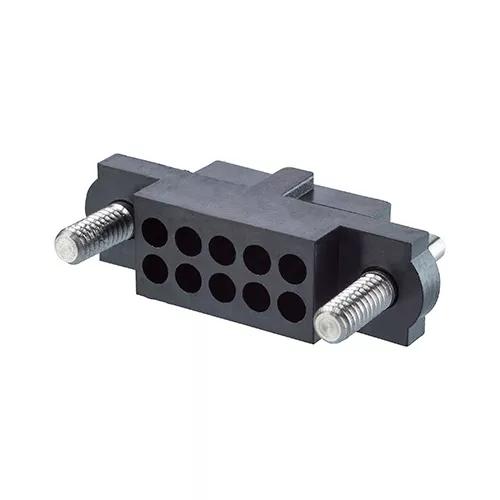

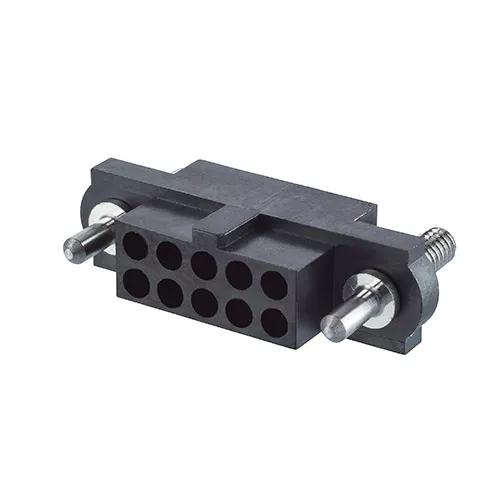

J-Tek Female cable housing fitted with Guide pin jackscrews with 5mm panel mount threaded stud. Accommodates 10 (5+5) signal contacts. Nuts available separately: M80-2130000B round slotted nut or M80-2430000B hexagonal nut.
Ideal for use with M80-2060005 T-Contact (22 AWG), but can also be used with other female signal crimp contacts from the Datamate range.
For complete pin numbering or pin out information, see the Component Specification C005XX.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
Guide Pin with Board/Front Panel Mount
Number of Rows:
2
Connector Orientation:
Straight
Country of Origin:
GB
Side Stackable:
No
Number of Signal Contacts:
10
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
Dependent on assembled contacts
Polarised:
Yes
Cuttable:
No
Materials
Housing Material:
PPS
Flammability Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Housing Colour:
Black
Dimensions
Contact Pitch:
2.00mm (0.079")
Weight:
0.933g
Dimensions:
20.00 x 5.50 x 11.00
Thread Size:
M2
Downloads
Technical Drawing / Datasheet - M80-417.pdf
C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)
C049XX Component Specification - Cable Assembly Specifications for all HRi products
Outgassing data for Harwin products (plastics)
Catalog page - Datamate J-Tek Mating Profiles
Product Training Module - Guide to the Datamate T-Contact and associated housings
Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability
Product Training Module - Guide to Datamate Latches (L-Tek) + Jackscrews (J-Tek) and 101Lok
Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews
Product Training Module - Cable Connectors and Assemblies from Harwin
Product Training Module - Cable Products from Harwin
IS-01 - M22520/2-01 Hand Crimp Tool Instruction Sheet
IS-25 - Z80-280 Assembly Tool Instruction Sheet
Distributor part numbers for suitable cables for Datamate + Gecko + M300 & Kona
Product Datasheet - Datamate range: signal connectors (HRi)
Test Report HT062 - Datamate T-Contact 8.5A signal contact - General
Test Report HT005 - Datamate L-Tek Female Crimp Retention and Integrity (Pull-Off Force)
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement - includes all material legislations
Material composition for M80-417 series
RoHS - M80-4171098
