Home > M80-4154098
Active Product

M80-4154098

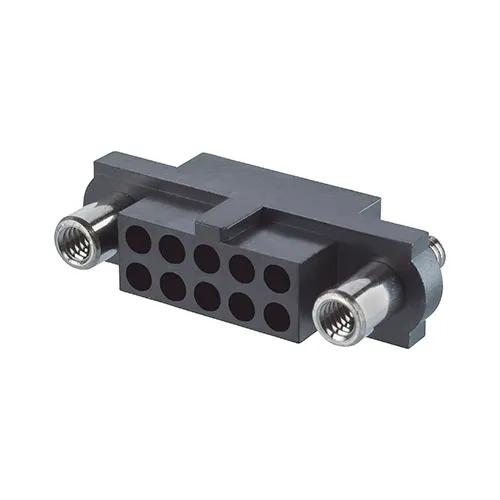

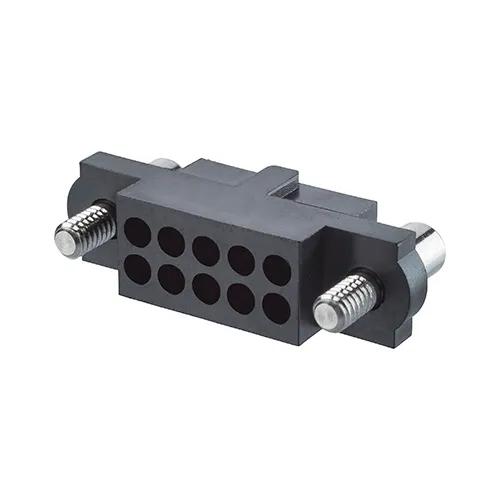

20+20 Pos. Female DIL Cable Housing, Reverse Fix Panel Mount

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

Add to Favorites

Loading…   Check availability

7 similar products View products

Traceparts account required

Product Description

  • J-Tek Female cable housing fitted with Reverse fix jackscrews with 3.5mm panel mount threaded stud. Accommodates 40 (20+20) signal contacts. Nuts available separately: M80-2130000B round slotted nut or M80-2430000B hexagonal nut.
  • Ideal for use with M80-2060005 T-Contact (22 AWG), but can also be used with other female signal crimp contacts from the Datamate range.
  • For complete pin numbering or pin out information, see Component Specification C005XX.

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Current Rating:

Dependent on assembled contacts

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Internal Thread Jackscrew with Front Panel Mount Stud (Reverse Fix)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

40

Materials

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

2.229g

Overall Dimensions (L x W x D) in mm:

50.00 x 5.50 x 9.20

Thread Size:

M2

Frequently Asked Questions Ask a Question

Are the board/panel mount nuts supplied with this connector, or do I have to order them separately?

No, these connectors are not supplied with the board/panel mount nuts – you will need to order them separately. You have a choice of M80-2130000B (slotted circular nut), or M80-2430000B (hexagonal nut).

Was this answer useful?

What torque value should be used for these jackscrews?

The torque value for board or panel mounting is 21±2cmN. The torque value for mating jackscrews is 23cmN max. Both values are given in the Component Specification C005xx (page 14).

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with no Exemption required
