18+18 Pos. Female DIL Cable Housing, Reverse Fix
2.00mm Pitch High-Reliability Connector - Datamate J-Tek

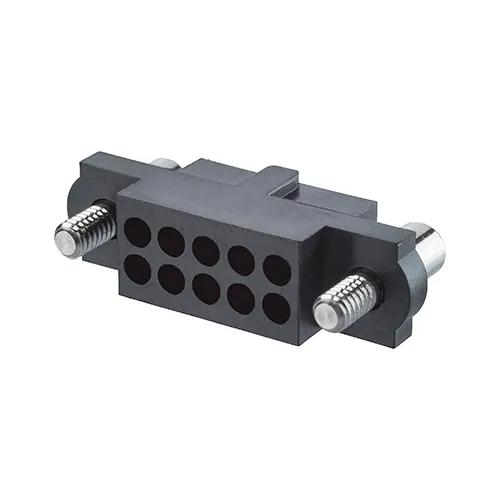

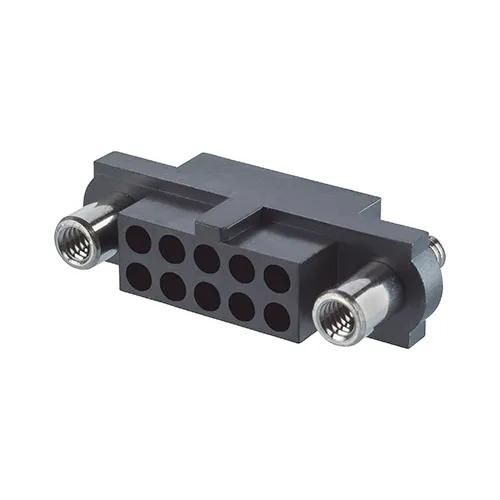

- J-Tek Female cable housing fitted with Reverse fix jackscrews with 3.5mm panel mount threaded stud. Accommodates 36 (18+18) signal contacts. Nuts available separately: M80-2130000B round slotted nut or M80-2430000B hexagonal nut.
- Ideal for use with M80-2060005 T-Contact (22AWG), but can also be used with other female signal crimp contacts from the Datamate range.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
Dependent on assembled contacts
-55°C to +125°C
Style of Jackscrews:
Reverse Fix with Board Mount
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
46.00 x 5.50 x 9.20
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
* Please request minimum quantities, lead times and pricing from an authorized distributor.
M80-4153698 CAD Model (ZIP file containing STP and IGES)Download
Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews
