5+5 Pos. Female DIL Cable Housing, Reverse Fix Panel Mount
2.00mm Pitch High-Reliability Connector - Datamate J-Tek

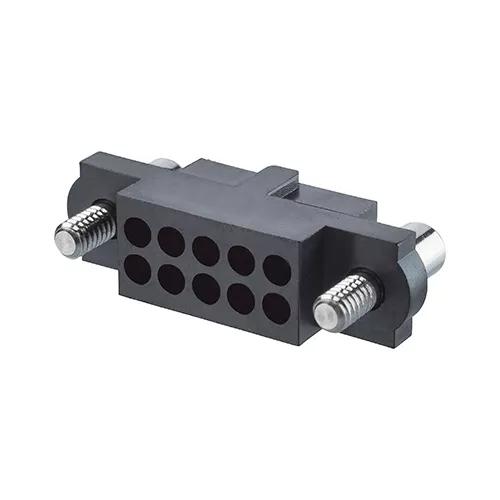

- J-Tek Female cable housing fitted with Reverse fix jackscrews with 3.5mm panel mount threaded stud. Accommodates 10 (5+5) signal contacts. Nuts available separately: M80-2130000B round slotted nut or M80-2430000B hexagonal nut.
- Ideal for use with M80-2060005 T-Contact (22AWG), but can also be used with other female signal crimp contacts from the Datamate range.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
Dependent on assembled contacts
-55°C to +125°C
Style of Jackscrews:

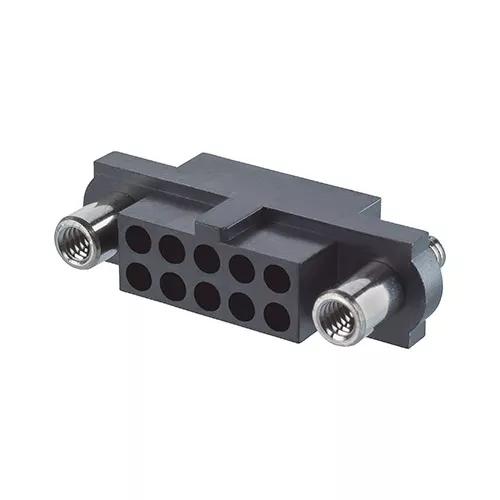

Internal Thread Jackscrew with Front Panel Mount Stud (Reverse Fix)
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
20.00 x 5.50 x 9.20
Frequently Asked Questions Ask a Question
Are the board/panel mount nuts supplied with this connector, or do I have to order them separately?
What torque value should be used for these jackscrews?
The torque value for board or panel mounting is 21±2cmN. The torque value for mating jackscrews is 23cmN max. Both values are given in the Component Specification C005xx (page 14).
