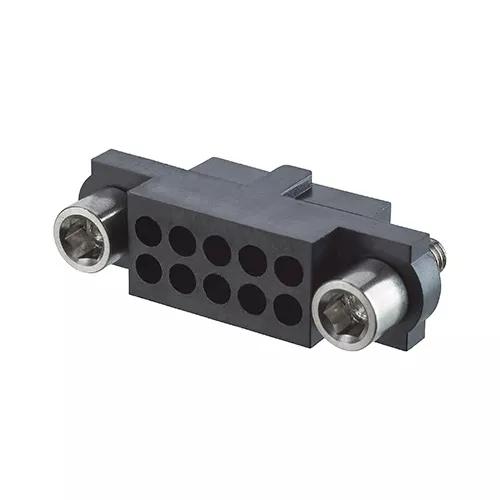

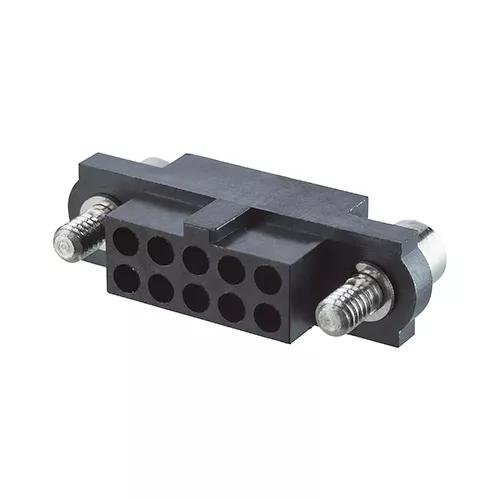

Representative image of product family.

  • M80-4145098 - 25+25 Pos. Female DIL Cable Housing, Jackscrews
  • M80-4145098 - 25+25 Pos. Female DIL Cable Housing, Jackscrews

M80-4145098

25+25 Pos. Female DIL Cable Housing, Jackscrews

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

  • J-Tek Female cable housing fitted with hex socket (for 2mm A/F allen key) floating jackscrews. Accommodates 50 (25+25) signal contacts.
  • Ideal for use with M80-2060005 T-Contact (22AWG), but can also be used with other female signal crimp contacts from the Datamate range.

Active

Popular product: currently in stock in network

RoHS Compliant - 2011/65/EU

(Does not require exemption)

Product Stock

Distributor Name Location of Stock Qty
Digi-Key Global 100 Buy Now
Mouser Electronics Inc Global 90 Buy Now
TTI Europe Europe 10 Buy Now
TTI Inc USA 100 Buy Now
Harwin Europe 50

Stock available: contact distributor to purchase

Product Information

Specification

+
Product Type: 2.00mm Pitch High-Reliability Connector - Datamate J-Tek
Contact Pitch: 2.00mm (0.079")
Contact Gender: Female/Socket/Jack
Connector Orientation: Straight
Connection Type: Cable (Crimp)
Operating Temperature: -55°C to +125°C
Style of Jackscrews: Hex Socket

Materials

+
Housing Material: PPS
Housing Color: Black
Housing Material UL Rating: UL94V-0
Individual Part Weight: 2.653g
Packaging Style: Bulk/Loose

Dimensions

+
Number of Rows: 2
Total Number of Contacts: 50
Body Length: 60mm
End Stackable: No
Side Stackable: No
Polarising Features: Yes
Can be cut to another size: No
Thread Size: M2
Mating Profiles/Heights

Related Products

+
Hand Crimp Tool: M22520/2-01
Positioner: Z80-444
Insertion / Removal Tool: Z80-280
Dummy Contacts (for keying): M80-023
Other products to be used with this item: M80-2060005 M80-0110005 M80-0130005 M80-0190005
Screwdriver (for board mount units): Z9953-00
Z9951-00
Product Family: M80-414
