M80-4143298

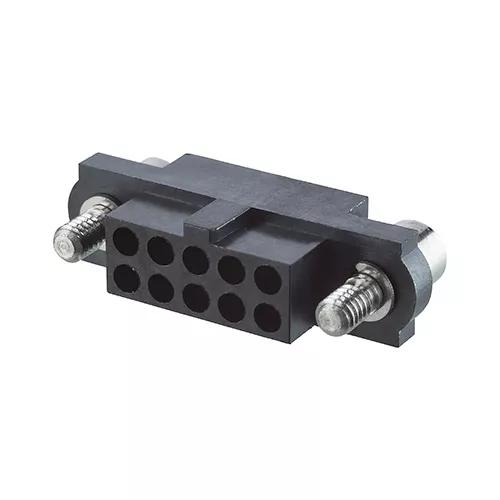

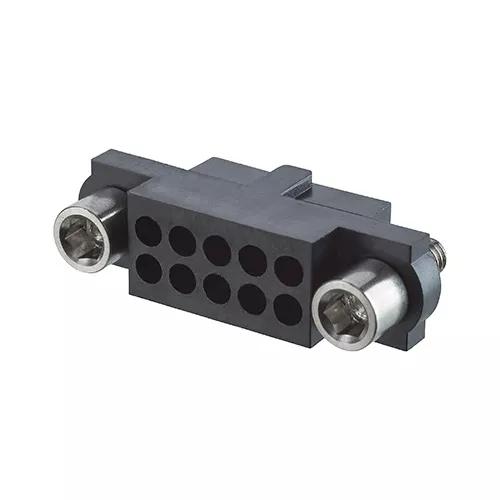

16+16 Pos. Female DIL Cable Housing, Jackscrews
2.00mm Pitch High-Reliability Connector - Datamate J-Tek
Loading… Check availability
4 similar products View products
Traceparts account required
Product Description
- J-Tek Female cable housing fitted with hex socket (for 2mm A/F allen key) floating jackscrews. Accommodates 32 (16+16) signal contacts.
- Ideal for use with M80-2060005 T-Contact (22 AWG), but can also be used with other female signal crimp contacts from the Datamate range.
- For complete pin numbering or pin out information, see Component Specification C005XX.
Traceparts account required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.00mm (0.079")
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Straight
Connection Type:
Cable (Crimp)
Current Rating:
Dependent on assembled contacts
Operating Temperature:
-55°C to +125°C
Style of Jackscrews:
Floating Jackscrew with Hex Socket Head (Standard Gender)
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
32
Materials
Housing Material:
PPS
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
1.961g
Overall Dimensions (L x W x D) in mm:
42.00 x 5.50 x 8.50
Thread Size:
M2
Mating Profiles:
Frequently Asked Questions Ask a Question
What torque value should be used for these jackscrews?
The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).
