M80-4131698

8+8 Pos. Female DIL Cable Housing, Jackscrews

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

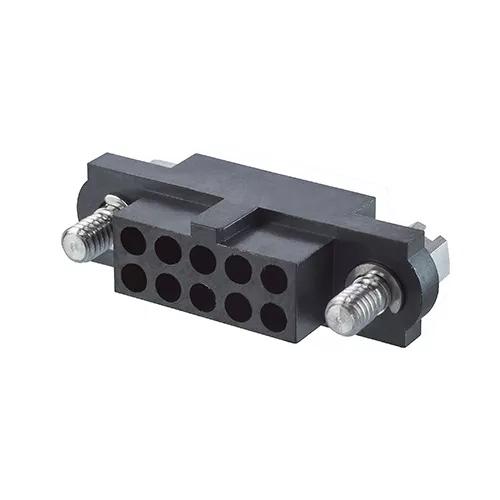

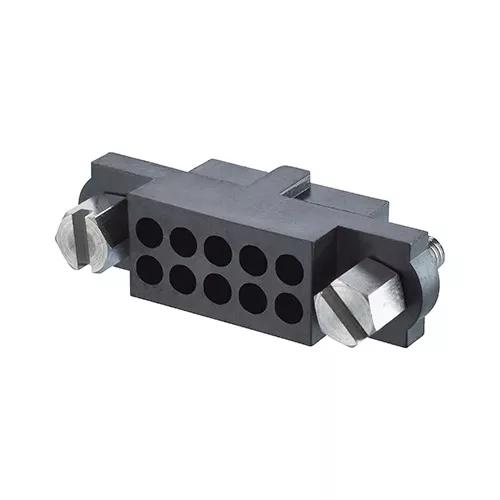

  • J-Tek Female cable housing fitted with hex slotted floating jackscrews. Accommodates 16 (8+8) signal contacts.
  • Ideal for use with M80-2060005 T-Contact (22AWG), but can also be used with other female signal crimp contacts from the Datamate range.

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Hex Slotted

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

16

Materials

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

1.339g

Overall Dimensions (L x W x D) in mm:

26.00 x 5.50 x 8.50

Thread Size:

M2

Availability

Distributor Location Quantity
Digi-Key
Global
Status55
Harwin
Europe
Status45
Mouser Electronics Inc
Global
Status108
TTI Europe
Europe
Status10
TTI Inc
USA
Status100

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

No questions have been asked yet

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M80-413.pdf

ZIP

M80-4131698 CAD Model (ZIP file containing STP and IGES)

PDF

C005XX Component Specification - Datamate M80 and M83 Series (2.00mm, 4.00mm pitch High-Reliability)

TEST REPORTS

PDF

Test Report HT062 - Datamate T-Contact 8.5A signal contact - General

PDF

Test Report HT005 - Datamate L-Tek Female Crimp Retention and Integrity (Pull-Off Force)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (24-Jul-2019) including 201 SVHC (16-Jul-2019), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 5.12) - Company Summary Statement

PDF

Material composition for M80-413 series

INSTRUCTION SHEETS

PDF

Product Training Module - Guide to the Datamate T-Contact and associated housings

PDF

Product Training Module - Overview Guide to the Datamate range, 2 & 4mm pitch High-Reliability

PDF

Product Training Module - Guide to Datamate Latches (L-Tek), Jackscrews (J-Tek) and 101Lok

PDF

IS-01 - M22520/2-01 Hand Crimp Tool Instruction Sheet

PDF

IS-25 - Z80-280 Assembly Tool Instruction Sheet

OTHER DOWNLOADS

PDF

Catalog page - Datamate T-Contact Female Cable Housings

PDF

Catalog page - Datamate Introductions

PDF

Catalog page - Datamate J-Tek Specification, Pin Numbering

PDF

Catalog page - Datamate J-Tek Mating Profiles

PDF

Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews

XLSX

Distributor part numbers for suitable cables for Datamate, Gecko, M300
