6+6 Pos. Female DIL Cable Housing, Jackscrews
2.00mm Pitch High-Reliability Connector - Datamate J-Tek

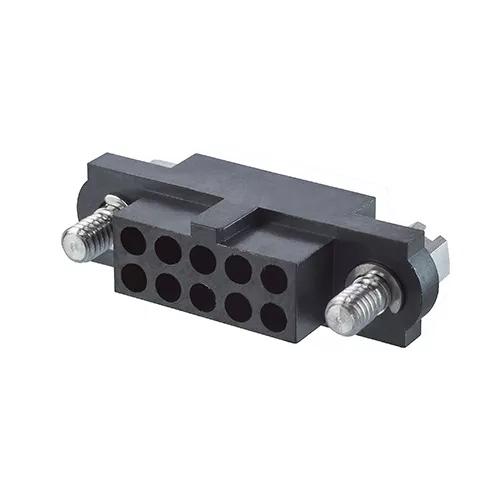

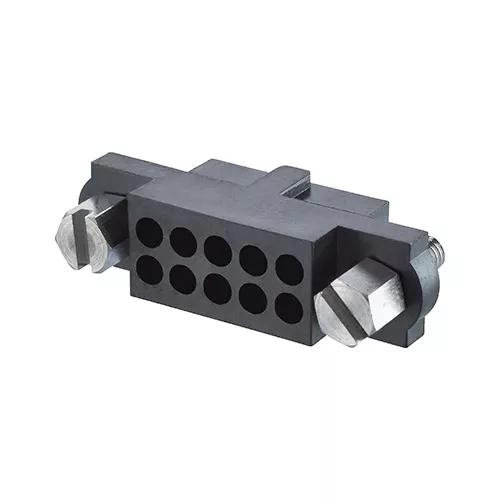

- J-Tek Female cable housing fitted with hex slotted floating jackscrews. Accommodates 12 (6+6) signal contacts.
- Ideal for use with M80-2060005 T-Contact (22AWG), but can also be used with other female signal crimp contacts from the Datamate range.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
Dependent on assembled contacts
-55°C to +125°C
Style of Jackscrews:
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
22.00 x 5.50 x 8.50
212 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
Stock held by Harwin: contact distributor to purchase.
Questions & Answers Ask a Question
What is the mating connector for part number M80-4131298?
You can find the options for mating connectors on this product page – just scroll down to the Related Products section, and click on the tab “Mating”. You will see there are numerous options, deneding on what type of mating connection you need – use the scroll right arrows underneath the boxes to see even more options. If you need further assistance choosing the right option, please contact one of our Experts with information about your requirements.
What torque value should be used for these jackscrews?
The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).
M80-4131298 CAD Model (ZIP file containing STP and IGES)Download
Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews
