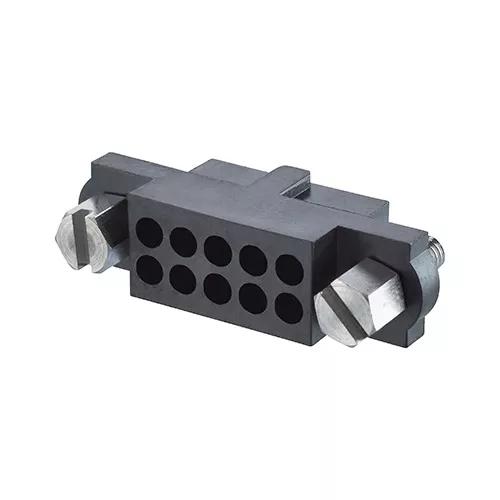

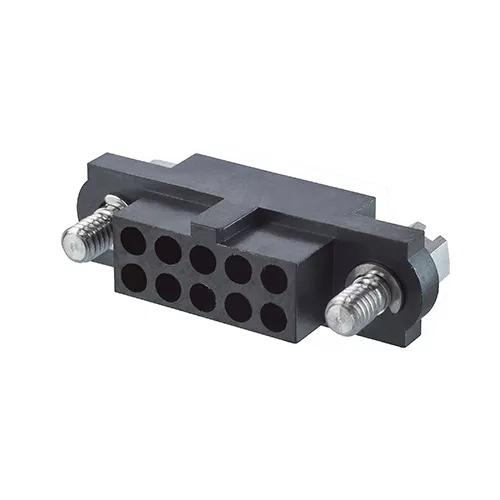

5+5 Pos. Female DIL Cable Housing, Jackscrews
2.00mm Pitch High-Reliability Connector - Datamate J-Tek
- J-Tek Female cable housing fitted with hex slotted floating jackscrews. Accommodates 10 (5+5) signal contacts.
- Ideal for use with M80-2060005 T-Contact (22AWG), but can also be used with other female signal crimp contacts from the Datamate range.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
Dependent on assembled contacts
-55°C to +125°C
Style of Jackscrews:
Floating Jackscrew with Hex Slotted Head (Standard Gender)
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
20.00 x 5.50 x 8.50
Frequently Asked Questions Ask a Question
What torque value should be used for these jackscrews?
The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).
