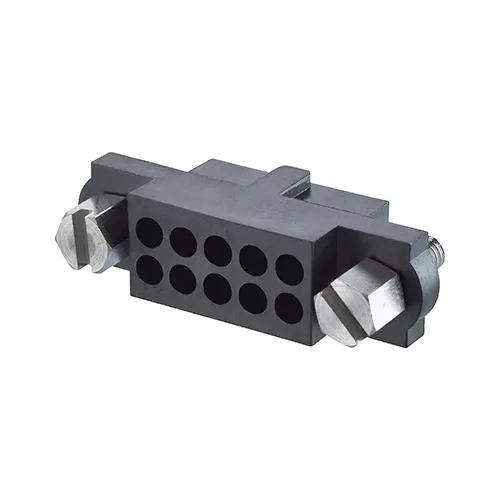

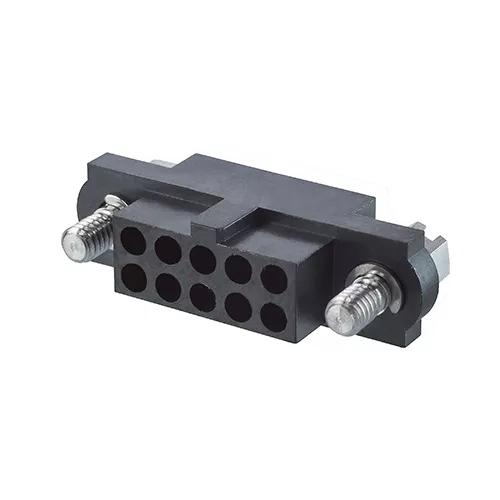

Datamate J-Tek DIL Female Crimp Connector Housing, with hex slotted floating jackscrews, accepts 3+3 contacts

HRi
HRi

Traceparts account required

M80-4130698

Datamate J-Tek DIL Female Crimp Connector Housing, with hex slotted floating jackscrews, accepts 3+3 contacts

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

  • J-Tek Female cable housing fitted with hex slotted floating jackscrews. Accommodates 6 (3+3) signal contacts.

  • Ideal for use with M80-2060005 T-Contact (22 AWG), but can also be used with other female signal crimp contacts from the Datamate range.

  • For complete pin numbering or pin out information, see Component Specification C005XX.

View Technical Details & Downloads

Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Product Information

Technical Documentation

Environmental Compliance

Test Reports

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Style of Jackscrews:

    Floating Jackscrew with Hex Slotted Head (Standard Gender)

  • Number of Rows:

    2

  • Connector Orientation:

    Straight

  • Country of Origin:

    GB

  • Side Stackable:

    No

  • Number of Signal Contacts:

    6

  • Operating Temperature:

    -55°C to +125°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Current Rating:

    Dependent on assembled contacts

  • Polarised:

    Yes

  • Cuttable:

    No

Materials

  • Housing Material:

    PPS

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Bulk/Loose

  • Housing Colour:

    Black

Dimensions

  • Contact Pitch:

    2.00mm (0.079")

  • Weight:

    0.954g

  • Dimensions:

    16.00 x 5.50 x 8.50

  • Thread Size:

    M2

Downloads

    Product Information

  • Product Training Module - Guide to the Datamate T-Contact and associated housings

  • IS-25 - Z80-280 Assembly Tool Instruction Sheet

  • Distributor part numbers for suitable cables for Datamate + Gecko + M300 & Kona

  • Catalog page - Datamate J-Tek Mating Profiles

  • IS-01 - M22520/2-01 Hand Crimp Tool Instruction Sheet

  • Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews

  • Product Training Module - Panel Mount with Datamate

  • Product Training Module - Cable Products from Harwin

  • Product Training Module - Cable Connectors and Assemblies from Harwin

  • Product Training Module - Guide to Datamate Latches (L-Tek) + Jackscrews (J-Tek) and 101Lok

  • Product Datasheet - Datamate range: signal connectors (HRi)

  • Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability

    • Technical Documentation

  • Technical Drawing / Datasheet - M80-413.pdf

  • C049XX Component Specification - Cable Assembly Specifications for all HRi products

  • C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)

  • Outgassing data for Harwin products (plastics)

    • Environmental Compliance

  • RoHS - M80-4130698

  • Material composition for M80-413 series

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

    • Test Reports

  • Test Report HT062 - Datamate T-Contact 8.5A signal contact - General

  • Test Report HT005 - Datamate L-Tek Female Crimp Retention and Integrity (Pull-Off Force)
