Active Product

M80-4122042

10+10 Pos. Female DIL Vertical SMT Conn. No Jackscrews

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

Order Sample

Add to Favorites

48 in stock Check availability

6 similiar products View products

Traceparts account required

Product Description

Double Row, Surface Mount connector without jackscrews – 20 contacts (10+10).
Gold finish on contact area, Tin finish on termination. Packaged in tubes.
For complete pin numbering or pin out information, see Component Specification C005XX.

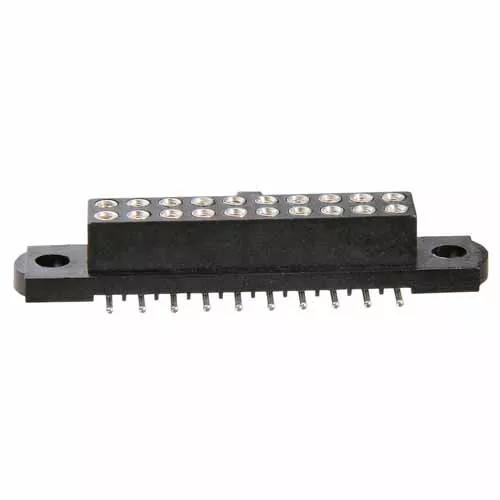

M80-4122042 - 10+10 Pos. Female DIL Vertical SMT Conn. No Jackscrews

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

Ø0.5mm

Current Rating:

3.3A max individual contact, 3A max simultaneous (25°C)

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

None fitted

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Entry Style:

Top Entry

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip, Brass shell

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Individual Part Weight:

1.653g

Overall Dimensions (L x W x D) in mm:

30.00 x 7.50 x 5.60

Height of Connector above PCB:

5.60mm

Mating Profiles:

Catalog page - Datamate J-Tek Mating Profiles
