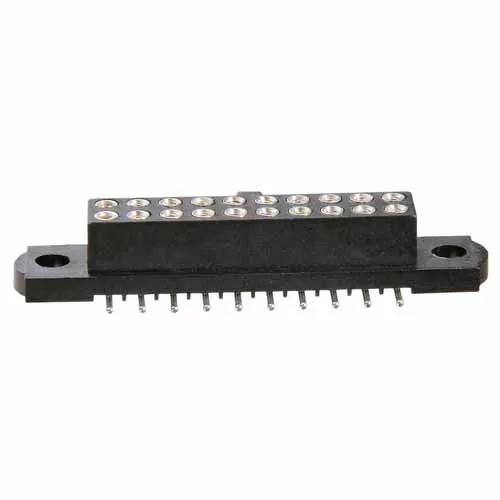

5+5 Pos. Female DIL Vertical SMT Conn. No Jackscrews
2.00mm Pitch High-Reliability Connector - Datamate J-Tek
- Double Row, Surface Mount connector without jackscrews – 10 contacts (5+5).
- Gold finish on contact area, Tin finish on termination. Packaged in tubes.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
Surface Mount (SMT)
Mating Pin Size:
3.3A max individual contact, 3A max simultaneous (25°C)
-55°C to +125°C
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
20.00 x 7.50 x 5.60
Height of Connector above PCB:
87 in stock
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
Questions & Answers Ask a Question
Are the surface mount Datamate range of connectors suitable to be soldered directly onto a flexi cable, or must they be used on a ridged/flexi ridged PCB assembly?
Yes, we would expect you to be able to solder these products on to flexi cable. You will need to review soldering temperatures, to make sure that you do not cause any damage to the flexi cable. If you need further assistance, please do contact our Technical Team for more help.
