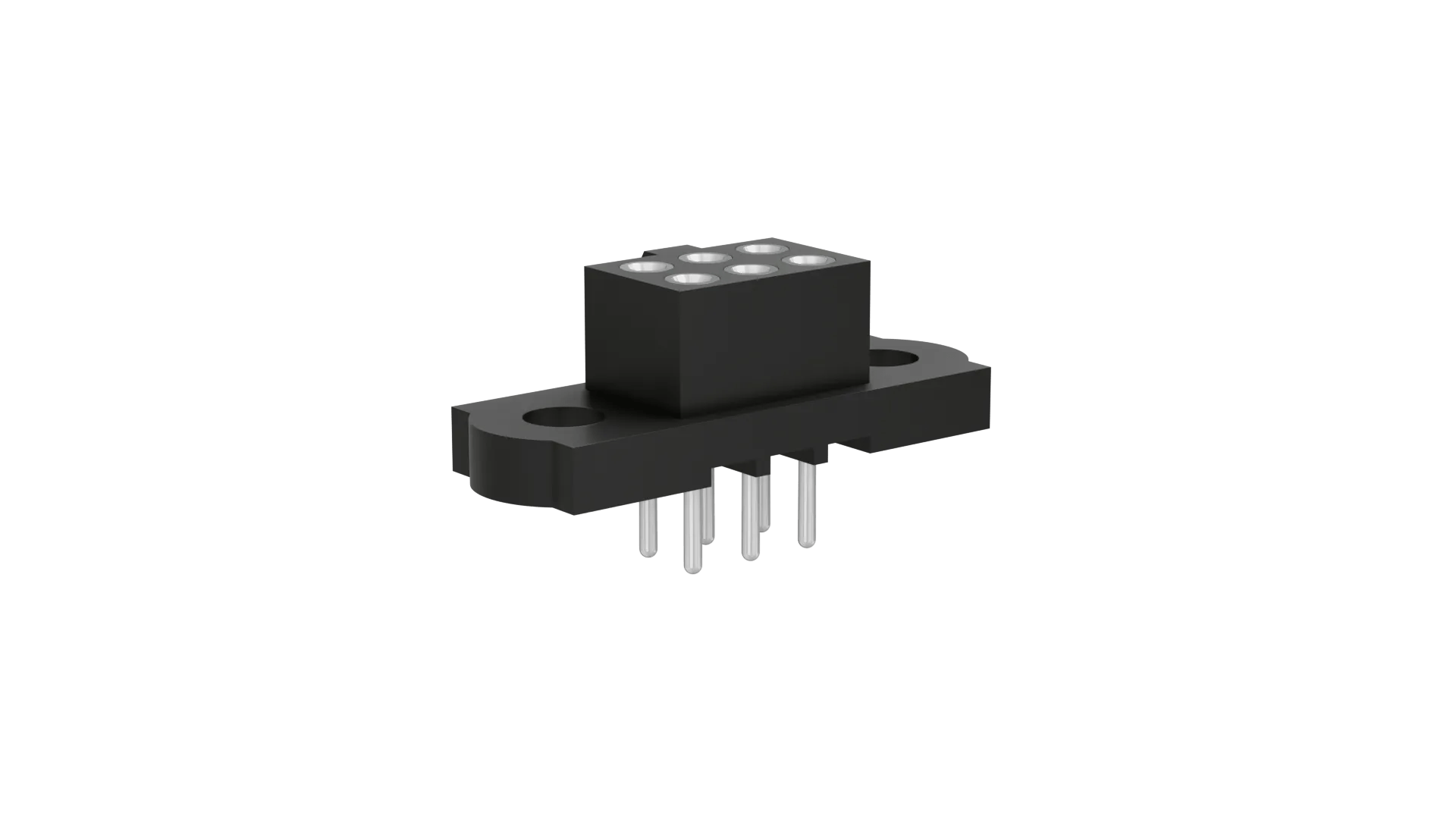

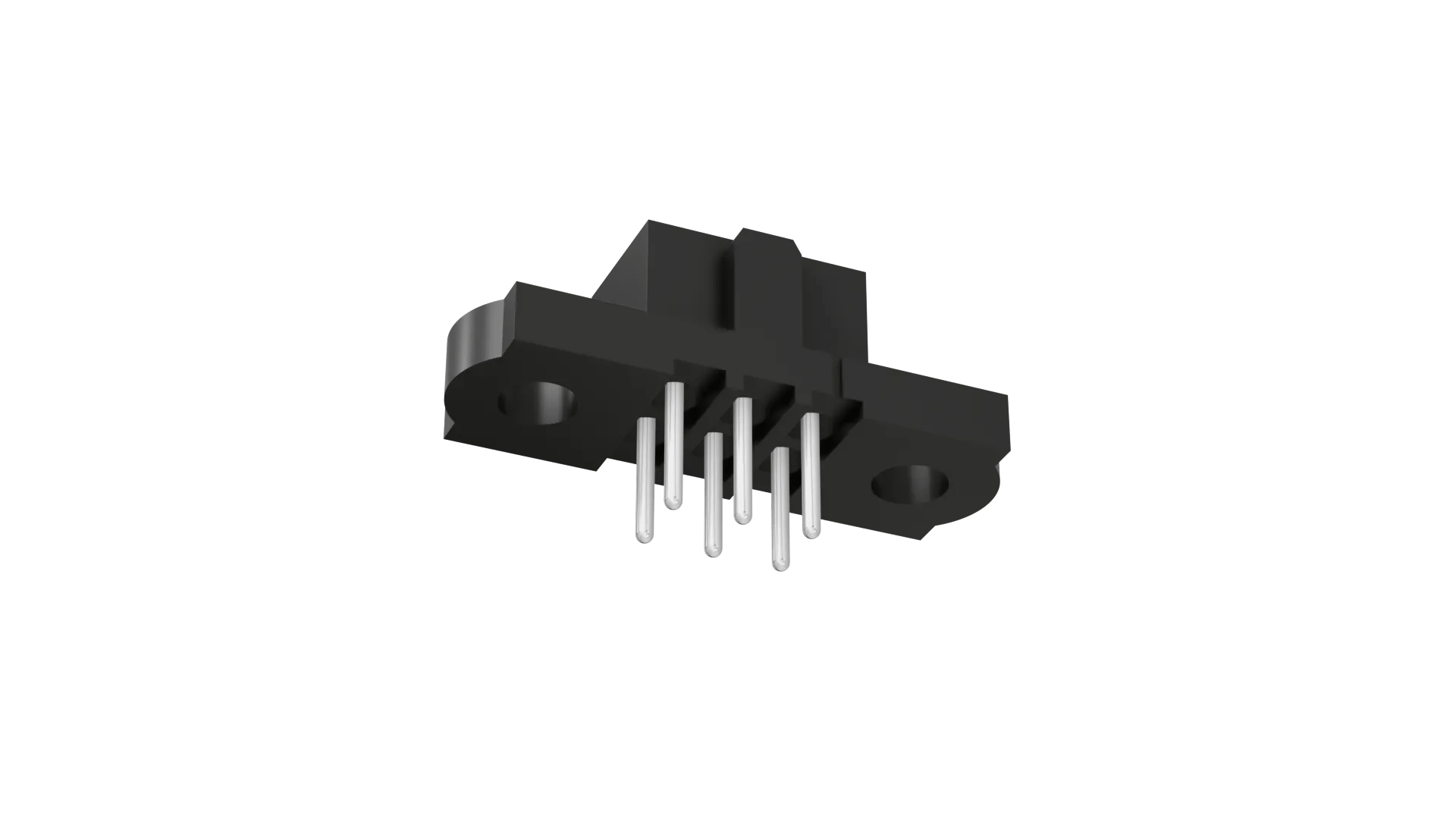

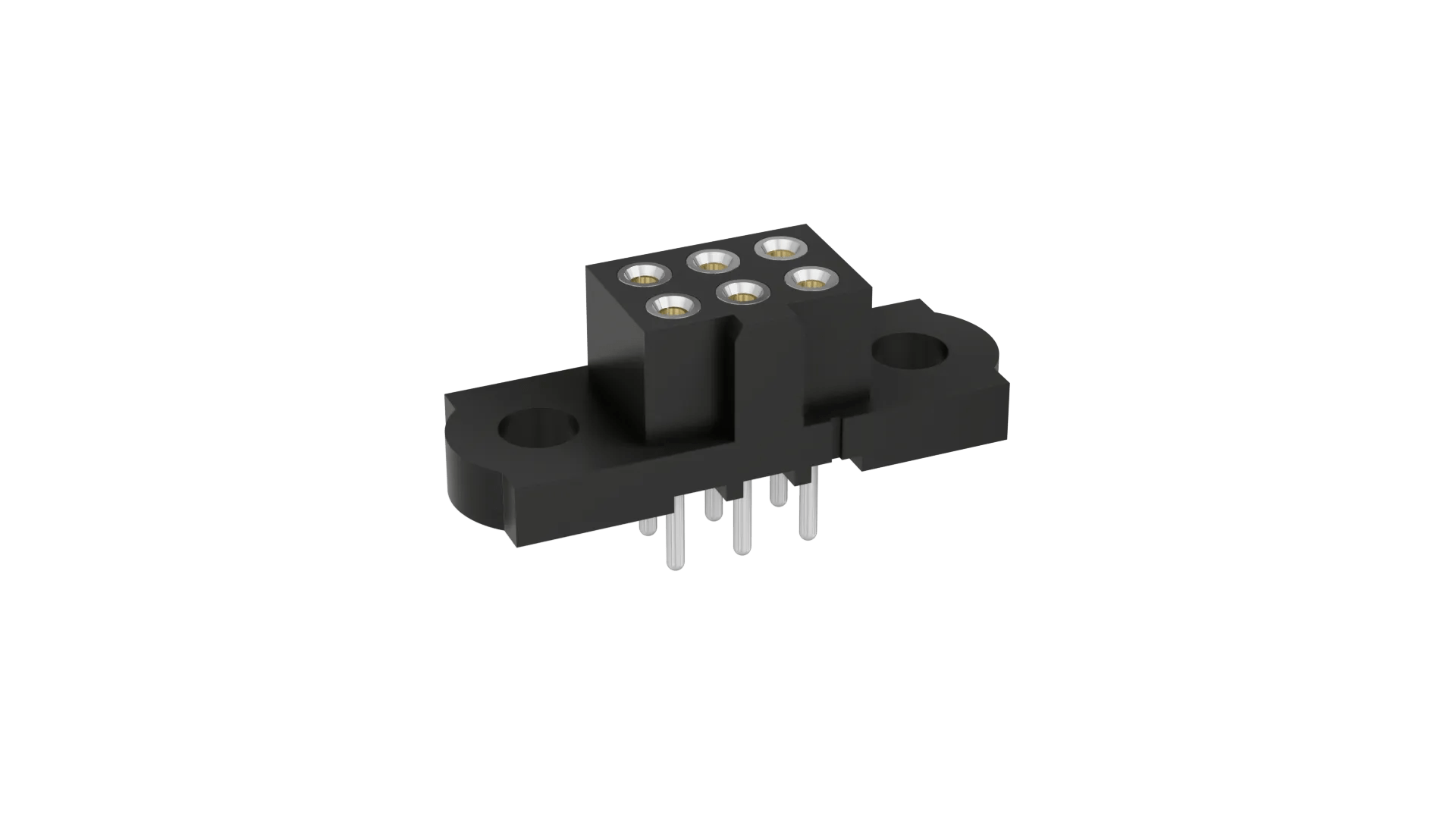

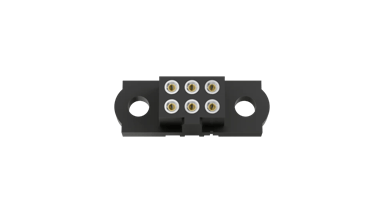

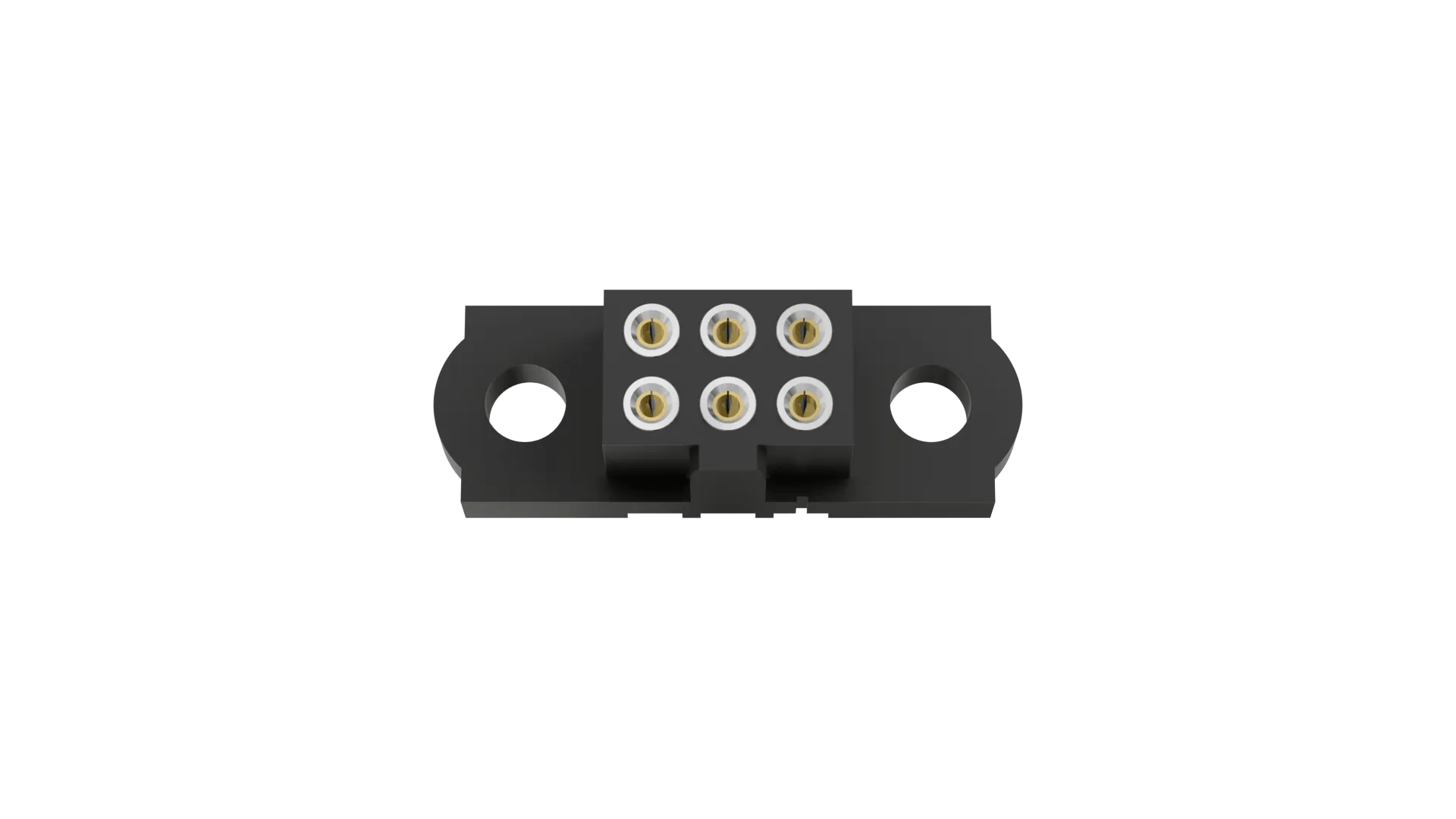

M80-4100642
3+3 Pos. Female DIL Vertical Throughboard Conn. No Jackscrews
2.00mm Pitch High-Reliability Connector - Datamate J-Tek
806 in stock Check availability
7 similiar products View products
Samacsys account required
No login is required
Product Description
- Double Row, 3mm PC Tail connector without jackscrews – 6 contacts (3+3).
- Gold finish on contact area, Tin finish on termination.
- For complete pin numbering or pin out information, see Component Specification C005XX.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.00mm (0.079")
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Vertical
Connection Type:
PC Tail / Throughboard
Mating Pin Size:
Ø0.5mm
Current Rating:
3.3A max individual contact, 3A max simultaneous (25°C)
Operating Temperature:
-55°C to +125°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
None fitted
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
6
Entry Style:
Top Entry
Materials
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Housing Material:
PPS
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tube
Dimensions
Individual Part Weight:
0.559g
Overall Dimensions (L x W x D) in mm:
16.00 x 5.50 x 8.18
Height of Connector above PCB:
5.18mm
Length of Throughboard Tail:
3.00mm
Mating Profiles:
