Active Product

M80-4053405

17+17 Pos. Female DIL Vertical Throughboard Conn. Reverse Fix

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

Order Sample

Add to Favorites

Made to order

8 similiar products View products

Traceparts account required

Product Description

Double Row, 3mm PC Tail connector with Reverse fix, 3.5mm board mount jackscrews – 34 contacts (17+17).
Gold finish on contact area and termination. Slotted nuts provided for assembly to board mount stud. For spare board mount nuts, order M80-2130000B.
For complete pin numbering or pin out information, see Component Specification C005XX.

M80-4053405 - 17+17 Pos. Female DIL Vertical Throughboard Conn. Reverse Fix

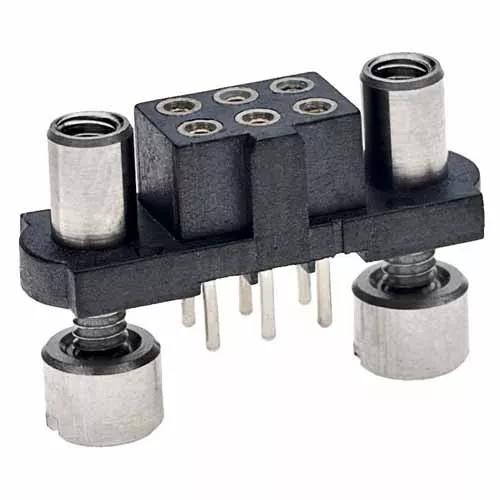

Representative image of product family

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm

Current Rating:

3.3A max individual contact, 3A max simultaneous (25°C)

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Internal Thread Jackscrew with Board Mount Stud (Reverse Fix)

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Entry Style:

Top Entry

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip, Brass shell

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Individual Part Weight:

3.452g

Overall Dimensions (L x W x D) in mm:

44.00 x 5.50 x 9.20

Thread Size:

Height of Connector above PCB:

5.65mm

Length of Throughboard Tail:

3.00mm

Mating Profiles:

Catalog page - Datamate J-Tek Mating Profiles

Frequently Asked Questions Ask a Question

Yes, these connectors are supplied with the board/panel mount nuts – they will come packaged in a separate bag. If you need some spares, you can use part number M80-2130000B to order more.

Was this answer useful?

The torque value for board or panel mounting is 21±2cmN. The torque value for mating jackscrews is 23cmN max. Both values are given in the Component Specification C005xx (page 14).

Was this answer useful?
