M80-4003401

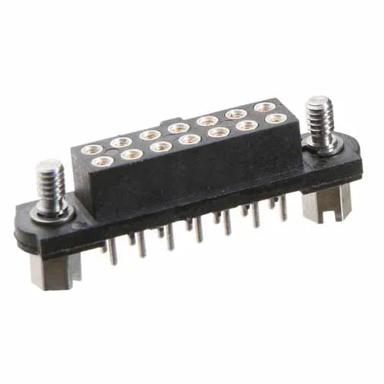

17+17 Pos. Female DIL Vertical Throughboard Conn. Jackscrews
2.00mm Pitch High-Reliability Connector - Datamate J-Tek
Made to order
8 similiar products View products
Samacsys account required
No login is required
Product Description
- Double Row, 3mm PC Tail connector with Hexagonal slotted jackscrews – 34 contacts (17+17).
- Gold finish on contact area, Tin/Lead finish on termination.
- For complete pin numbering or pin out information, see Component Specification C005XX.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.00mm (0.079")
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Vertical
Connection Type:
PC Tail / Throughboard
Mating Pin Size:
Ø0.5mm
Current Rating:
3.3A max individual contact, 3A max simultaneous (25°C)
Operating Temperature:
-55°C to +125°C
Soldering Data:
Max Solder Temperature: 235°C for 5 seconds
Style of Jackscrews:
Floating Jackscrew with Hex Slotted Head (Standard Gender)
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
34
Entry Style:
Top Entry
Materials
Finish / Plating on Termination:
Tin/Lead
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Housing Material:
PPS
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tube
Dimensions
Individual Part Weight:
3.071g
Overall Dimensions (L x W x D) in mm:
44.00 x 5.50 x 8.50
Thread Size:
M2
Height of Connector above PCB:
5.50mm
Length of Throughboard Tail:
3.00mm
Mating Profiles:
Frequently Asked Questions Ask a Question
What torque value should be used for these jackscrews?
The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).
