  • M80-4002642 - 13+13 Pos. Female DIL Vertical Throughboard Conn. Jackscrews

M80-4002642

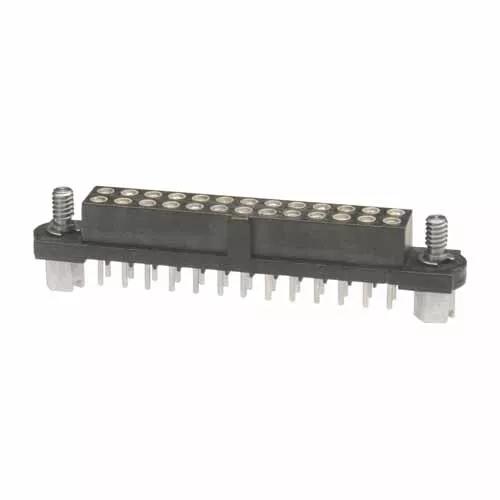

13+13 Pos. Female DIL Vertical Throughboard Conn. Jackscrews

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

  • Double Row, 3mm PC Tail connector with Hexagonal slotted jackscrews - 26 contacts (13+13).
  • Gold finish on contact clip, Tin finish on termination.

Active

Popular product: currently in stock in network

RoHS Compliant - 2011/65/EU

(Requires exemption 6c)

Product Stock

Distributor Name Location of Stock Qty
Anglia Europe 6 Website
Digi-Key Global 119 Buy Now
Farnell Europe 19 Buy Now
Mouser Electronics Inc Global 40 Buy Now
Newark USA 30 Buy Now
Harwin Europe 364

Stock available: contact distributor to purchase

Product Information

Specification

+
Product Type: 2.00mm Pitch High-Reliability Connector - Datamate J-Tek
Contact Pitch: 2.00mm (0.079")
Contact Gender: Female/Socket/Jack
Connector Orientation: Vertical
Connection Type: PC Tail / Throughboard
Mating Pin Size: Ø0.5mm
Current Rating: 3A
Operating Temperature: -55°C to +125°C
Soldering Data: Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews: Hex Slotted

Materials

+
Finish/Plating on Termination: 100% Tin over Nickel
Finish/Plating on Contact Surface: Gold
Base Material of Contact: Beryllium Copper contact clip, Brass shell
Housing Material: PPS
Housing Color: Black
Housing Material UL Rating: UL94V-0
Individual Part Weight: 2.514g
Packaging Style: Tube

Dimensions

+
Number of Rows: 2
Total Number of Contacts: 26
Body Length: 36mm
Height of Connector above PCB: 5.5mm
End Stackable: No
Side Stackable: No
Polarising Features: Yes
Can be cut to another size: No
Thread Size: M2
Length of PC Tail: 3mm
Entry Style: Top Entry
Mating Profiles/Heights

Related Products

+
Dummy Contacts (for keying): M80-023
Product Family: M80-400
