Active Product

M80-4000000FC-02-326-00-000

2 Pos. Female SIL 14AWG Cable Conn. Kit, 101Lok

4.00mm Pitch High-Reliability Connector - Datamate Power

Order Sample

Add to Favorites

Made to order

5 similiar products View products

Samacsys account required

Download

No login is required

Product Description

Complete kit: housing (with 101Lok slotted head) with 2 x power contacts supplied loose.
Power solder contact suitable for 14AWG. Gold finish on contact area and termination.
For complete pin numbering or pin out information, see Component Specification C005XX.

M80-4000000FC-02-326-00-000 - 2 Pos. Female SIL 14AWG Cable Conn. Kit, 101Lok

Youtube video for M80-4000000FC-02-326-00-000

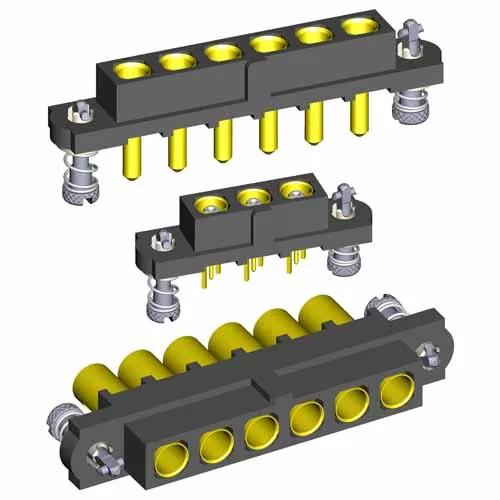

Representative image of product family

Samacsys account required

Download

No login is required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Solder)

Cable Conductor Size:

14AWG

Current Rating:

15A max per contact

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

101Lok Bayonet Fixing with Slotted Head

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Special (Power or Coax) Contacts:

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Single Pack

Individual Part Weight:

1.639g

Overall Dimensions (L x W x D) in mm:

18.00 x 5.50 x 12.80

Mating Profiles:

Catalog page - Datamate Mix-Tek Pin Numbering, Mating Profiles

Frequently Asked Questions Ask a Question

No questions have been asked yet. Click here to ask a question.
