Active Product

M80-4000000F3-04-307-00-000

4 Pos. Female SIL RG174/179/316 Cable Conn. Kit, Guide Pin Panel Mount

4.00mm Pitch High-Reliability Connector - Datamate Coax

Order Sample

Add to Favorites

In stock Check availability

7 similar products View products

Traceparts account required

Product Description

Complete kit: housing (with guide pin + 5mm panel mount jackscrews) with 4 x coax contacts and slotted nuts supplied loose. For spare panel mount nuts, order M80-2130000B.
Coax crimp contact suitable for RG174, RG179 & RG316 (Ø2.7mm max insulation diameter). Gold finish on contact area and termination.
For complete pin numbering or pin out information, see Component Specification C005XX.

M80-4000000F3-04-307-00-000 - 4 Pos. Female SIL RG174/179/316 Cable Conn. Kit, Guide Pin Panel Mount

Youtube video for M80-4000000F3-04-307-00-000

CAD drawing of M80-4000000F3-04-307-00-000

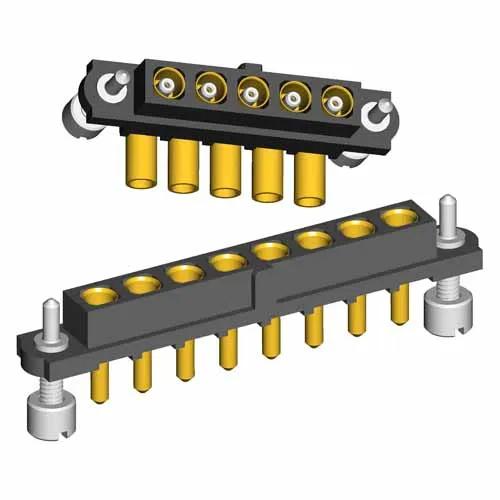

Representative image of product family

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

Ø2.7mm (RG174, RG179, RG316)

Current Rating:

0.5A per contact

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Guide Pin with Front Panel Mount Stud (Standard Gender)

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Special (Power or Coax) Contacts:

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper inner contact, Brass outer shell

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Single Pack

Individual Part Weight:

3.24g

Overall Dimensions (L x W x D) in mm:

26.00 x 5.50 x 14.20

Thread Size:

Mating Profiles:

Catalog page - Datamate Mix-Tek Pin Numbering, Mating Profiles

Frequently Asked Questions Ask a Question

Yes, these connectors are supplied with the board/panel mount nuts – they will come packaged in a separate bag. If you need some spares, you can use part number M80-2130000B to order more.

Was this answer useful?

The torque value for board or panel mounting is 21±2cmN. This value is given in the Component Specification C005xx (page 14).

Was this answer useful?
