M80-4000000F2-12-325-00-000

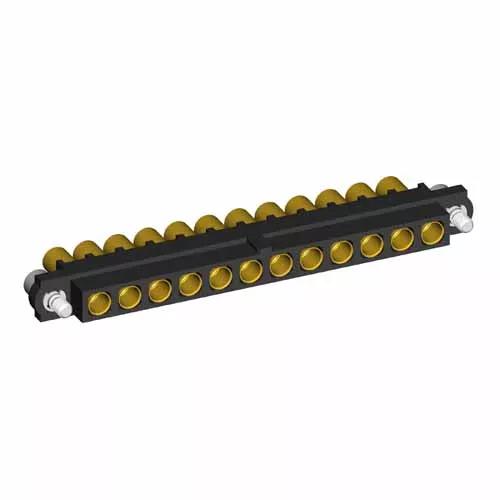

12 Pos. Female SIL 12AWG Cable Conn. Kit, Jackscrews


4.00mm Pitch High-Reliability Connector - Datamate Power

  • Complete kit: housing (with hexagonal socket jackscrews) with 12 x power contacts supplied loose.

  • Power solder contact suitable for 12 AWG. Gold finish on contact area and termination.

  • For complete pin numbering or pin out information, see Component Specification C005XX.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Technical Details

Specifications

  • Contact Pitch:

    4.00mm (0.157")

  • Contact Gender:

    Female/Socket/Jack

  • Connector Orientation:

    Straight

  • Wire Size:

    12 AWG

  • Style of Jackscrews:

    Floating Jackscrew with Hex Socket Head (Standard Gender)

  • End Stackable:

    No

  • Side Stackable:

    No

  • Number of Rows:

    1

  • Number of Special (Power or Coax) Contacts:

    12

  • Finish / Plating on Termination:

    Gold

  • Finish / Plating on Contact Surface:

    Gold

  • Base Material of Contact:

    Brass

  • Housing Material:

    PPS

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Single Pack

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Connection Type:

    Cable (Solder)

  • Current Rating:

    20A max per contact

  • Weight:

    6.711g

  • Dimensions:

    58.00 x 5.50 x 13.00

  • Operating Temperature:

    -55°C to +125°C

  • Polarised:

    Yes

  • Cuttable:

    No

  • Housing Colour:

    Black

  • Thread Size:

    M2
