M80-4000000F2-08-325-00-000

8 Pos. Female SIL 12AWG Cable Conn. Kit, Jackscrews

4.00mm Pitch High-Reliability Connector - Datamate Power

Order Sample

Add to Favorites

In stock Check availability

7 similar products View products

Traceparts account required

Product Description

Complete kit: housing (with hexagonal socket jackscrews) with 8 x power contacts supplied loose.
Power solder contact suitable for 12AWG. Gold finish on contact area and termination.
For complete pin numbering or pin out information, see Component Specification C005XX.

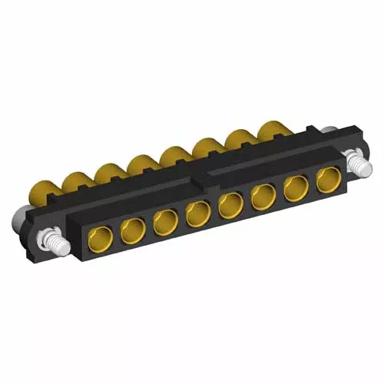

M80-4000000F2-08-325-00-000 - 8 Pos. Female SIL 12AWG Cable Conn. Kit, Jackscrews

Youtube video for M80-4000000F2-08-325-00-000

CAD drawing of M80-4000000F2-08-325-00-000

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Solder)

Cable Conductor Size:

12AWG

Current Rating:

20A max per contact

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Floating Jackscrew with Hex Socket Head (Standard Gender)

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Special (Power or Coax) Contacts:

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Single Pack

Individual Part Weight:

4.716g

Overall Dimensions (L x W x D) in mm:

42.00 x 5.50 x 13.00

Thread Size:

Mating Profiles:

Catalog page - Datamate Mix-Tek Pin Numbering, Mating Profiles

Frequently Asked Questions Ask a Question

The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).
