Active Product

M80-4000000F2-08-321-00-000

8 Pos. Female SIL Vertical Throughboard Conn. Jackscrews

4.00mm Pitch High-Reliability Connector - Datamate Power

Order Sample

Add to Favorites

In stock Check availability

2 similar products View products

Traceparts account required

Product Description

Hexagonal socket jackscrews, 8 x power contacts assembled for vertical PCB connection.
3.5mm length PC Tail. Gold finish on contact area and termination.
For complete pin numbering or pin out information, see Component Specification C005XX.

M80-4000000F2-08-321-00-000 - 8 Pos. Female SIL Vertical Throughboard Conn. Jackscrews

Youtube video for M80-4000000F2-08-321-00-000

CAD drawing of M80-4000000F2-08-321-00-000

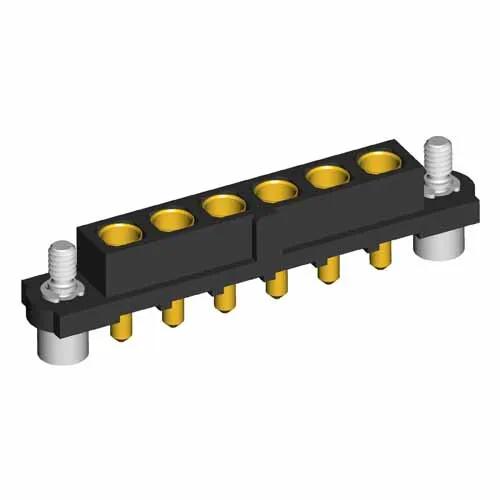

Representative image of product family

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Current Rating:

20A max per contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Floating Jackscrew with Hex Socket Head (Standard Gender)

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Special (Power or Coax) Contacts:

Entry Style:

Top Entry

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Single Pack

Individual Part Weight:

2.729g

Overall Dimensions (L x W x D) in mm:

42.00 x 5.50 x 9.00

Thread Size:

Height of Connector above PCB:

5.50mm

Length of Throughboard Tail:

3.50mm

Mating Profiles:

Catalog page - Datamate Mix-Tek Pin Numbering, Mating Profiles

Frequently Asked Questions Ask a Question

The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).
