Home > M80-4000000F2-06-307-00-000
Active Product

M80-4000000F2-06-307-00-000

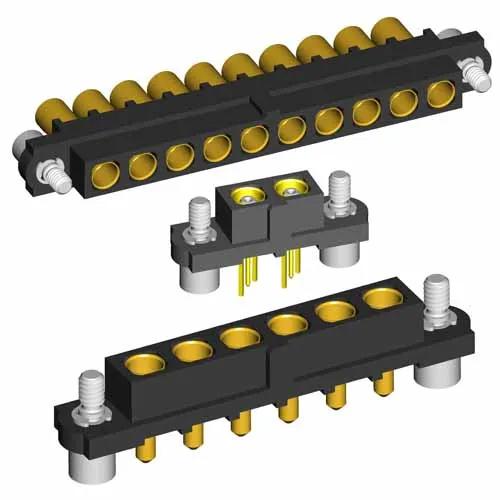

6 Pos. Female SIL RG174/179/316 Cable Conn. Kit, Jackscrews

4.00mm Pitch High-Reliability Connector - Datamate Coax

Add to Favorites

Made to order

6 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Complete kit: housing (with hexagonal socket jackscrews) with 6 x coax contacts supplied loose.
  • Coax crimp contact suitable for RG174, RG179 & RG316 (Ø2.7mm max insulation diameter). Gold finish on contact area and termination.
  • For complete pin numbering or pin out information, see Component Specification C005XX.

Technical Details

Specification

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

Ø2.7mm (RG174, RG179, RG316)

Current Rating:

0.5A per contact

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Floating Jackscrew with Hex Socket Head (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Special (Power or Coax) Contacts:

6

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper inner contact, Brass outer shell

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Single Pack

Dimensions

Individual Part Weight:

4.109g

Overall Dimensions (L x W x D) in mm:

34.00 x 5.50 x 13.70

Thread Size:

M2

Frequently Asked Questions Ask a Question

What torque value should be used for these jackscrews?

The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with Exemption 6c
