Home > M80-4000000F2-02-301-00-000
Active Product

M80-4000000F2-02-301-00-000

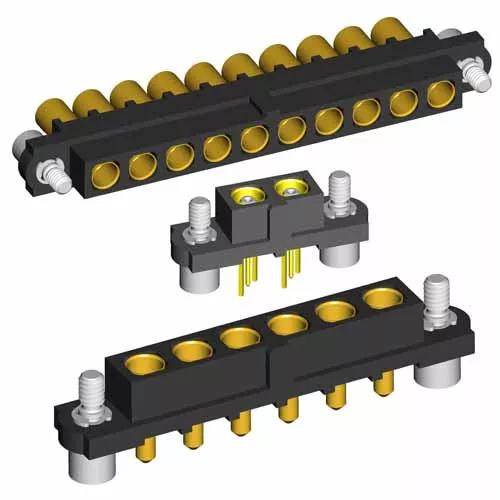

2 Pos. Female SIL Vertical Throughboard Conn. Jackscrews

4.00mm Pitch High-Reliability Connector - Datamate Coax

Add to Favorites

Made to order

5 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Hexagonal socket jackscrews, 2 x coax contacts assembled for vertical PCB connection.
  • 3mm length PC Tail. Gold finish on contact area and termination.
  • For complete pin numbering or pin out information, see Component Specification C005XX.

Technical Details

Specification

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Current Rating:

0.5A per contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Floating Jackscrew with Hex Socket Head (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Special (Power or Coax) Contacts:

2

Entry Style:

Top Entry

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper inner contact, Brass outer shell

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Single Pack

Dimensions

Individual Part Weight:

1.141g

Overall Dimensions (L x W x D) in mm:

18.00 x 5.50 x 8.50

Thread Size:

M2

Height of Connector above PCB:

5.50mm

Length of Throughboard Tail:

3.00mm

Frequently Asked Questions Ask a Question

What torque value should be used for these jackscrews?

The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF Download

INSTRUCTION SHEETS

OTHER DOWNLOADS
