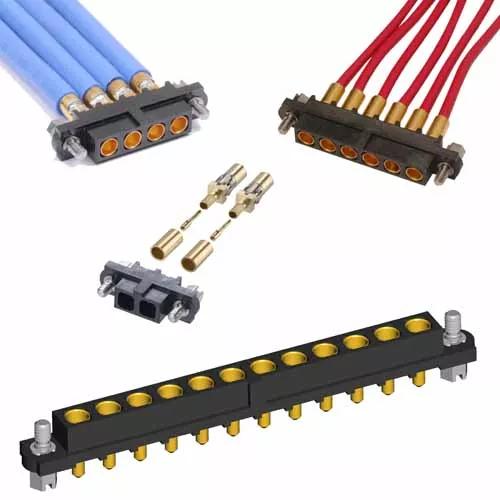

9 Pos. Female SIL RG174/179/316 Cable Conn. Kit, Jackscrews
4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek
- Complete kit: housing (with hexagonal slotted jackscrews) with 9 x coax contacts supplied loose.
- Coax crimp contact suitable for RG174, RG179 & RG316 (Ø2.7mm max insulation diameter).
EU RoHS Status:
Cable Conductor Size:
Ø2.7mm (RG174, RG179, RG316)
-55°C to +125°C
Style of Jackscrews:
Can be cut to another size:
Number of Rows:
Number of Special (Power or Coax) Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Beryllium Copper inner contact, Brass outer shell
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
46.00 x 5.50 x 13.70
M80-4000000F1-09-307-00-000 CAD Model (ZIP file containing STP)Download
Test Report HT004 - Datamate J-Tek Environmental - Vibration, Shock, Bump, Acceleration and other tests
Test Report HT020 - Datamate Mix-Tek Special Contacts - Environmental, Mechanical and Electrical
Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews
