4.00mm Pitch High-Reliability Connector - Datamate Coax

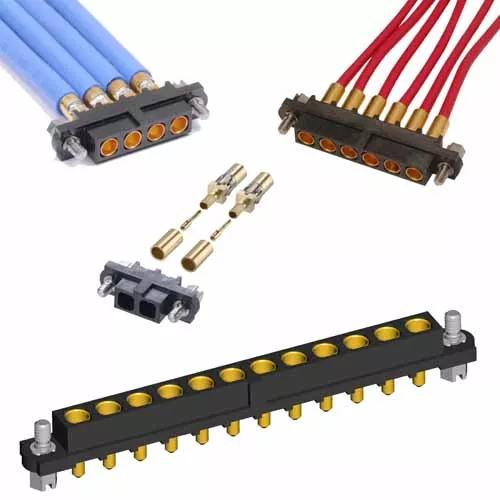

Complete kit: housing (with hexagonal slotted jackscrews) with 6 x coax contacts supplied loose.
Coax crimp right-angled contact suitable for RG178 (Ø2mm max insulation diameter). Gold finish on contact area and termination.
For complete pin numbering or pin out information, see the Component Specification C005XX.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
Screw Fixing (floating) with Slotted Head
Number of Rows:
1
Connector Orientation:
Straight
Country of Origin:
GB
Side Stackable:
No
Number of Power/Coax Contacts:
6
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating:
0.5A per contact
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
PPS
Base Material of Contact:
Beryllium Copper inner contact, Brass outer shell
Flammability Rating:
UL94V-0
Packaging Style:
Single Pack
Finish / Plating on Termination:
Gold
Housing Colour:
Black
Dimensions
Contact Pitch:
4.00mm (0.157")
Weight:
4.504g
Dimensions:
34.00 x 9.70 x 10.50 max
Thread Size:
M2
Wire Size:
Ø2mm (RG178)
Downloads
Technical Drawing / Datasheet - M80-4000000F1-XX-XXX-00-000.pdf
C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)
C049XX Component Specification - Cable Assembly Specifications for all HRi products
Outgassing data for Harwin products (plastics)
Plating thickness on Datamate power and coax contacts
Catalog page - Datamate Mix-Tek Pin Numbering + Mating Profiles
Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability
Product Training Module - Guide to Datamate Latches (L-Tek) + Jackscrews (J-Tek) and 101Lok
Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews
Product Training Module - Cable Connectors and Assemblies from Harwin
Product Training Module - Cable Products from Harwin
IS-34 - Z80-292 and Z90-293 Hand Crimp Tools Instruction Sheet
IS-52 - Datamate Mix-Tek Assembly and Contact Removal Instruction Sheet
Distributor part numbers for suitable cables for Datamate + Gecko + M300 & Kona
Product Datasheet - Datamate Mix-Tek range (HRi)
Test Report HT001 - Datamate Mechanical Endurance - number of cycles + up to 10 +000
Test Report HT002 - Datamate Voltage Proof + Voltage Flashover + and Insulation Resistance
Test Report HT004 - Datamate J-Tek Environmental - Vibration + Shock + Bump + Acceleration and other tests
Test Report HT015 - Datamate Environmental (Vibration + Shock + Bump) - J-Tek and 101Lok
Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging
Test Report HT020 - Datamate Mix-Tek Special Contacts - Environmental + Mechanical and Electrical
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement - includes all material legislations
RoHS - M80-4000000F1-06-308-00-000
