M80-4000000F1-06-305-00-000

6 Pos. Female SIL RG178 Cable Conn. Kit, Jackscrews

4.00mm Pitch High-Reliability Connector - Datamate Coax

Add to Favorites

Made to order

7 similiar products View products

Samacsys account required

Download

No login is required

Product Description

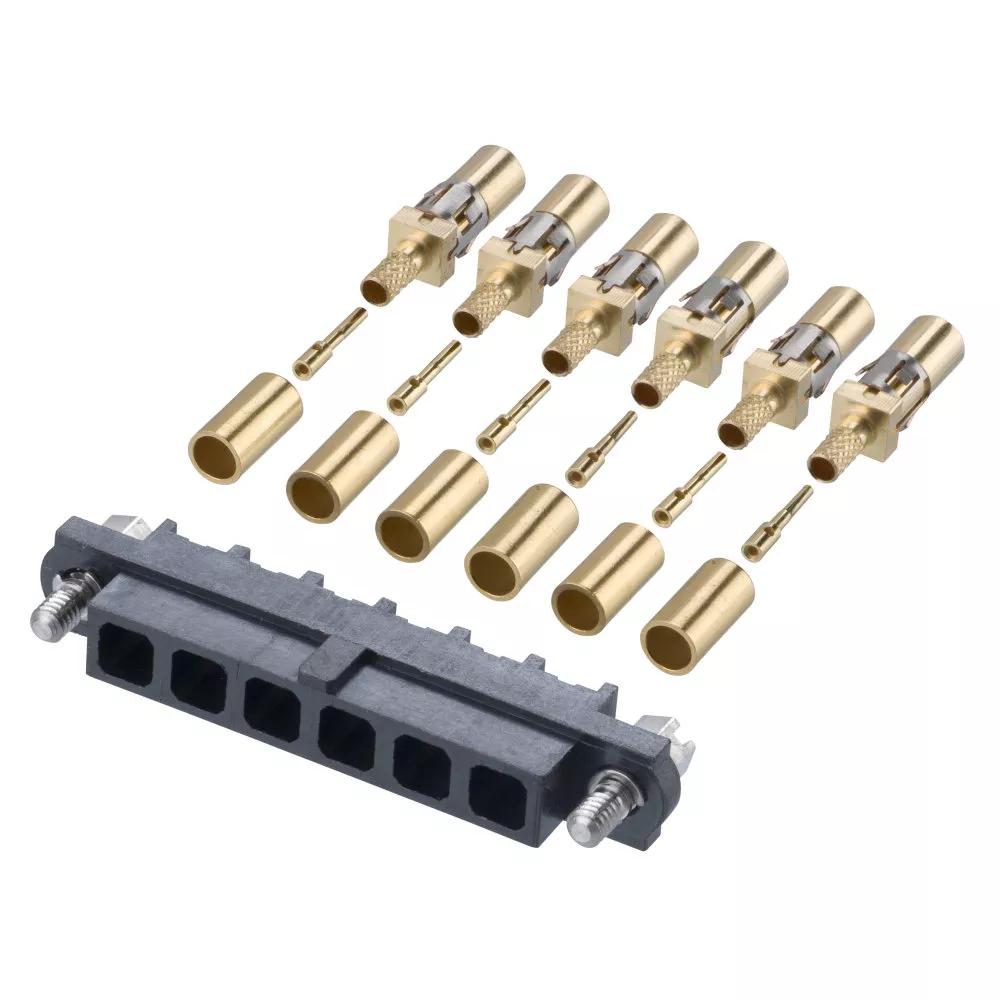

  • Complete kit: housing (with hexagonal slotted jackscrews) with 6 x coax contacts supplied loose. Identical to off-the shelf product M80-FC305F1-06.
  • Coax crimp contact suitable for RG178 (Ø2mm max insulation diameter). Gold finish on contact area and termination.
  • For complete pin numbering or pin out information, see Component Specification C005XX.

Technical Details

Specification

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

Ø2mm (RG178)

Current Rating:

0.5A per contact

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Floating Jackscrew with Hex Slotted Head (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Special (Power or Coax) Contacts:

6

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper inner contact, Brass outer shell

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Single Pack

Dimensions

Individual Part Weight:

3.784g

Overall Dimensions (L x W x D) in mm:

34.00 x 5.50 x 13.70

Thread Size:

M2

Frequently Asked Questions Ask a Question

What torque value should be used for these jackscrews?

The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).
