Home > M80-4000000F1-05-325-00-000
Active Product

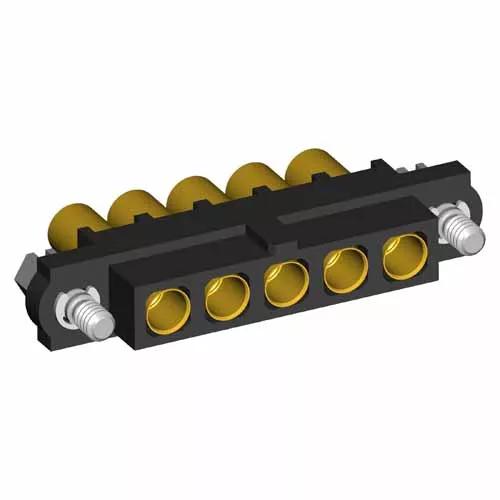

M80-4000000F1-05-325-00-000

5 Pos. Female SIL 12 AWG Cable Conn. Kit, Jackscrews

4.00mm Pitch High-Reliability Connector - Datamate Power

Add to Favorites

Loading…   Check availability

7 similar products View products

Traceparts account required

Product Description

  • Complete kit: housing (with hexagonal slotted jackscrews) with 5 x power contacts supplied loose.
  • Power solder contact suitable for 12 AWG. Gold finish on contact area and termination.
  • For complete pin numbering or pin out information, see Component Specification C005XX.

Technical Details

Specification

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Solder)

Cable Conductor Size:

12 AWG

Current Rating:

20A max per contact

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Floating Jackscrew with Hex Slotted Head (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Special (Power or Coax) Contacts:

5

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Single Pack

Dimensions

Individual Part Weight:

3.213g

Overall Dimensions (L x W x D) in mm:

30.00 x 5.50 x 13.00

Thread Size:

M2

Frequently Asked Questions Ask a Question

What torque value should be used for these jackscrews?

The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with Exemption 6c
