M80-4000000F1-04-325-00-000

4 Pos. Female SIL 12AWG Cable Conn. Kit, Jackscrews

4.00mm Pitch High-Reliability Connector - Datamate Power

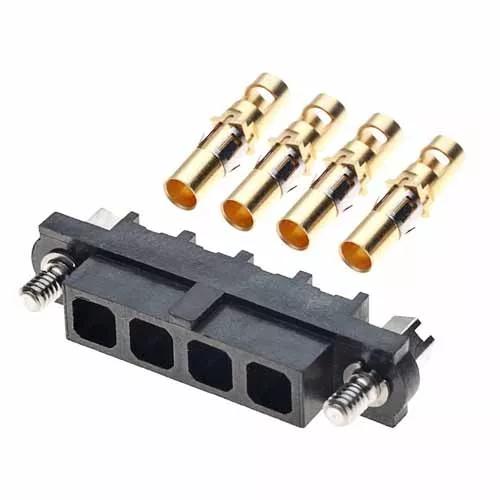

  • Complete kit: housing (with hexagonal slotted jackscrews) with 4 x power contacts supplied loose.
  • Power solder contact suitable for 12AWG. Gold finish on contact area and termination.
  • For complete pin numbering or pin out information, see Component Specification C005XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Solder)

Cable Conductor Size:

12AWG

Current Rating:

20A max per contact

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Floating Jackscrew with Hex Slotted Head (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Special (Power or Coax) Contacts:

4

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Single Pack

Dimensions

Individual Part Weight:

2.714g

Overall Dimensions (L x W x D) in mm:

26.00 x 5.50 x 13.00

Thread Size:

M2

Availability

2,282 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 839
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 541
Distributor Farnell
Location Europe
Quantity (Updated Daily) 272
Distributor Genalog
Location Europe
Quantity (Updated Daily) 232
Distributor Newark
Location USA
Quantity (Updated Daily) 170
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 74
Distributor Anglia
Location Europe
Quantity (Updated Daily) 59
Distributor Powell Electronics
Location Global
Quantity (Updated Daily) 53
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 42

Questions & Answers Ask a Question

M80-4000000F1-04-325-00-000 is for AWG12 wire – can you install AWG16?

The 325 contact is designed to accommodate 12AWG wire, so using a 16AWG will have a lot of additional space to fill with solder around the wire. We have not tested this to confirm if this would give a suitable solder joint. We recommend instead using the 327 contact, which is designed to suit 16AWG. You can achieve this in two ways. A) Order M80-4000000F1-04-327-00-000 instead, this will come supplied with the right size contact – however, it may not be a stocked item, you may need to order to lead-time. B) Order M80-4000000F1-04-325-00-000 and additional contacts M80-327, and use the additional contacts instead of the ones supplied with the connector kit – it will be more expense, but both products are stocked if you need a fast solution.

What tooling would be recommended for this connector’s terminals?

The only tooling we specify for this connector is the extraction tool Z80-290 – you only require this tool if you need to extract a contact from the housing. No tooling is supplied by Harwin for soldering the contacts, and no tooling is required for inserting the contacts into the housing.

What torque value should be used for these jackscrews?

The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).
