M80-4000000F1-04-321-00-000

4 Pos. Female SIL Vertical Throughboard Conn. Jackscrews

HRi

Traceparts account required

M80-4000000F1-04-321-00-000

4 Pos. Female SIL Vertical Throughboard Conn. Jackscrews


4.00mm Pitch High-Reliability Connector - Datamate Power

  • Hexagonal slotted jackscrews, 4 x power contacts assembled for vertical PCB connection.

  • 3.5mm length PC Tail. Gold finish on contact area and termination.

  • For complete pin numbering or pin out information, see Component Specification C005XX.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Technical Details

Specifications

  • Contact Pitch:

    4.00mm (0.157")

  • Contact Gender:

    Female/Socket/Jack

  • Connector Orientation:

    Vertical

  • Style of Jackscrews:

    Floating Jackscrew with Hex Slotted Head (Standard Gender)

  • End Stackable:

    No

  • Side Stackable:

    No

  • Number of Rows:

    1

  • Number of Special (Power or Coax) Contacts:

    4

  • Entry Style:

    Top Entry

  • Finish / Plating on Termination:

    Gold

  • Finish / Plating on Contact Surface:

    Gold

  • Base Material of Contact:

    Brass

  • Housing Material:

    PPS

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Single Pack

  • Height of Connector above PCB:

    5.50mm

  • PC Tail Length:

    3.50mm

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Connection Type:

    PC Tail / Throughboard

  • Current Rating:

    20A max per contact

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

  • Weight:

    1.715g

  • Dimensions:

    26.00 x 5.50 x 9.00

  • Operating Temperature:

    -55°C to +125°C

  • Polarised:

    Yes

  • Cuttable:

    No

  • Housing Colour:

    Black

  • Thread Size:

    M2

Downloads

    Environmental Compliance

  • RoHS - M80-4000000F1-04-321-00-000

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Technical Documentation

  • Outgassing data for Harwin products (plastics)

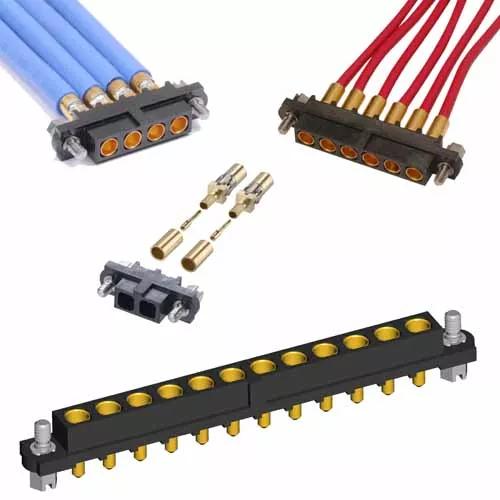

Cable Assembly
