Home > M80-4000000F1-02-PF5-00-000
Active Product

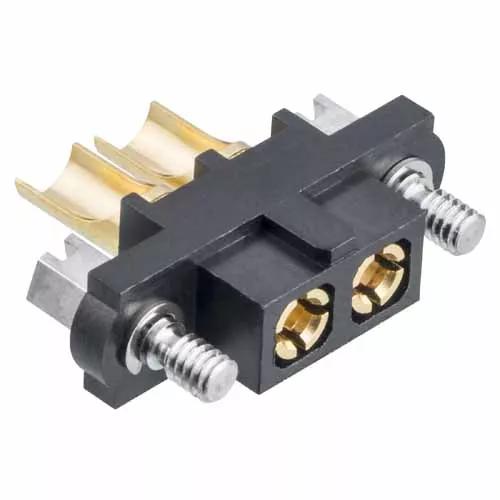

M80-4000000F1-02-PF5-00-000

2 Pos. Female SIL 10 AWG Cable Conn. Kit, Jackscrews

4.00mm Pitch High-Reliability Connector - Datamate Power

Add to Favorites

Loading…   Check availability

6 similar products View products

Traceparts account required

Product Description

  • Complete kit: housing (with hexagonal slotted jackscrews) with 2 x power contacts supplied loose.
  • Rated to 40A nominal, Power solder contact suitable for 10 AWG. Gold finish on contact area and termination.
  • For complete pin numbering or pin out information, see Component Specification C005XX.

Technical Details

Specification

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Solder)

Cable Conductor Size:

10 AWG

Current Rating:

40A max per contact

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Floating Jackscrew with Hex Slotted Head (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Special (Power or Coax) Contacts:

2

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Single Pack

Dimensions

Individual Part Weight:

1.738g

Overall Dimensions (L x W x D) in mm:

18.00 x 5.50 x 14.00

Thread Size:

M2

Frequently Asked Questions Ask a Question

Can I use a Metal Backshell (M80-945 or M80-946) with this connector?

Sorry no, I’m afraid the metal backshells are not compatible with Datamate Mix-Tek connectors fitted with 10AWG High Power contacts. You will need to specify an alternative contact from the standard power contacts (32x or M80-32x), one that uses 12 to 20AWG cable. Do please contact our Experts if you need assistance specifying an alternative.

Was this answer useful?

We see the power contacts are up to 80A peak. What is the duration of the peak current pulse?

You can see further information on the testing carried out on current in the Test Report HT040 – the current rating was established using a continuous current. Pulse current was not used, and may give a different result. We would recommend that if this is an important criteria for you, you should carry out your own testing. If you need further advice or more detail on any aspects of the test report, please contact our Experts.

Was this answer useful?

What torque value should be used for these jackscrews?

The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with Exemption 6c
