M80-4000000F1-02-325-00-000

2 Pos. Female SIL 12AWG Cable Conn. Kit, Jackscrews

4.00mm Pitch High-Reliability Connector - Datamate Power

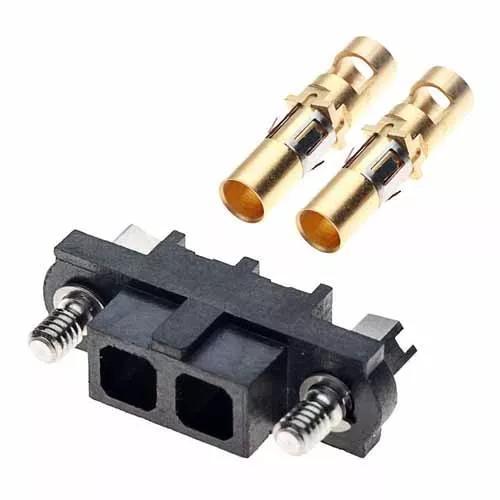

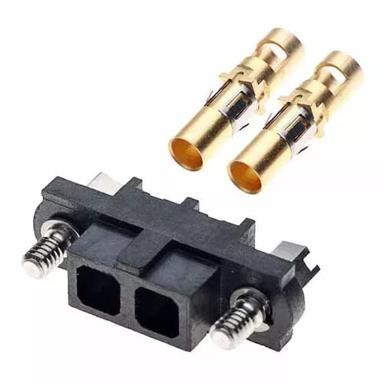

Complete kit: housing (with hexagonal slotted jackscrews) with 2 x power contacts supplied loose.
Power solder contact suitable for 12AWG. Gold finish on contact area and termination.
For complete pin numbering or pin out information, see Component Specification C005XX.

Add to Basket

Availability

M80-4000000F1-02-325-00-000 - 2 Pos. Female SIL 12AWG Cable Conn. Kit, Jackscrews

Youtube video for M80-4000000F1-02-325-00-000

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Solder)

Cable Conductor Size:

12AWG

Current Rating:

20A max per contact

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Floating Jackscrew with Hex Slotted Head (Standard Gender)

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Special (Power or Coax) Contacts:

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Single Pack

Individual Part Weight:

1.717g

Overall Dimensions (L x W x D) in mm:

18.00 x 5.50 x 13.00

Thread Size:

Mating Profiles:

Catalog page - Datamate Mix-Tek Pin Numbering, Mating Profiles
