M80-400000000-08-322-00-000

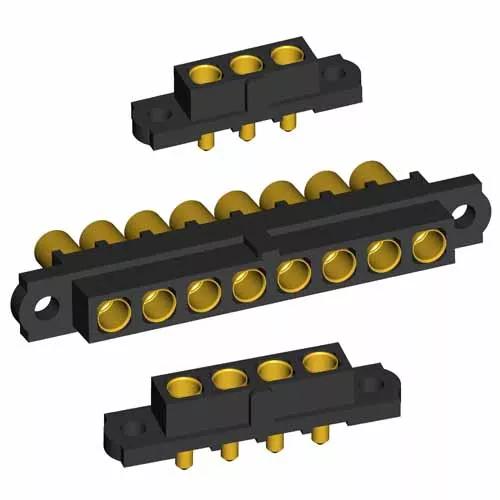

8 Pos. Female SIL Vertical Throughboard Conn. No Jackscrews
4.00mm Pitch High-Reliability Connector - Datamate Power
Made to order
4 similiar products View products
Samacsys account required
No login is required
Product Description
- No jackscrews, 8 x power contacts assembled for vertical PCB connection.
- 5mm length PC Tail. Gold finish on contact area and termination.
- For complete pin numbering or pin out information, see Component Specification C005XX.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
4.00mm (0.157")
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Vertical
Connection Type:
PC Tail / Throughboard
Current Rating:
20A max per contact
Operating Temperature:
-55°C to +125°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
None fitted
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
1
Number of Special (Power or Coax) Contacts:
8
Entry Style:
Side Entry
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Brass
Housing Material:
PPS
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Single Pack
Dimensions
Individual Part Weight:
2.54g
Overall Dimensions (L x W x D) in mm:
42.00 x 5.50 x 10.18
Height of Connector above PCB:
5.18mm
Length of Throughboard Tail:
5.00mm
Mating Profiles:
