Home > M80-33A
Active

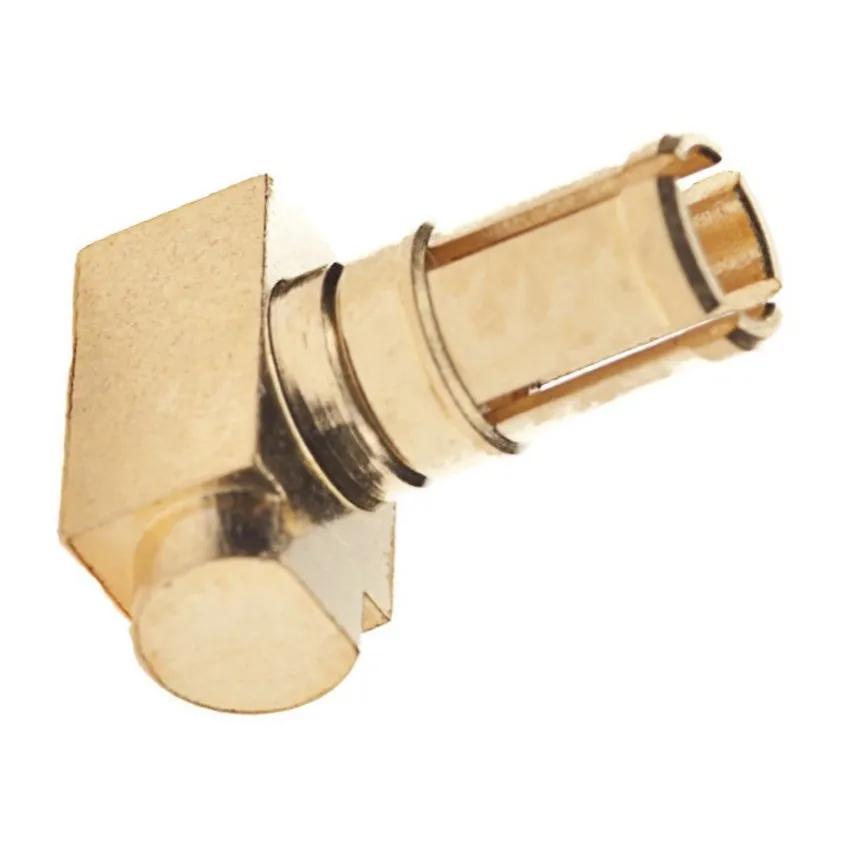

M80-33A

Male Horizontal SMT Power Contact

4.00mm Pitch High-Reliability Connector - Datamate Power

  • Horizontal orientation with surface mount.
  • Specified as 33A in a Mix-Tek connector part number.
  • Gold finish on contact area and termination.
Add to Favorites

Technical Details

Specification

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Male/Plug

Connector Orientation:

Horizontal

Connection Type:

Surface Mount (SMT)

Current Rating:

20A max per contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Number of Special (Power or Coax) Contacts:

1

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.452g

Overall Dimensions (L x W x D) in mm:

7.60 x 3.00 x 5.50

Height of Connector above PCB:

5.50mm

Availability

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Currently made to order*

* Please request minimum quantities, lead times and pricing from an authorized distributor.

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M80-33A.pdf

ZIP

M80-33A CAD Model (ZIP file containing STP and IGES)

Download
PDF

C005XX Component Specification - Datamate M80 and M83 Series (2.00mm, 4.00mm pitch High-Reliability)

TEST REPORTS

PDF

Test Report HT020 - Datamate Mix-Tek Special Contacts - Environmental, Mechanical and Electrical

PDF

Test Report HT035 - Datamate Mix-Tek Power Connectors - Mechanical and Electrical

PDF

Test Report HT078 - Datamate Mix-Tek 20A Power testing

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.1) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for M80-33A product

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Datamate range, 2 & 4mm pitch High-Reliability

OTHER DOWNLOADS

PDF

Catalog page - Datamate Mix-Tek Specification

PDF

Catalog page - Datamate Introduction

PDF

Plating thickness on Datamate special contacts (power and coax)
