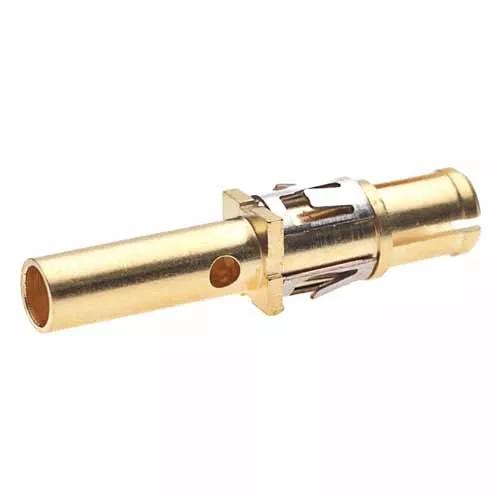

4.00mm Pitch High-Reliability Connector - Datamate Power
Straight Crimp, suitable for 18 AWG cable.
Specified as 338 in a Mix-Tek connector part number. Use with any male Datamate Mix-Tek housing in a power/coax cavity.
Gold finish on contact area and termination.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Information
Technical Documentation
Environmental Compliance
Test Reports
Technical Details
Product Characteristics
Connector Orientation:
Straight
Country of Origin:
GB
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating:
8A max per contact
Materials
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Beryllium Copper
Packaging Style:
Bulk/Loose
Finish / Plating on Termination:
Gold
Dimensions
Contact Pitch:
4.00mm (0.157")
Weight:
0.385g
Dimensions:
13.95 x 3.00 square
Wire Size:
18 AWG
Downloads
IS-29 - Z80-294 Hand Crimp Tool Instruction Sheet
IS-52 - Datamate Mix-Tek Assembly and Contact Removal Instruction Sheet
Product Training Module - Datamate Mix-Tek Housings
Product Datasheet - Datamate Mix-Tek range (HRi)
Distributor part numbers for suitable cables for Datamate + Gecko + M300 & Kona
Product Training Module - Cable Products from Harwin
Product Training Module - Cable Connectors and Assemblies from Harwin
Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability
Technical Drawing / Datasheet - M80-338-339.pdf
Plating thickness on Datamate power and coax contacts
C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)
C049XX Component Specification - Cable Assembly Specifications for all HRi products
Outgassing data for Harwin products (plastics)
RoHS - M80-338
Material composition for M80-338 product
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Environmental Legislation Statement - includes all material legislations
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
