Home > M80-337
Active

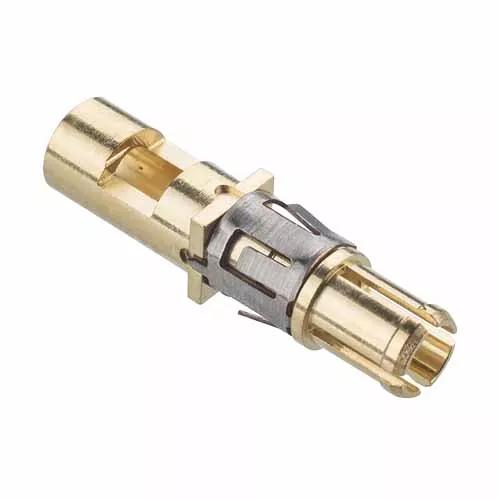

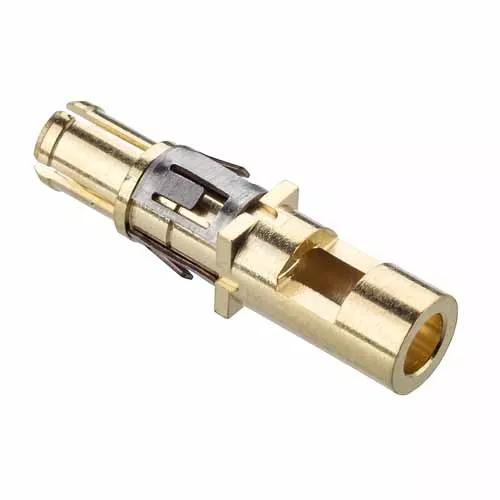

M80-337

Male 16AWG Straight Solder Power Contact

4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek

  • Straight Solder, suitable for 16AWG cable.
  • Specified as 337 in a Mix-Tek connector part number. Use with any male Datamate Mix-Tek housing in a power/coax cavity.
  • Gold plating finish.
Add to Favorites

Technical Details

Specification

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Male/Plug

Connector Orientation:

Straight

Connection Type:

Cable (Solder)

Cable Conductor Size:

16AWG

Current Rating:

10A

Operating Temperature:

-55°C to +125°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Number of Special (Power or Coax) Contacts:

1

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.43g

Overall Dimensions (L x W x D) in mm:

12.70 x 3.00 square

Availability

233 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 60
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 58
Distributor Farnell
Location Europe
Quantity (Updated Daily) 50
Distributor Newark
Location USA
Quantity (Updated Daily) 50

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 15

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M80-336-337.pdf

ZIP

M80-337 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C005XX Component Specification - Datamate M80 and M83 Series (2.00mm, 4.00mm pitch High-Reliability)

TEST REPORTS

PDF

Test Report HT020 - Datamate Mix-Tek Special Contacts - Environmental, Mechanical and Electrical

PDF

Test Report HT035 - Datamate Mix-Tek Power Connectors - Mechanical and Electrical

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

PDF

Material composition for M80-337 product

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Datamate range, 2 & 4mm pitch High-Reliability

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

OTHER DOWNLOADS

PDF

3D PDF file - M80-337_3D.pdf

PDF

Catalog page - Datamate Mix-Tek Power & Coax Contacts

PDF

Catalog page - Datamate Mix-Tek Specification

PDF

Catalog page - Datamate Introduction

XLSX

Distributor part numbers for suitable cables for Datamate, Gecko, M300

PDF

Product Summary - Datamate Mix-Tek Cable Housings
