M80-333

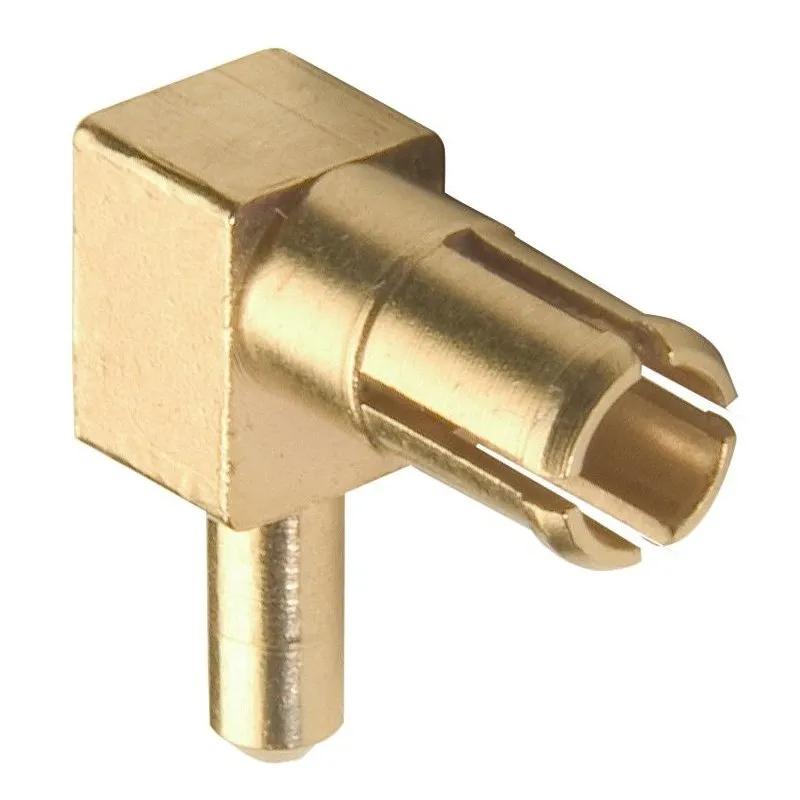

Male Horizontal Throughboard Power Contact

4.00mm Pitch High-Reliability Connector - Datamate Power

Add to Favorites

Loading…   Check availability

3 similar products View products

Traceparts account required

Product Description

  • Horizontal orientation with 3.5mm PC Tail.
  • Specified as 333 in a Mix-Tek connector part number.
  • Gold finish on contact area and termination.

Technical Details

Specification

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Male/Plug

Connector Orientation:

Horizontal

Connection Type:

PC Tail / Throughboard

Current Rating:

20A max per contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.47g

Overall Dimensions (L x W x D) in mm:

7.60 x 3.00 x 8.00

Height of Connector above PCB:

4.50mm

Length of Throughboard Tail:

3.50mm
