4.00mm Pitch High-Reliability Connector - Datamate Power

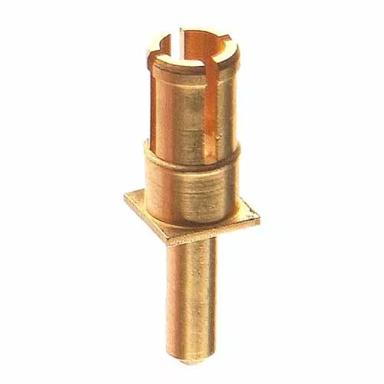

Vertical orientation with 5mm PC Tail.
Specified as 332 in a Mix-Tek connector part number.
Gold finish on contact area and termination.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
Connector Orientation:
Vertical
Country of Origin:
GB
Number of Power/Coax Contacts:
1
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating:
20A max per contact
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Materials
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Beryllium Copper
Packaging Style:
Bulk/Loose
Finish / Plating on Termination:
Gold
Dimensions
Contact Pitch:
4.00mm (0.157")
Weight:
0.252g
Dimensions:
10.40 x 3.00 square
PC Tail Length:
5.00mm
Height of Connector above PCB:
5.40mm
Downloads
Technical Drawing / Datasheet - M80-331-332.pdf
C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)
Plating thickness on Datamate power and coax contacts
Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability
Product Datasheet - Datamate Mix-Tek range (HRi)
Test Report HT020 - Datamate Mix-Tek Special Contacts - Environmental + Mechanical and Electrical
Test Report HT035 - Datamate Mix-Tek Power Connectors - Mechanical and Electrical
Test Report HT078 - Datamate Mix-Tek 20A Power testing
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement - includes all material legislations
Material composition for M80-332 product
RoHS - M80-332
