M80-331

M80-331

Male Plug Straight 3.5mm THT Power Contact

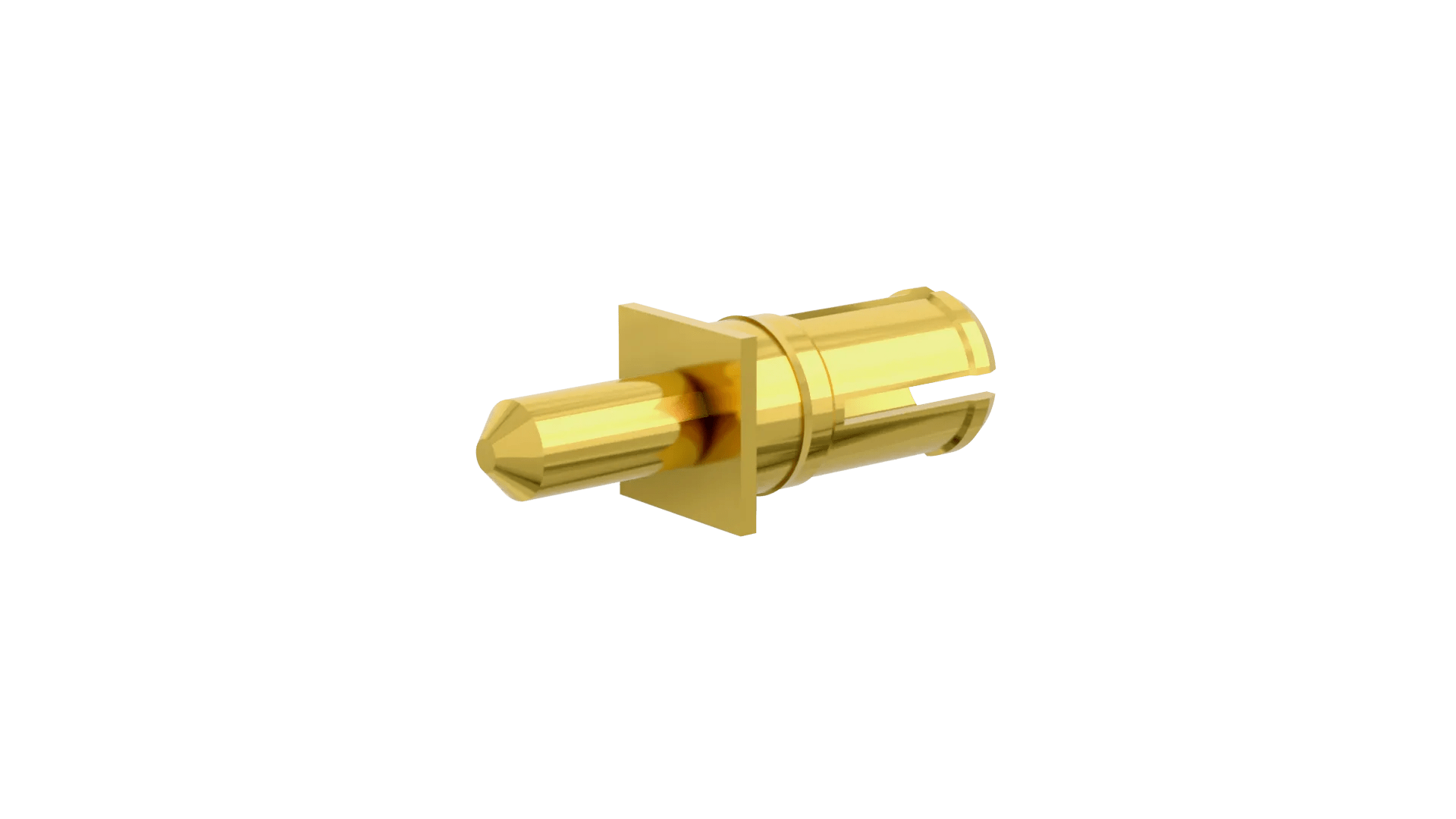

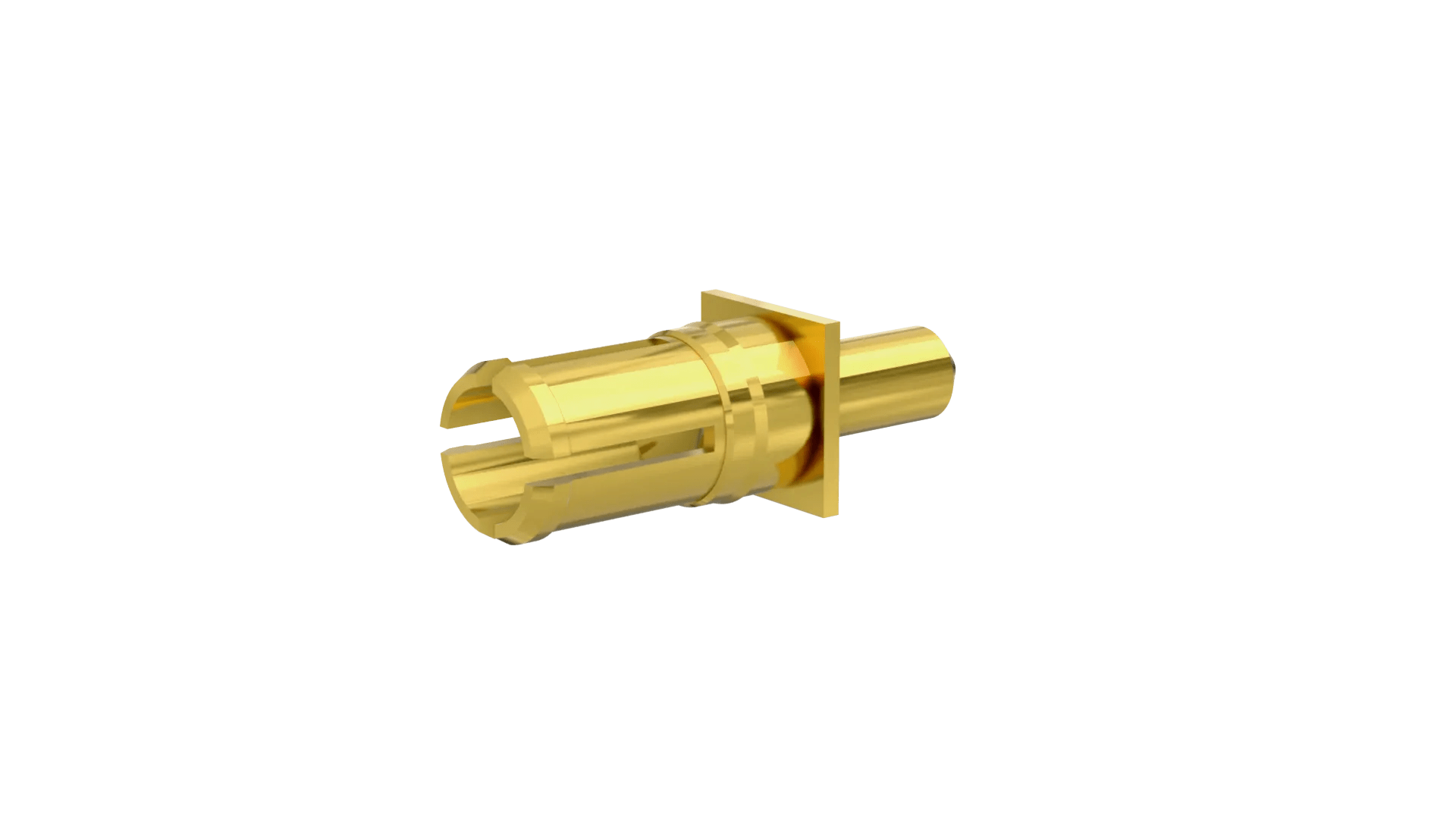

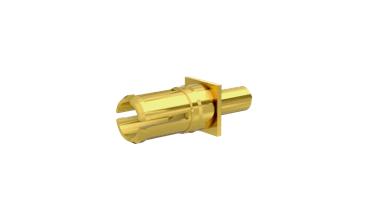

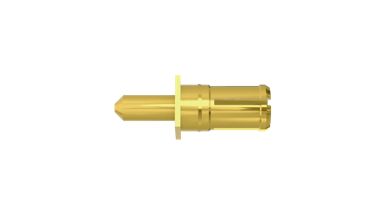

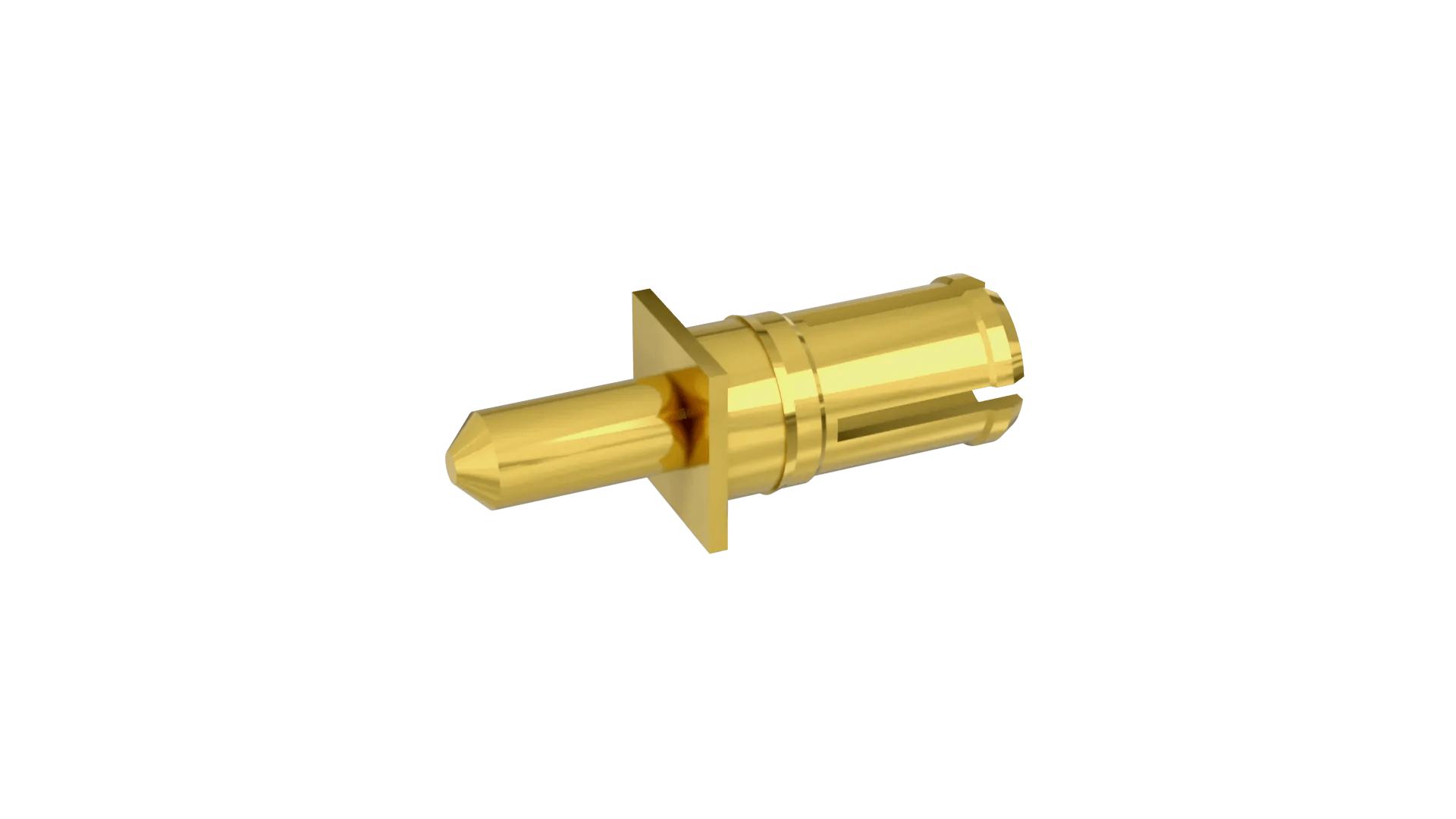

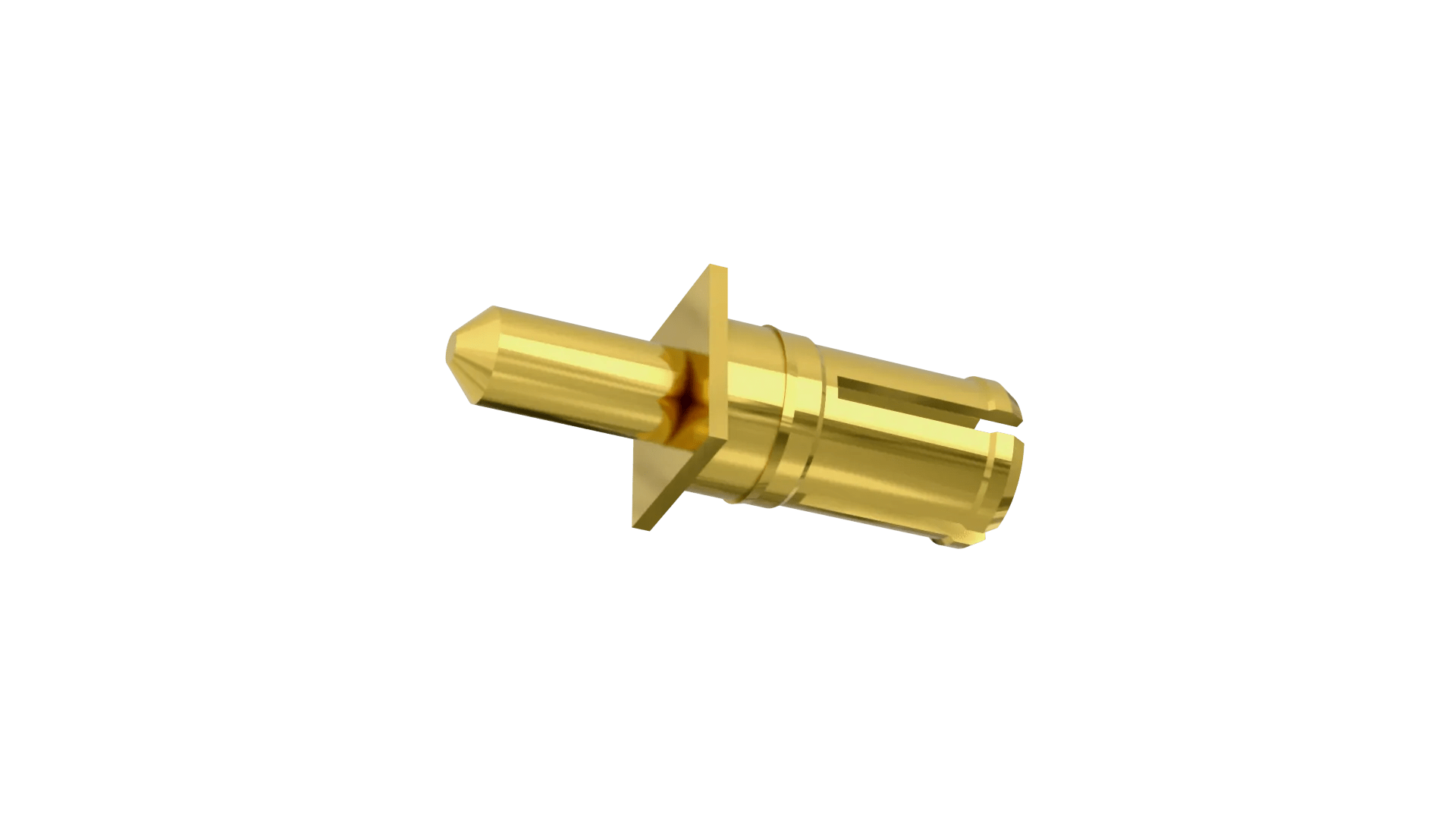

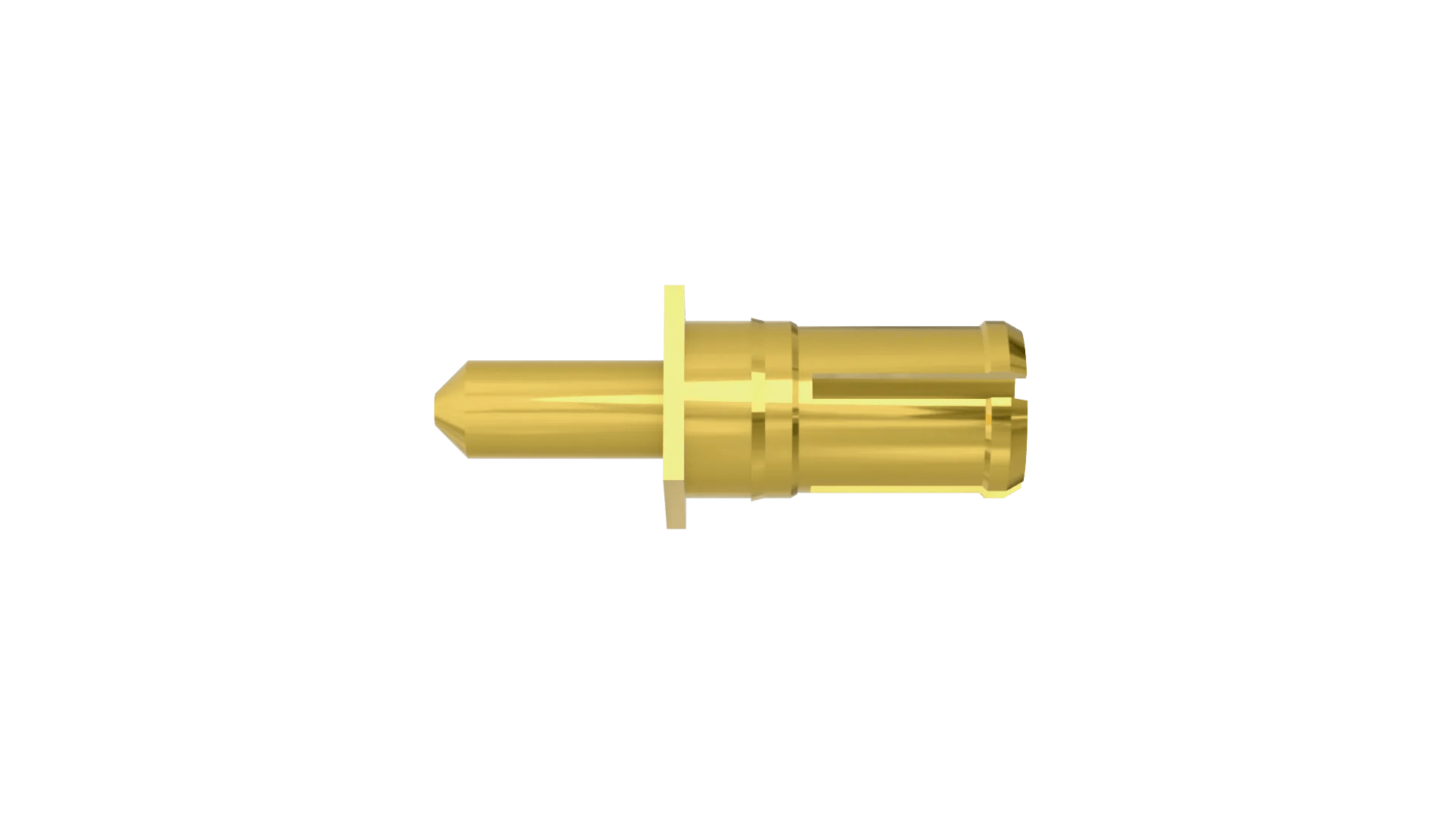

Image may be representative. Refer to the product title for more information.

M80-331

Male Plug Straight 3.5mm THT Power Contact

4.00mm Pitch High-Reliability Connector - Datamate Power

  • Individual male plug straight (vertical) Power contact, throughboard for PCB with 3.5mm termination. Up to 20A per Power contact nominal.

  • Specified as 331 in a Datamate Mix-Tek connector part number.

  • Gold finish on contact area and termination.

Checking stock availability...

Technical Drawings & CADs

Jump to technical details

  • Technical Drawing

    View

  • TraceParts

    CAD/ECAD

  • TraceParts

    3D Viewer

  • SamacSys

    3D Model, PCB Symbol & Footprint

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Technical Documentation

Product Information

Test Reports

Environmental Compliance

Technical Details

Product Characteristics

  • Connector Orientation

    Straight

  • Country of Origin

    GB

  • Number of Power/Coax Contacts

    1

  • Operating Temperature

    -55°C to +125°C

  • RoHS Status

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Current Rating

    20A max per contact

  • Soldering Data

    Max Solder Temperature: 260°C for 10 seconds

Materials

  • Finish / Plating on Contact Surface

    Gold

  • Base Material of Contact

    Beryllium Copper

  • Packaging Style

    Bulk/Loose

  • Finish / Plating on Termination

    Gold

Dimensions

  • Contact Pitch

    4.00mm (0.157")

  • Weight

    0.242g

  • Dimensions

    8.90 x 3.00 square

  • PC Tail Length

    3.50mm

  • Height of Connector above PCB

    5.40mm

Downloads

Technical Documentation

  • Technical Drawing / Datasheet - M80-331-332.pdf

  • C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)

  • Plating thickness on Datamate power and coax contacts

Product Information

  • Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability

  • Product Datasheet - Datamate Mix-Tek range (HRi)

Test Reports

  • Test Report HT020 - Datamate Mix-Tek Special Contacts - Environmental + Mechanical and Electrical

  • Test Report HT035 - Datamate Mix-Tek Power Connectors - Mechanical and Electrical

  • Test Report HT078 - Datamate Mix-Tek 20A Power testing

Environmental Compliance

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Environmental Legislation Statement

  • Material composition for M80-331 product

  • Harwin REACH Statement - M80-331

  • RoHS Declaration - M80-331
