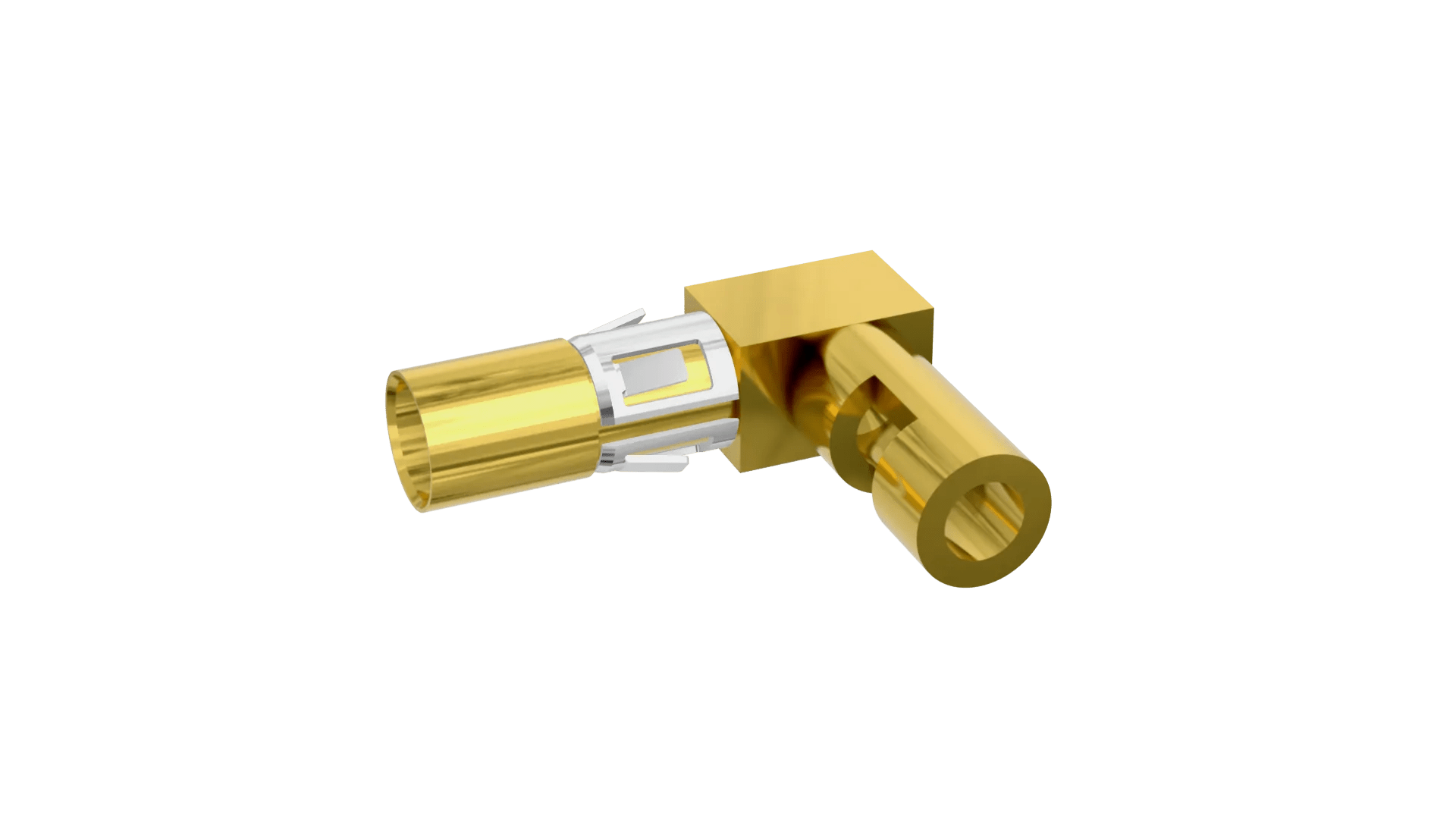

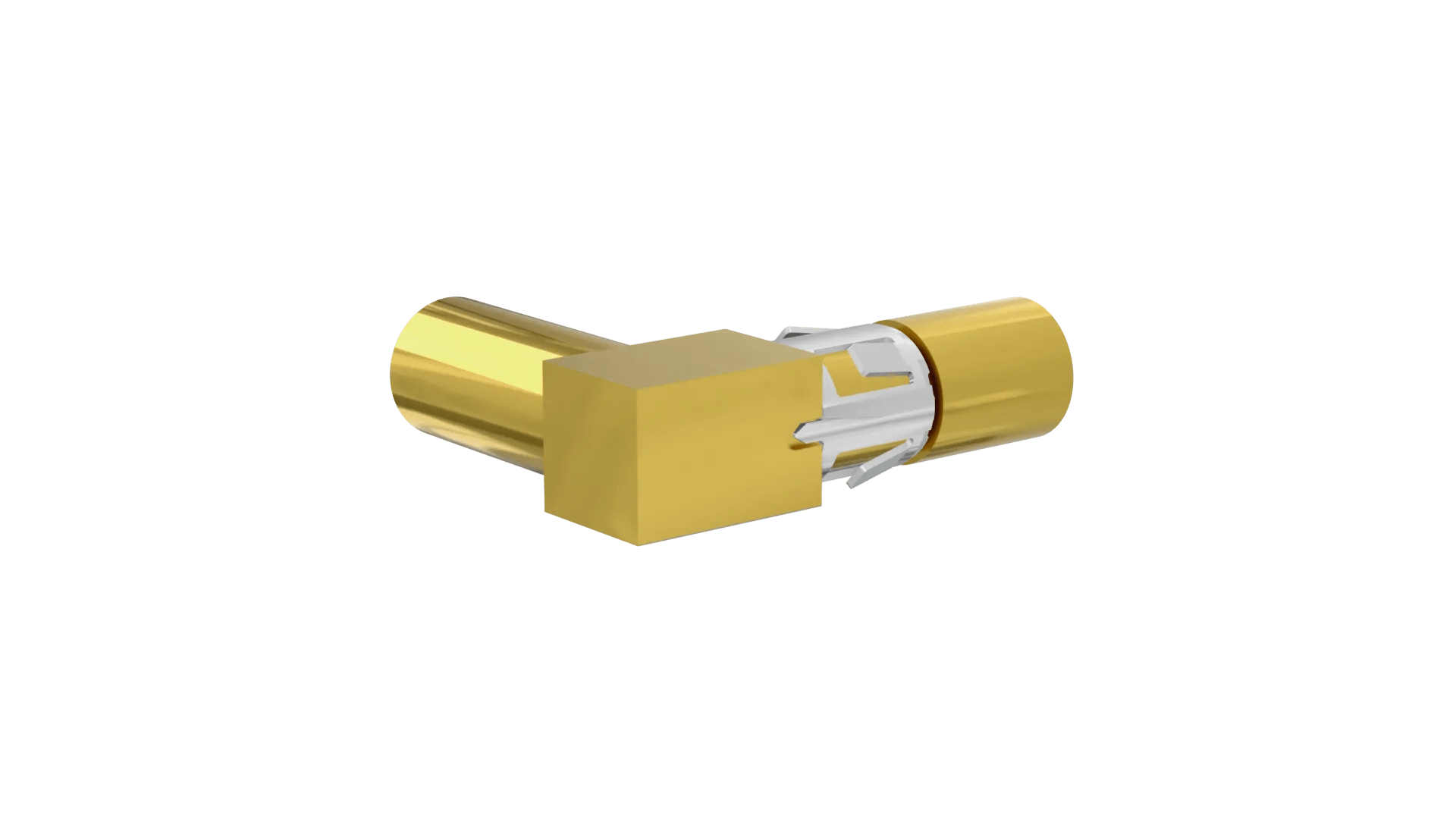

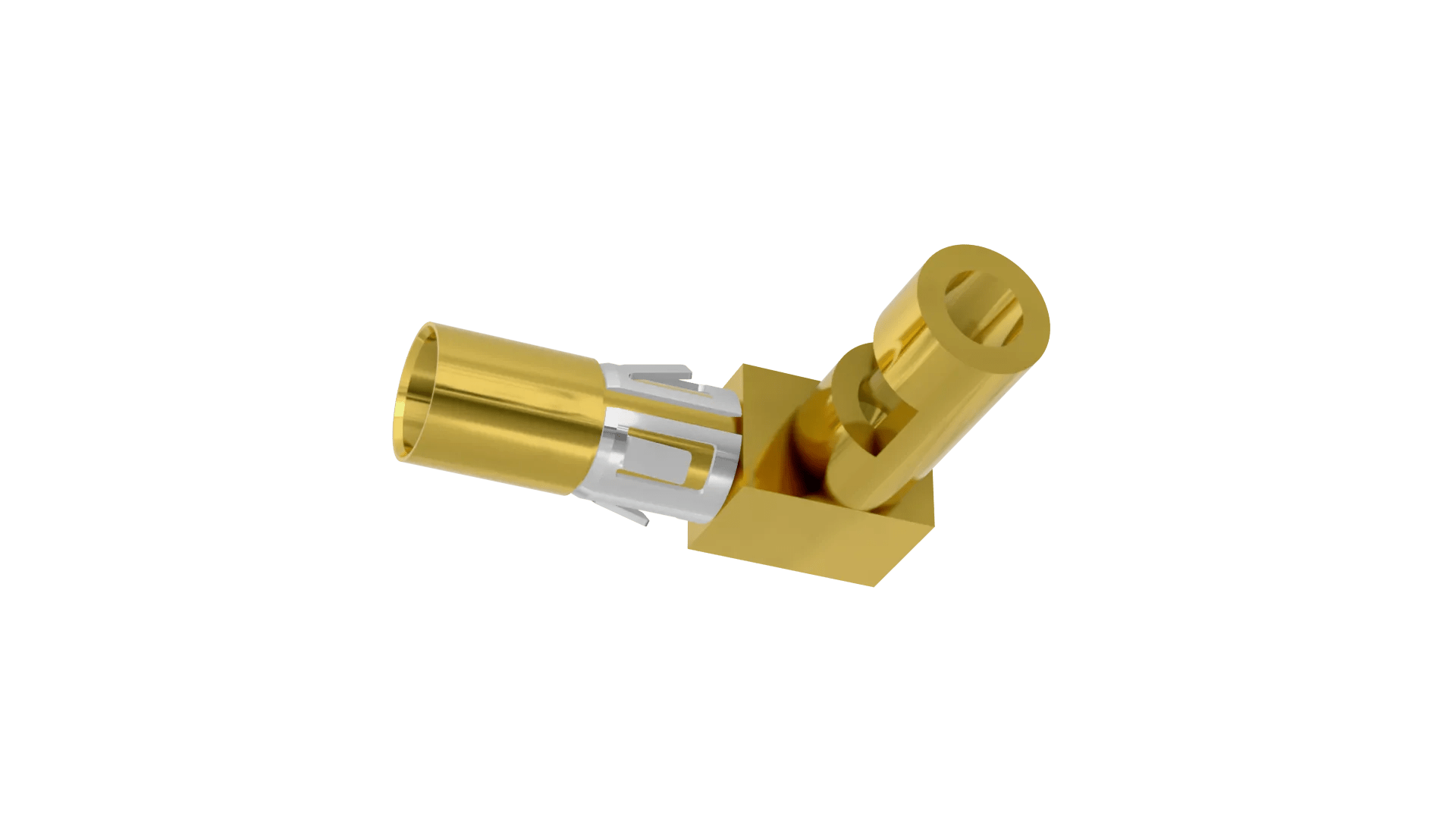

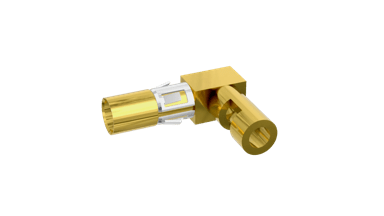

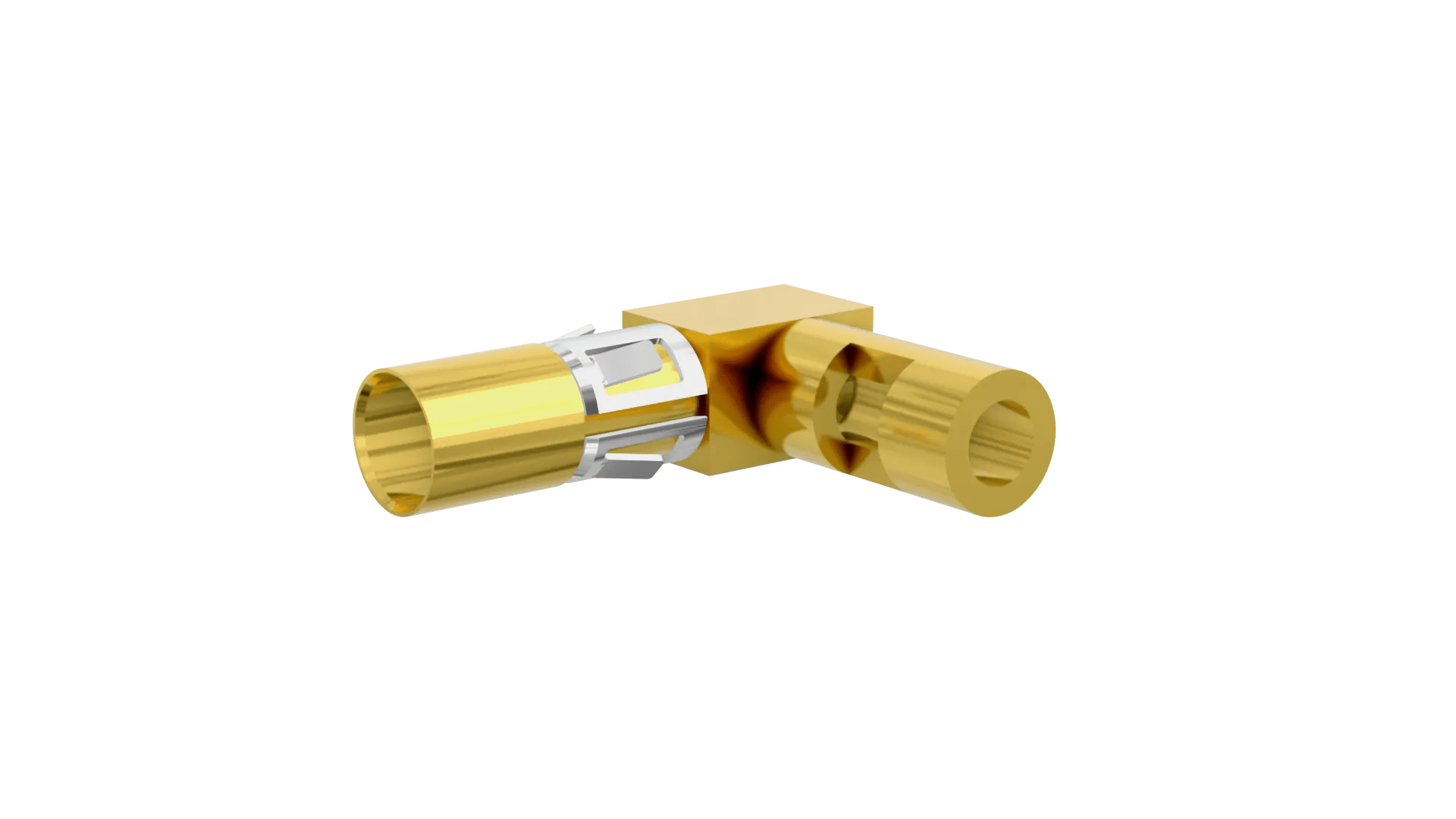

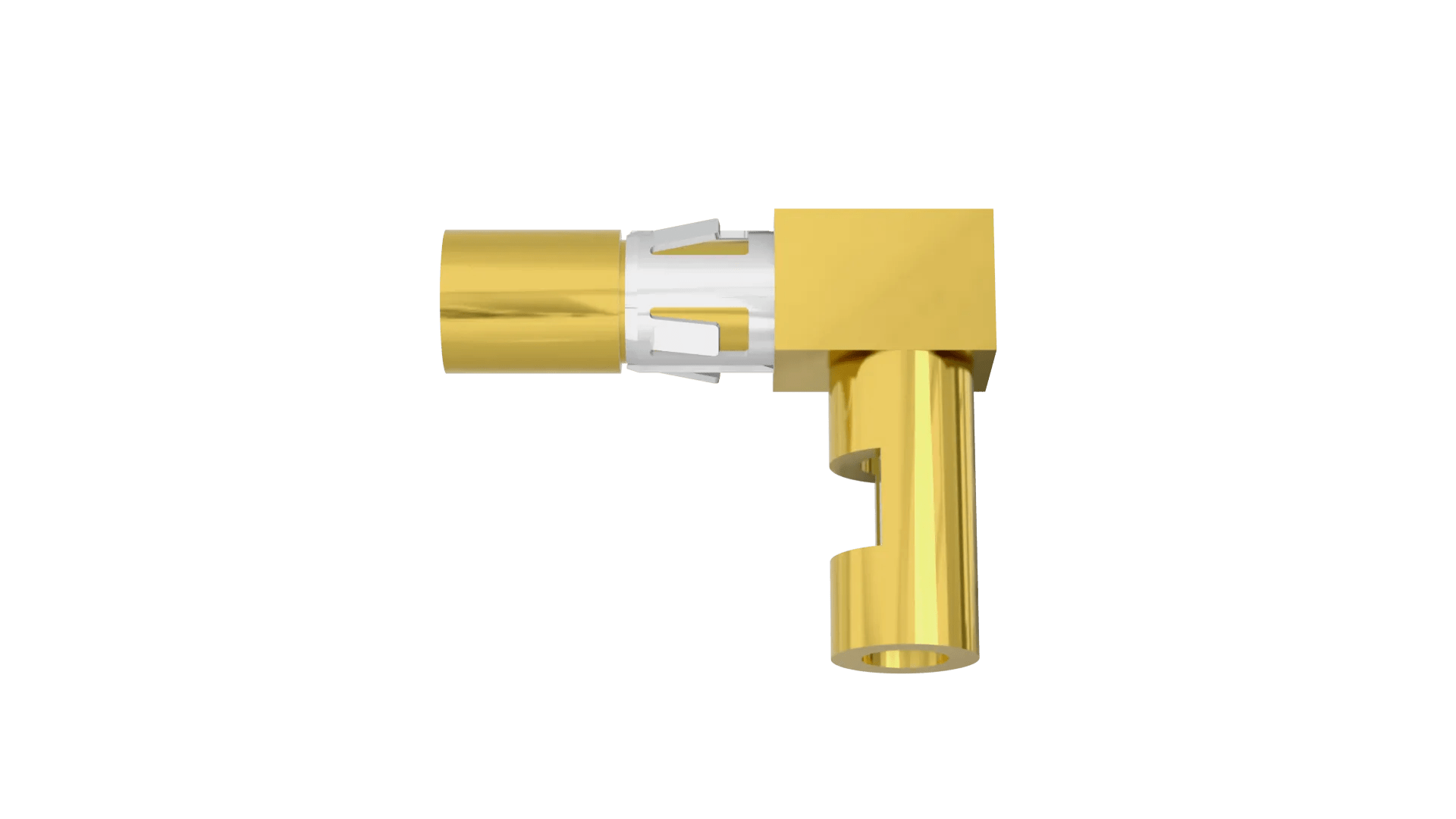

M80-32C

Female 16AWG Right-Angled Solder Power Contact

4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek

  • 90° Angled Solder, suitable for 16AWG cable.
  • Specified as 32C in a Mix-Tek connector part number. Use with any female Datamate Mix-Tek housing in a power/coax cavity.
  • Gold plating finish.
Add to Favorites

Technical Details

Specification

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Angled

Connection Type:

Cable (Solder)

Cable Conductor Size:

16AWG

Current Rating:

10A

Operating Temperature:

-55°C to +125°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Number of Special (Power or Coax) Contacts:

1

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.767g

Overall Dimensions (L x W x D) in mm:

11.20 x 3.00 x 9.00

Availability

Popular product
Distributor Location Quantity
Harwin
Global
Status4938
Mouser Electronics Inc
Global
Status70

*Stock available: contact distributor to purchase
