Active

M80-32B

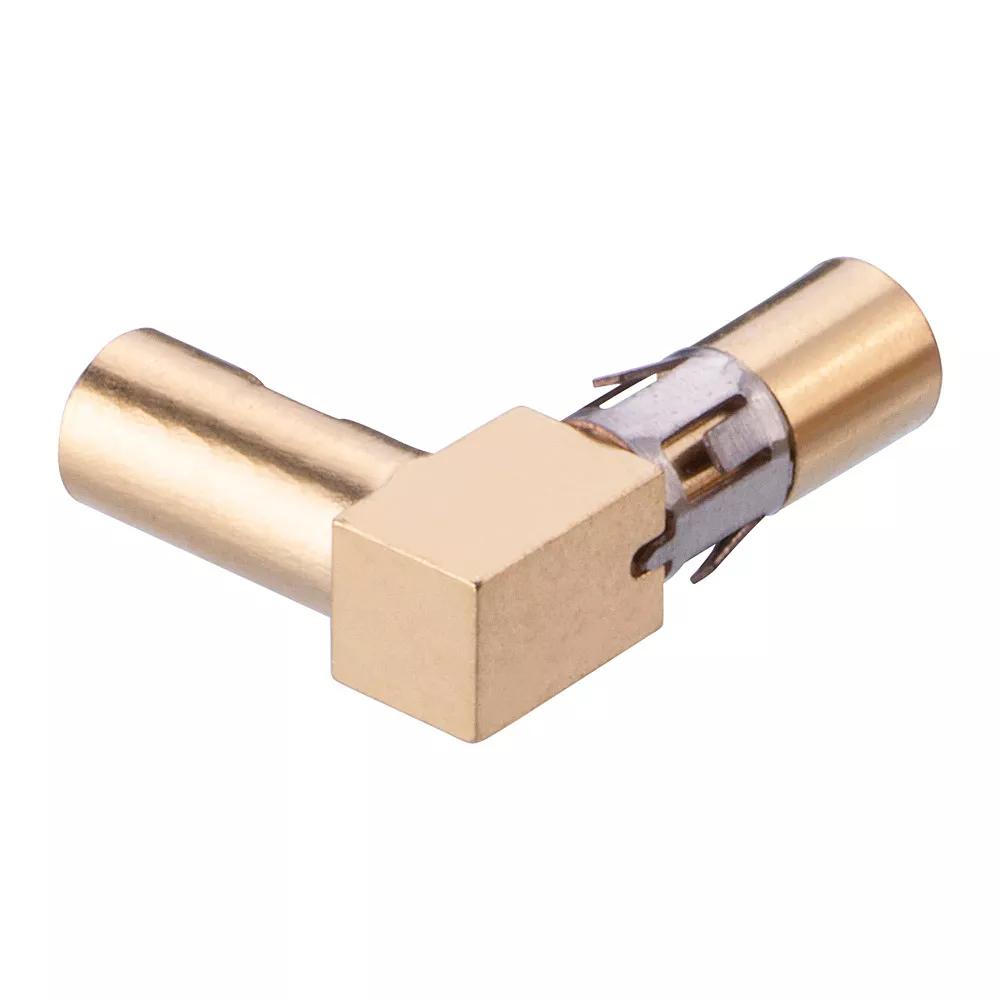

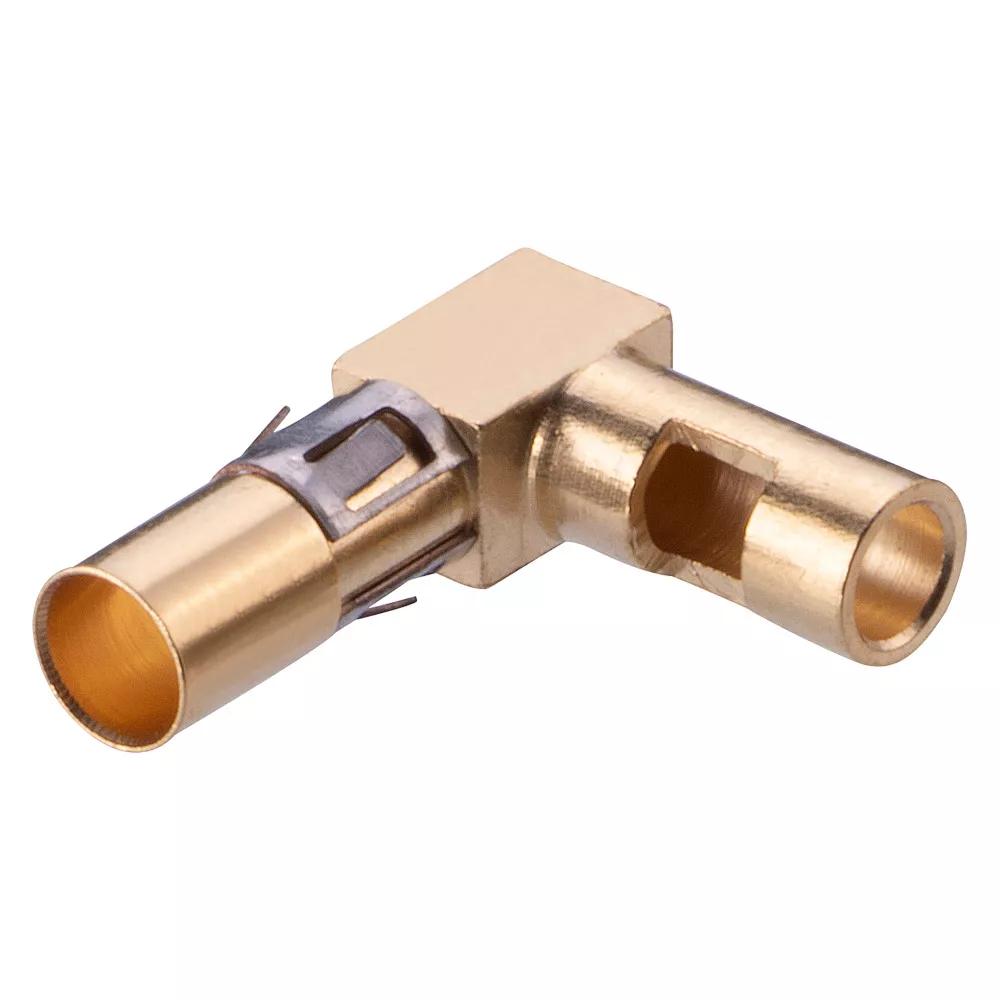

Female 14AWG Right-Angled Solder Power Contact

4.00mm Pitch High-Reliability Connector - Datamate Power

90° Angled Solder, suitable for 14AWG cable.
Specified as 32B in a Mix-Tek connector part number. Use with any female Datamate Mix-Tek housing in a power/coax cavity.
Gold finish on contact area and termination.

Request Samples

Availability

M80-32B - Female 14AWG Right-Angled Solder Power Contact

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Angled

Connection Type:

Cable (Solder)

Cable Conductor Size:

14AWG

Current Rating:

15A max per contact

Operating Temperature:

-55°C to +125°C

Polarising Features:

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Signal Contacts:

Number of Special (Power or Coax) Contacts:

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Individual Part Weight:

0.714g

Overall Dimensions (L x W x D) in mm:

11.20 x 3.00 x 9.00

Availability

154 in stock

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

PDF

Technical Drawing / Datasheet - M80-32A-32C.pdf

ZIP

M80-32B CAD Model (ZIP file containing STP and IGES)

Download

PDF

C005XX Component Specification - Datamate M80 and M83 Series (2.00mm, 4.00mm pitch High-Reliability)

PDF

Test Report HT020 - Datamate Mix-Tek Special Contacts - Environmental, Mechanical and Electrical

PDF

Test Report HT035 - Datamate Mix-Tek Power Connectors - Mechanical and Electrical

PDF

Test Report HT078 - Datamate Mix-Tek 20A Power testing

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for M80-32B product

PDF

Product Training Module - Overview Guide to the Datamate range, 2 & 4mm pitch High-Reliability

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

PDF

Product Training Module - Cable Products from Harwin

PDF

Catalog page - Datamate Mix-Tek Power & Coax Contacts

PDF

Catalog page - Datamate Mix-Tek Specification

PDF

Catalog page - Datamate Introduction

XLSX

Distributor part numbers for suitable cables for Datamate, Gecko, M300 & Kona

PDF

Product Summary - Datamate Mix-Tek Cable Housings

PDF

Plating thickness on Datamate special contacts (power and coax)
